Запчасти Case 160CK (167) - CYLINDER (07) - HYDRAULIC SYSTEM

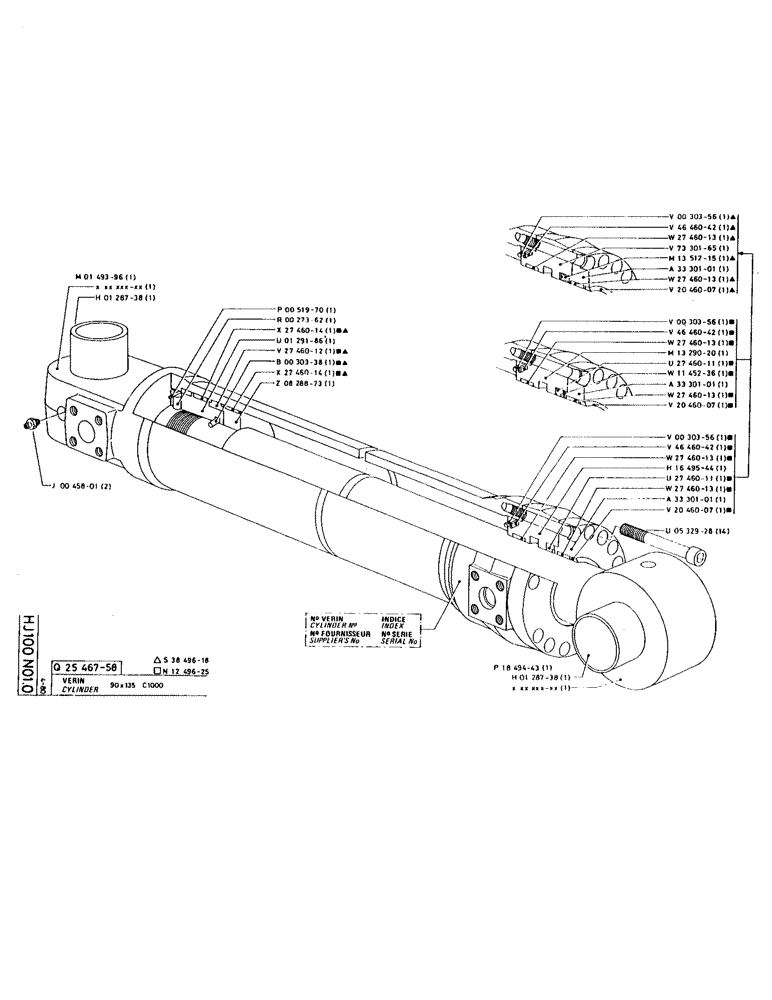

Схема запчастей Case 160CK - (167) - CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P149396

JACK BODY

1шт.

P128738

BUSHING

60 x 75 x 90

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P51970

SPECIAL RING

SPRING WASHER

1шт.

P27362

PIN

1шт.

P2746014

SEGMENT

forms part of a kit

1шт.

P129186

NUT

1шт.

P2746012

SEAL

forms part of a kit

1шт.

P30338

O-RING

SEAL, 5.33 x 69.22-80, forms part of a kit

1шт.

P2746014

SEGMENT

forms part of a kit

1шт.

P828873

WASHER

1шт.

P30356

O-RING

SEAL, 6.99 x 123.19-80, forms part of a kit, replaced by

1шт.

P4646042

BACK-UP RING

JOINT, 5.99 x 125.20-90, forms part of a kit, replaced by

1шт.

P2746013

SEGMENT

forms part of a kit, replaced by

1шт.

P7330165

CYLINDER END CAP

BEARING, replaced by

1шт.

P1351215

SEAL

forms part of a kit, replaced by

1шт.

P3330101

WASHER

replaced by

1шт.

P2746013

SEGMENT

forms part of a kit, replaced by

1шт.

P2046007

WIPER SEAL

SEAL, 90 x 100, forms part of a kit, replaced by

1шт.

P30356

O-RING

SEAL, 6.99 x 123.19-80, forms part of a kit

1шт.

P4646042

BACK-UP RING

JOINT, 5.99 x 125.20-90, forms part of a kit

1шт.

P2746013

SEGMENT

forms part of a kit

1шт.

P1329020

CYLINDER END CAP

BEARING

1шт.

P2746011

GASKET

SEAL, forms part of a kit

1шт.

P1145236

BACK-UP RING

JOINT, 90 x 110 x 3, forms part of a kit

1шт.

P3330101

WASHER

1шт.

P2746013

SEGMENT

forms part of a kit

1шт.

P2046007

WIPER SEAL

SEAL, 90 x 100, forms part of a kit

1шт.

P30356

O-RING

SEAL, 6.99 x 123.19-80, forms part of a kit

1шт.

P4646042

BACK-UP RING

JOINT, 5.99 x 125.20-90, forms part of a kit

1шт.

P2746013

SEGMENT

forms part of a kit

1шт.

P1649544

CYLINDER END CAP

BEARING

1шт.

P2746011

GASKET

SEAL, forms part of a kit

1шт.

P2746013

SEGMENT

forms part of a kit

1шт.

P3330101

WASHER

1шт.

P2046007

WIPER SEAL

SEAL, 90 x 100, forms part of a kit

1шт.

P532928

SCREW

/BOLT, M16 x 110

14шт.

P1849443

PISTON ROD

1шт.

P128738

BUSHING

60 x 75 x 90

1шт.

P3849618

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1249625

SEAL PACKAGE

SET OF SEALS, 90 x 135, kit number

1шт.

P2546758

CYLINDER ASSY.

CYLINDER, 90 x 135

1шт.

Выбрано товаров: 42
