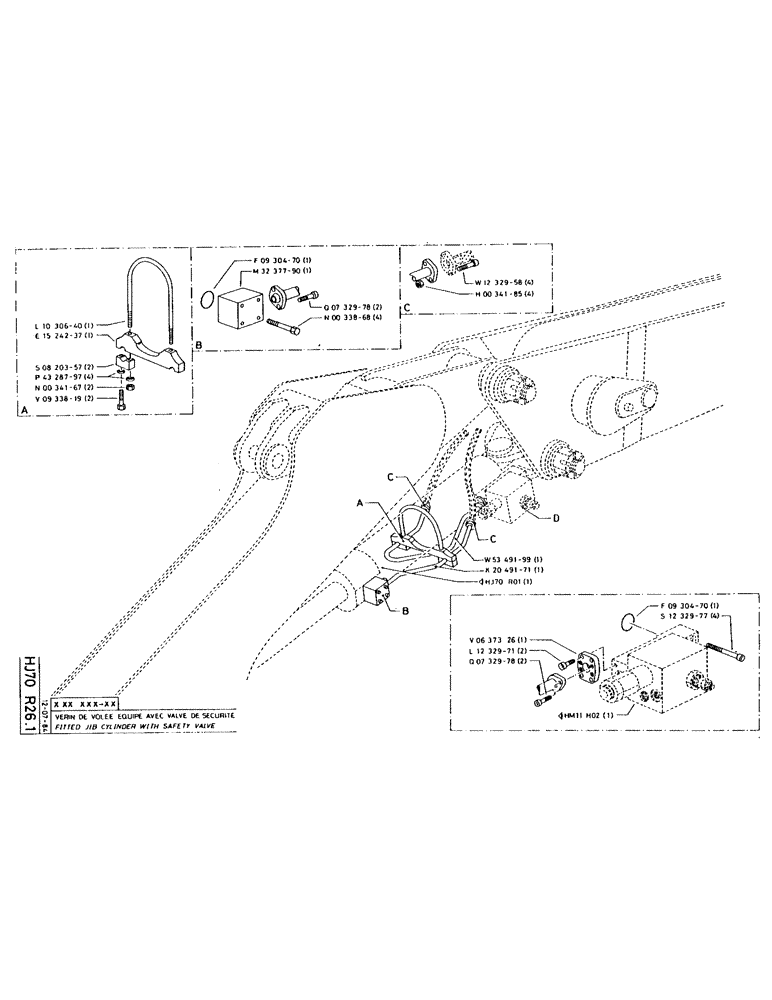

Запчасти Case 160CK (166) - FITTED JIB CYLINDER WITH SAFETY VALVE (07) - HYDRAULIC SYSTEM

P1030640

BRACKET, 204 x 178

1шт.

P1524237

SUPPORT

1шт.

P820357

SHIN

BRACKET

2шт.

P4328797

WASHER

12.5 x 8 x 25

4шт.

337475

NUT,M12, Cl 10

2шт.

P933819

SCREW

/BOLT, M12 x 55 x 55

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

1шт.

P3237790

SHIN

BRACKET

1шт.

P0732978Q

SCREW

2шт.

P33868

SCREW

/BOLT, M16 x 80

4шт.

P1232958

SCREW

/BOLT, M8 x 45

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

P5349199

PIPE

15 x 21

1шт.

P2049171

PIPE, 15 x 21

1шт.

P637326

RESTRICTOR

DN34 x 21

1шт.

P1232971

SCREW

/BOLT, M12 x 30

2шт.

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

1шт.

P1232977

SCREW

/BOLT, M16 x 90

4шт.
