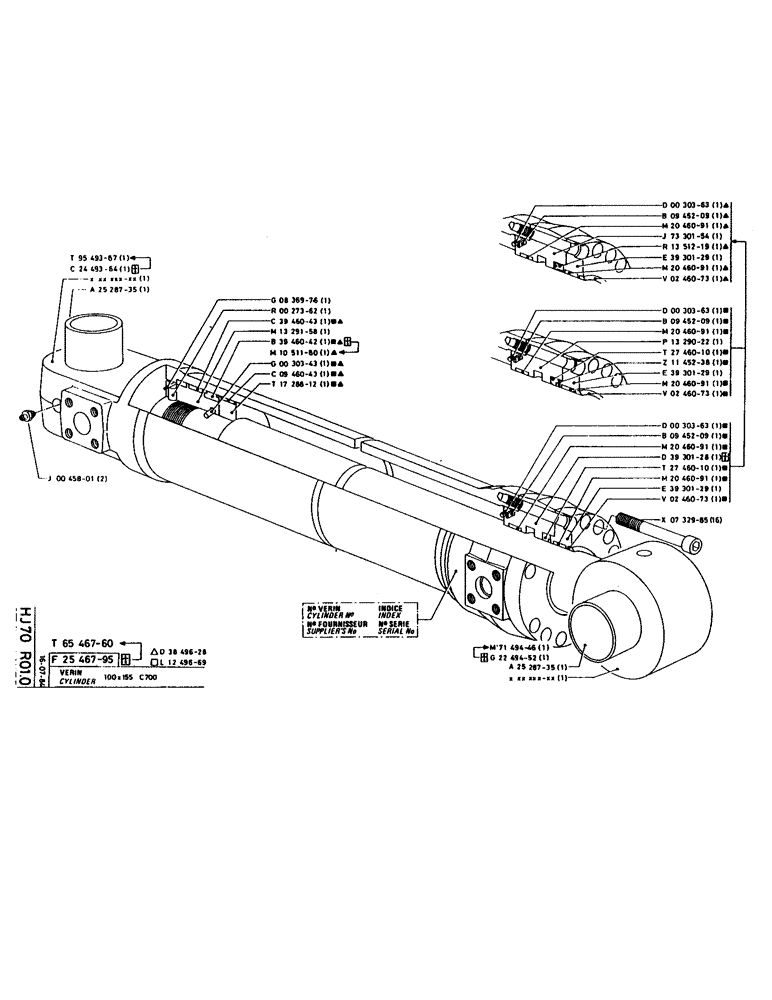

Запчасти Case 160CK (162) - CYLINDER (07) - HYDRAULIC SYSTEM

P9549387

CYLINDER

1шт.

P2449364

JACK BODY

no longer sold

1шт.

P2528735

BUSHING

65 x 85 x 100

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P836976

SPECIAL RING

SPRING WASHER

1шт.

P27362

PIN

1шт.

P3946043

SEGMENT

forms part of a kit

1шт.

P1329158

NUT

1шт.

P3946042

SEAL

forms part of a kit, no longer sold

1шт.

P1051180

SEAL

130/155 x 25.5, forms part of a kit

1шт.

P30343

O-RING

SEAL, 5.33 x 85.09-80, forms part of a kit

1шт.

P1728812

WASHER

forms part of a kit

1шт.

P30363

O-RING

SEAL, 6.99 x 145.42-80, forms part of a kit, replaced by

1шт.

P945209

BACK-UP RING

JOINT, 5.99 x 144.17-90, forms part of a kit, replaced by

1шт.

P2046091

SEGMENT

forms part of a kit, replaced by

1шт.

P7330154

CYLINDER END CAP

BEARING, replaced by

1шт.

P1351219

SEAL

100 x 120 x 13.5, forms part of a kit, replaced by

1шт.

P3930129

WASHER

replaced by

1шт.

P2046091

SEGMENT

forms part of a kit, replaced by

1шт.

P246073

WIPER SEAL

SEAL, 100 x 110, forms part of a kit, replaced by

1шт.

P30363

O-RING

SEAL, 6.99 x 145.42-80, forms part of a kit

1шт.

P945209

BACK-UP RING

JOINT, 5.99 x 144.17-90, forms part of a kit

1шт.

P2046091

SEGMENT

forms part of a kit

1шт.

P1329022

CYLINDER END CAP

BEARING

1шт.

P2746010

GASKET

SEAL, forms part of a kit

1шт.

P1145238

BACK-UP RING

JOINT, 100 x 120 x 3, forms part of a kit

1шт.

P3930129

WASHER

1шт.

P2046091

SEGMENT

forms part of a kit

1шт.

P246073

WIPER SEAL

SEAL, 100 x 110, forms part of a kit

1шт.

P30363

O-RING

SEAL, 6.99 x 145.42-80, forms part of a kit

1шт.

P945209

BACK-UP RING

JOINT, 5.99 x 144.17-90, forms part of a kit

1шт.

P2046091

SEGMENT

forms part of a kit

1шт.

P3930128

CYLINDER END CAP

BEARING, no longer sold

1шт.

P2746010

GASKET

SEAL, forms part of a kit

1шт.

P2046091

SEGMENT

forms part of a kit

1шт.

P3930129

WASHER

1шт.

P246073

WIPER SEAL

SEAL, 100 x 110, forms part of a kit

1шт.

P732985

SCREW

/BOLT, M18 x 130

16шт.

P7149446

PISTON ROD

ROD

1шт.

P2249452

PISTON ROD, no longer sold

1шт.

P2528735

BUSHING

65 x 85 x 100

1шт.

P3849628

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1249669

SEAL PACKAGE

SET OF SEALS, 100 x 155, kit number

1шт.

P6546760

CYLINDER ASSY.

CYLINDER

1шт.

P2546795

CYLINDER ASSY.

CYLINDER, 100 x 155, no longer sold

1шт.
