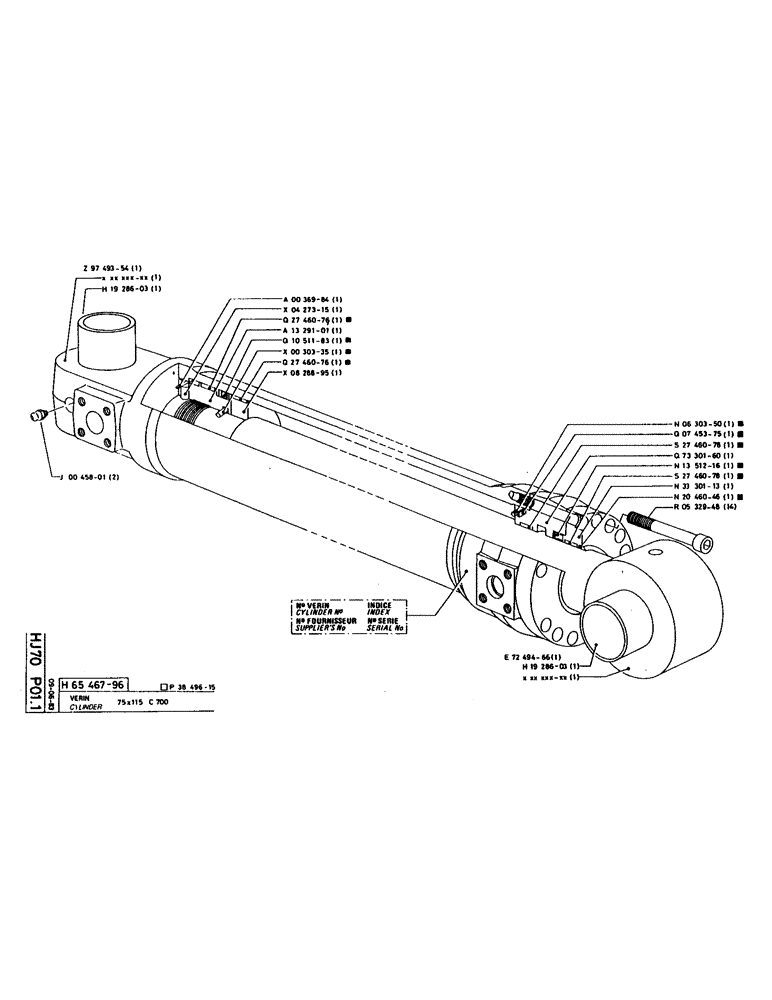

Запчасти Case 160CK (160) - CYLINDER (07) - HYDRAULIC SYSTEM

P9749354

JACK BODY

CYLINDER

1шт.

P1928603

BUSHING

60 x 75 x 90

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P36984

SPECIAL RING

RING

1шт.

P427315

PIN

1шт.

P2746076

SEGMENT

forms part of a kit

1шт.

P1329101

NUT

1шт.

P1051183

SEAL

115 x 90 x 22.5, forms part of a kit

1шт.

P30335

O-RING

SEAL, 5.33 x 59.69-80, forms part of a kit

1шт.

P2746076

SEGMENT

forms part of a kit

1шт.

P828895

WASHER

1шт.

P630350

O-RING

SEAL, 5.33 x 107.32-80, forms part of a kit

1шт.

P745375

BACK-UP RING

JOINT, 4.65 x 108.66-90, forms part of a kit

1шт.

P2746078

SEGMENT

forms part of a kit

1шт.

P7330160

CYLINDER END CAP

BEARING

1шт.

P1351216

SEAL

forms part of a kit

1шт.

P2746078

SEGMENT

forms part of a kit

1шт.

P3330113

WASHER

1шт.

P2046046

WIPER SEAL

SEAL, 75 x 85, forms part of a kit

1шт.

P532948

SCREW

/BOLT, M14 x 100

14шт.

P7249466

PISTON ROD

ROD

1шт.

P1928603

BUSHING

60 x 75 x 90

1шт.

P3849615

KIT

number

1шт.

P6546796

CYLINDER ASSY.

CYLINDER, 75 x 115

1шт.
