Запчасти Case 160CK (156) - CYLINDER (07) - HYDRAULIC SYSTEM

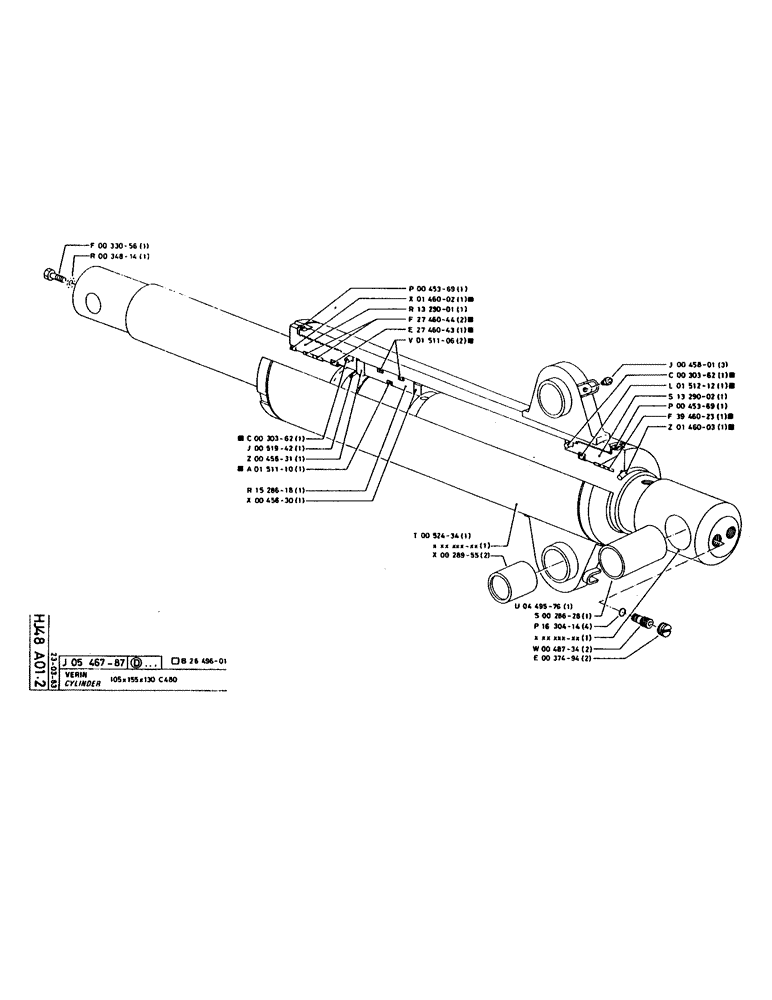

Схема запчастей Case 160CK - (156) - CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P33056

SCREW

/BOLT, M10 x 28

1шт.

P34814

WASHER

1шт.

P30362

O-RING

SEAL, 6.99 x 142.24-80, forms part of a kit

1шт.

P51942

RING

1шт.

P45631

LOCK WASHER

1шт.

P151110

SPECIAL MAT. SEAL

SEAL, forms part of a kit

1шт.

P1528618

BRONZE BUSHING

BRONZE BUSH

1шт.

P45630

LOCK WASHER

1шт.

P45369

WASHER

1шт.

P146002

WIPER SEAL

SEAL, 105 x 115, forms part of a kit

1шт.

P1329001

CYLINDER END CAP

BEARING

1шт.

P2746044

SEGMENT

forms part of a kit

2шт.

P2746043

SEAL

forms part of a kit

1шт.

P151106

SEAL

forms part of a kit

2шт.

P52434

JACK BODY

1шт.

P28955

BUSHING, 55 x 75 x 65

2шт.

P449576

PISTON ROD

1шт.

P28628

BRONZE BUSH, 55 x 75 x 100

1шт.

P1630414

O-RING

SEAL, 2.62 x 10.77-80

4шт.

P48734

PLUG

2шт.

P37494

PLUG

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

3шт.

P30362

O-RING

SEAL, 6.99 x 142.24-80, forms part of a kit

1шт.

P151212

SEAL

forms part of a kit

1шт.

P1329002

CYLINDER END CAP

BEARING

1шт.

P45369

WASHER

1шт.

P3946023

SEGMENT

forms part of a kit

1шт.

P146003

WIPER SEAL

SEAL, 130 x 145, forms part of a kit

1шт.

P2649601

SEAL PACKAGE

SET OF SEALS, 105 x 155 x 130, kit number

1шт.

P546787

CYLINDER ASSY.

CYLINDER, 105 x 155 x 130

1шт.

Выбрано товаров: 30
