Запчасти Case 160CK (154) - CYLINDER (07) - HYDRAULIC SYSTEM

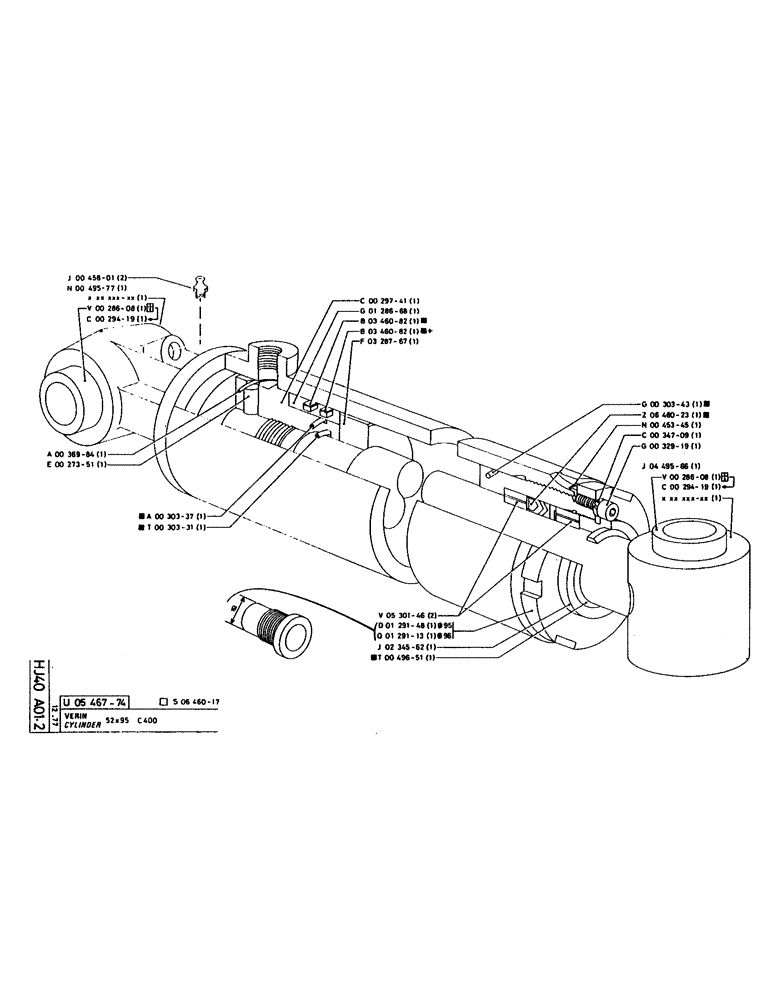

Схема запчастей Case 160CK - (154) - CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P49577

JACK BODY

1шт.

P28608

BRONZE BUSHING

BRONZE BUSH, 40 x 50 x 80, no longer sold

1шт.

P29419

BUSHING

40 x 50 x 80

1шт.

P36984

SPECIAL RING

RING

1шт.

P27351

PIN

10 x 24

1шт.

P30337

O-RING

SEAL, 5.33 x 66.04-80, forms part of a kit

1шт.

P30331

O-RING

SEAL, 5.33 x 46.99-80, forms part of a kit

1шт.

P29741

NUT

1шт.

P128668

BRONZE BUSHING

BRONZE BUSH

1шт.

P346082

SPECIAL MAT. SEAL

SEAL, forms part of a kit

1шт.

P346082

SPECIAL MAT. SEAL

SEAL, forms part of a kit, part added on new model

1шт.

P328767

WASHER

1шт.

P530146

BEARING LINER

BEARING

2шт.

P129148

CYLINDER END CAP

BEARING

1шт.

P129113

CYLINDER END CAP

BEARING

1шт.

P234562

NUT

1шт.

P49651

WIPER SEAL

SEAL, 52 x 62, forms part of a kit

1шт.

P30343

O-RING

SEAL, 5.33 x 85.09-80, forms part of a kit

1шт.

P646023

LINING

S, 52 x 72, forms part of a kit

1шт.

P45345

WASHER

100 x 115 x 1

1шт.

P34709

WASHER

1шт.

P32919

SCREW

/BOLT, M8 x 10

1шт.

P449566

PISTON ROD

1шт.

P28608

BRONZE BUSHING

BRONZE BUSH, 40 x 50 x 80, no longer sold

1шт.

P29419

BUSHING

40 x 50 x 80

1шт.

P646017

SEAL PACKAGE

SET OF SEALS, 52 x 95, kit number

1шт.

P546774

CYLINDER

52 x 95

1шт.

Выбрано товаров: 28
