Запчасти Case 160CK (152) - CYLINDER (07) - HYDRAULIC SYSTEM

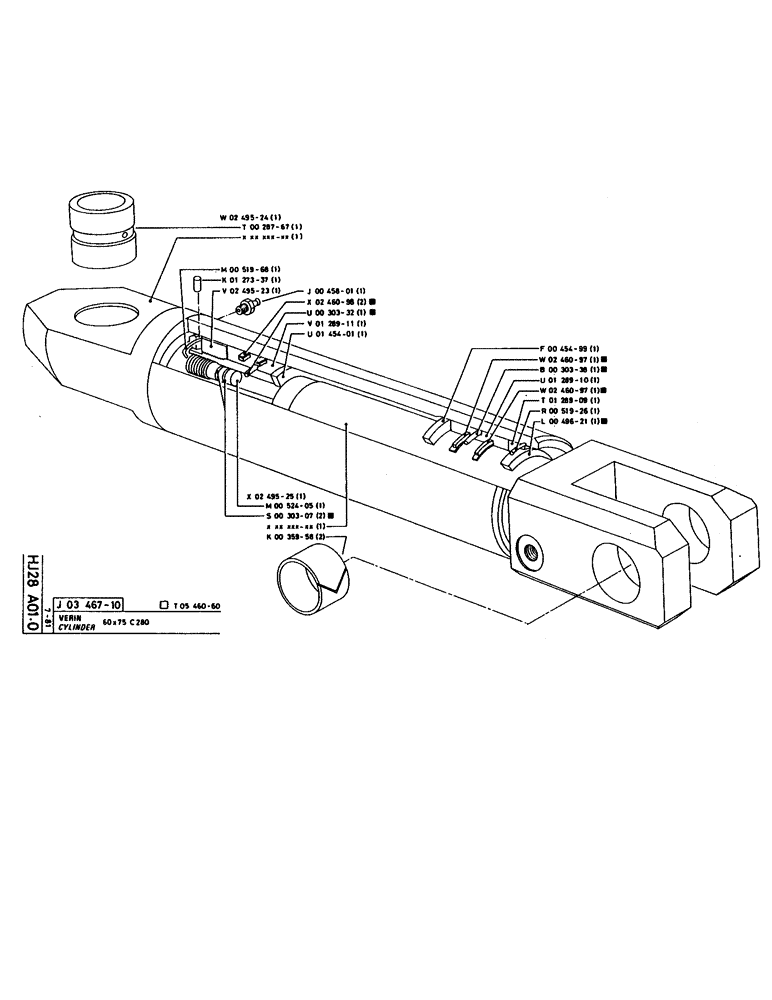

Схема запчастей Case 160CK - (152) - CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P249524

JACK BODY

1шт.

P28767

BUSHING

40 x 55 x 45

1шт.

P51968

SPECIAL MAT. SEAL

SPRING WASHER

1шт.

P127337

LARGE PIN

PIN

1шт.

P249523

NUT

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

1шт.

P246098

SPECIAL MAT. SEAL

SEAL, forms part of a kit

2шт.

P30332

O-RING

SEAL, 5.33 x 50.17-80, forms part of a kit

1шт.

P128911

BRONZE BUSHING

BRONZE BUSH, 52 x 75 x 50

1шт.

P145401

WASHER

1шт.

P249525

PISTON ROD

1шт.

P52405

PLUG

1шт.

P30307

O-RING

SEAL, 1.9 x 8.9, forms part of a kit

2шт.

P35958

BUSHING

40 x 50 x 25

2шт.

P45499

WASHER

1шт.

P246097

SPECIAL MAT. SEAL

SEAL, forms part of a kit

1шт.

P30338

O-RING

SEAL, 5.33 x 69.22-80, forms part of a kit

1шт.

P128910

BRONZE BUSHING

BRONZE BUSH, 60 x 80 x 50

1шт.

P246097

SPECIAL MAT. SEAL

SEAL, forms part of a kit

1шт.

P128909

COLLAR

SAFETY SET COLL

1шт.

P51926

SPECIAL RING

RING

1шт.

P49621

WIPER SEAL

SEAL, 60 x 70 x 11, forms part of a kit

1шт.

P546060

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P346710

CYLINDER ASSY.

CYLINDER, 60 x 75

1шт.

Выбрано товаров: 24
