Запчасти Case 160CK (147) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

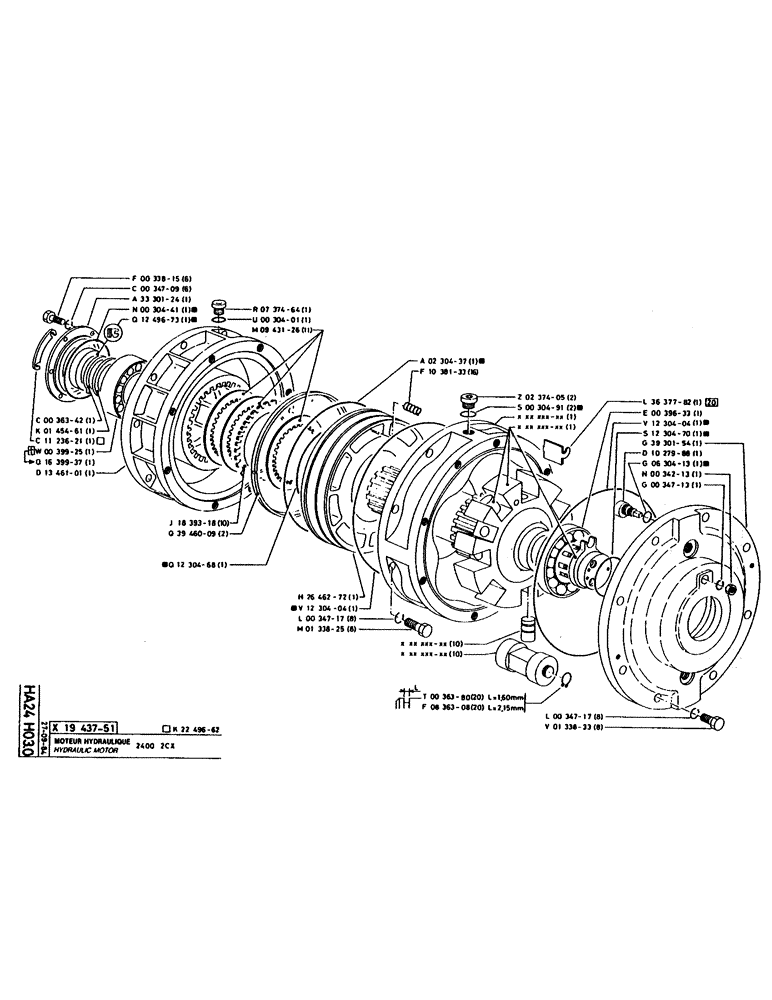

Схема запчастей Case 160CK - (147) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

6шт.

P34709

WASHER

6шт.

P3330124

CAP

COVER

1шт.

P30441

O-RING

3 x 190, forms part of a kit

1шт.

P1249673

ASSEMBLY

forms part of a kit

1шт.

P36342

RING, SNAP

LOCKING RING

1шт.

P145461

WASHER

1шт.

P1123621

SHIM KIT

SET OF SHIMS, kit number

1шт.

P39925

BEARING

no longer sold

1шт.

P1639937

BEARING

1шт.

P1346101

SLEWING RING

1шт.

P737464

PLUG

1шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

1шт.

P943126

DISC

1шт.

P1839318

DISC

10шт.

P3946009

SEGMENT

2шт.

P1230468

O-RING

6.99 x 285.10, forms part of a kit

1шт.

P230437

O-RING

SEAL, 6.99 x 405.26-80, forms part of a kit

1шт.

P1038133

COMPRESSION SPRING

COMPRESSION SPR

16шт.

P2646272

PISTON

1шт.

P1230404

O-RING

4 x 489, forms part of a kit

1шт.

P34717

WASHER, LOCK

WASHER

8шт.

P133825

SCREW

/BOLT, M20 x 60

8шт.

P237405

PLUG

3/4 x 12

2шт.

P30491

O-RING

2.5 x 28, forms part of a kit

2шт.

P36380

RING, SNAP

LOCKING RING

20шт.

P836308

RING, SNAP

LOCKING RING

20шт.

P3637782

KIT

SET, kit number

1шт.

P39633

BEARING

1шт.

P1230404

O-RING

4 x 489, forms part of a kit

1шт.

P1230470

O-RING,10mm Thk x 114mm ID, 70 Duro

10 x 114-60, forms part of a kit

1шт.

P3930154

COVER

PLATE

1шт.

P1027988

FINGER

DOWEL

1шт.

P630413

O-RING

SEAL, 2.62 x 9.19-80, forms part of a kit

1шт.

P34213

NUT

1шт.

P34713

WASHER

1шт.

P34717

WASHER, LOCK

WASHER

8шт.

P133833

SCREW

/BOLT, M20 x 40

8шт.

P2249662

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1943751

MOTOR, 2400-2 x S2 x 110

1шт.

REFER TO ILLUSTRATION PAGE, REFER TO PART NUMBER S0030491. THE SECOND SET OF XXX IS PART P30462212.

1шт.

REFER TO ILLUSTRATION PAGE, REFER TO PART NUMBER T0036380. THE XXX ABOVE THAT PART. THE ROLLER PORTION OF THAT ASSY IS AVAILABLE. PART IS P8246221

1шт.

Выбрано товаров: 42
