Запчасти Case 160CK (144) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

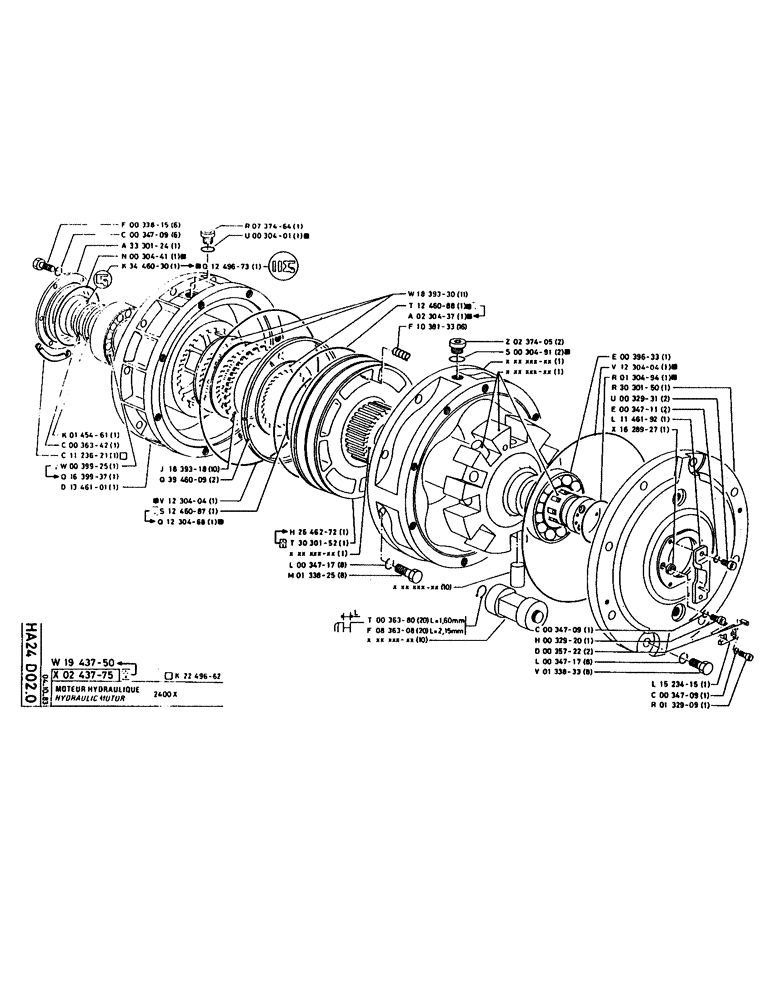

Схема запчастей Case 160CK - (144) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

6шт.

P34709

WASHER

6шт.

P3330124

CAP

COVER

1шт.

P30441

O-RING

3 x 190, forms part of a kit

1шт.

P3446030

OIL SEAL

SEAL RING, 140 x 110 x 12

1шт.

P1249673

ASSEMBLY

1шт.

P737464

PLUG

1шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5, forms part of a kit

1шт.

P145461

WASHER

1шт.

P36342

RING, SNAP

LOCKING RING

1шт.

P1123621

SHIM KIT

SET OF SHIMS, kit number

1шт.

P39925

BEARING

no longer sold

1шт.

P1639937

BEARING

1шт.

P1346101

SLEWING RING

1шт.

P1839318

DISC

10шт.

P3946009

SEGMENT

2шт.

P1230404

O-RING

4 x 489, forms part of a kit

1шт.

P1246087

SEAL

6.99 x 284, no longer sold

1шт.

P1230468

O-RING

6.99 x 285.10, forms part of a kit

1шт.

P1839330

DISC

1шт.

P1246088

SEAL

6.99 x 405.26, forms part of a kit, no longer sold

1шт.

P230437

O-RING

SEAL, 6.99 x 405.26-80, forms part of a kit

1шт.

P1038133

COMPRESSION SPRING

16шт.

P2646272

PISTON

1шт.

P3030152

PISTON, no longer sold

1шт.

P34717

WASHER, LOCK

WASHER

8шт.

P133825

SCREW

/BOLT, M20 x 60

8шт.

P237405

PLUG

3/4 x 12

2шт.

P30491

O-RING

2.5 x 28, forms part of a kit

2шт.

P36380

RING, SNAP

LOCKING RING

20шт.

P836308

RING, SNAP

LOCKING RING

20шт.

P39633

BEARING

1шт.

P1230404

O-RING

4 x 489, forms part of a kit

1шт.

P130494

O-RING

10 x 120, forms part of a kit

1шт.

P3030150

COVER PLATE

1шт.

P32931

SCREW

/BOLT, M10 x 20

2шт.

P34711

WASHER

2шт.

P1146192

GUIDE

1шт.

P1628927

BUSHING

1шт.

P34709

WASHER

1шт.

P32920

SCREW

/BOLT, M8 x 16

1шт.

P35722

SPLIT PIN/SAFETY PIN

SPLIT PIN, 8 x 30

2шт.

P34717

WASHER, LOCK

WASHER

8шт.

P133833

SCREW

/BOLT, M20 x 40

8шт.

P1523415

BRACKET

1шт.

P34709

WASHER

1шт.

P132909

SCREW

/BOLT, M8 x 35

1шт.

P2249662

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1943750

MOTOR

2400 x S2 x 110

1шт.

P243775

HYD. MOTOR, no longer sold

1шт.

Выбрано товаров: 50
