Запчасти Case 160CK (139) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

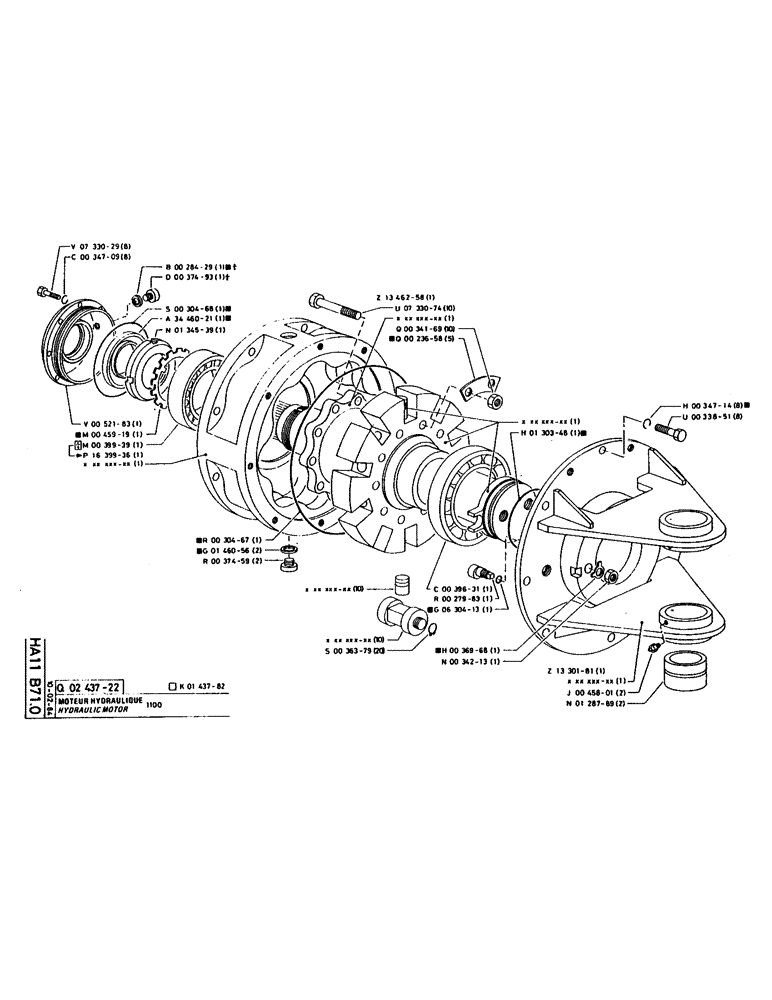

Схема запчастей Case 160CK - (139) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P733029

SCREW

/BOLT, M8 x 30 x 30

8шт.

P34709

WASHER

8шт.

P52183

CAP

COVER

1шт.

P45919

SPECIAL WASHER

NUT LOCK, forms part of a kit

1шт.

P39939

BEARING

no longer sold

1шт.

P1639936

BEARING

1шт.

P28429

COMPOSITE SEAL

METAL PLASTICS, forms part of a kit, no longer exists on new model

1шт.

P37493

PLUG, no longer exists on new model

1шт.

P30468

O-RING

2 x 160, forms part of a kit

1шт.

P3446021

OIL SEAL

SEAL RING, 120 x 90 x 13, forms part of a kit

1шт.

P134539

SLOTTED NUT

M95 x 2

1шт.

P30467

O-RING

2.5 x 366, forms part of a kit

1шт.

P146056

COMPOSITE SEAL

METAL PLASTICS, forms part of a kit

2шт.

P37459

PLUG

D27 x 1.5

2шт.

P1346258

SHAFT

1шт.

P733074

SCREW/BOLT, M16 x 97

10шт.

P34169

NUT

10шт.

P23658

BRAKE

LOCKING, forms part of a kit

5шт.

P36379

RING, SNAP

LOCKING RING

20шт.

P130348

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

SEAL, 5.33 x 100.97-60, forms part of a kit

1шт.

P39631

BEARING

1шт.

P27983

FINGER

DOWEL

1шт.

P630413

O-RING

SEAL, 2.62 x 9.19-80, forms part of a kit

1шт.

P36968

BRAKE

LOCKING, forms part of a kit

1шт.

P34213

NUT

1шт.

P34714

WASHER, LOCK

WASHER, forms part of a kit

8шт.

P33851

SCREW

/BOLT, M14 x 35

8шт.

P1330181

COVER

PLATE

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P128789

BUSHING

60 x 75 x 65

2шт.

P143782

SPARE PART SET

kit number

1шт.

P243722

MOTOR, HYDRAULIC

HYD. MOTOR

1шт.

Выбрано товаров: 32
