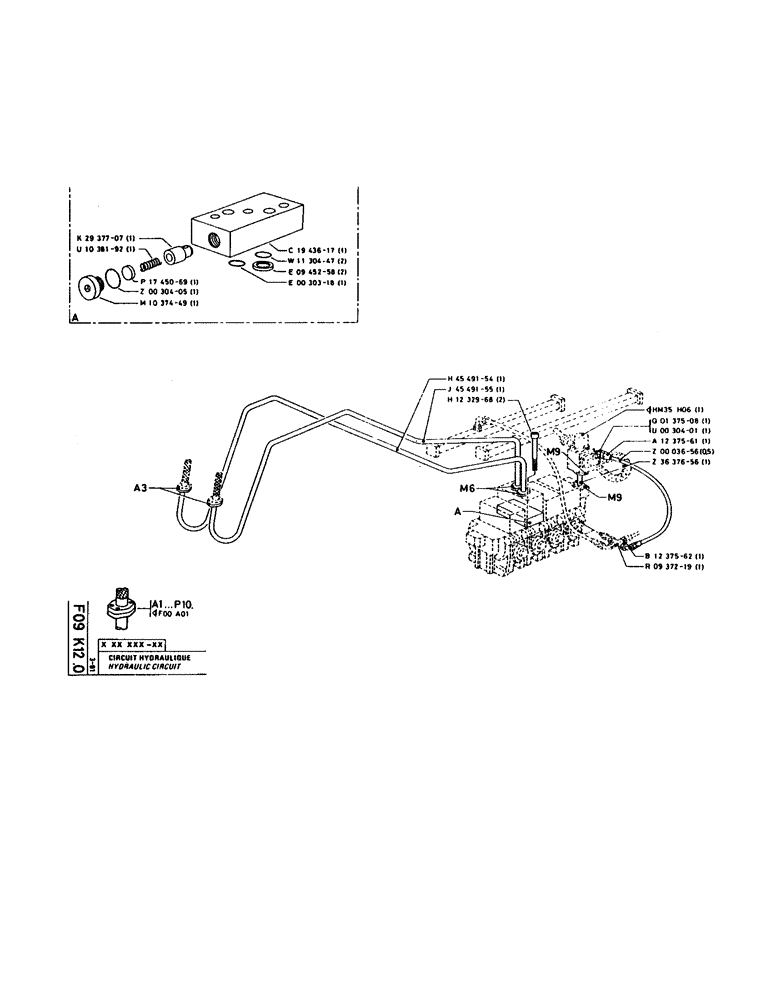

Запчасти Case 160CK (134) - HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

P2937707

VALVE POPPET

VALVE

1шт.

P1038192

SPRING COMPRESSOR

COMPRESSION SPRING

1шт.

P1745069

DISC

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

1шт.

P1037449

PLUG

M30 x 1.5

1шт.

P1943617

BODY

1шт.

P1130447

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL, 3.53 x 31.34-80

2шт.

P945258

BACK-UP RING

BUSHING

2шт.

P30318

O-RING

SEAL, 3.6 x 23

1шт.

P4549154

PIPE

24 x 34

1шт.

P4549155

PIPE

24 x 34

1шт.

P1232968

SCREW

/BOLT, M20 x 120

2шт.

P137508

UNION

part number of union

1шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5, part number of seal

1шт.

P1237561

END FITTING

1шт.

P3656

PIPE

1шт.

P3637656

PIPE

33 x 42

1шт.

P1237562

END FITTING

1шт.

P937219

CROSS

-UNION

1шт.
