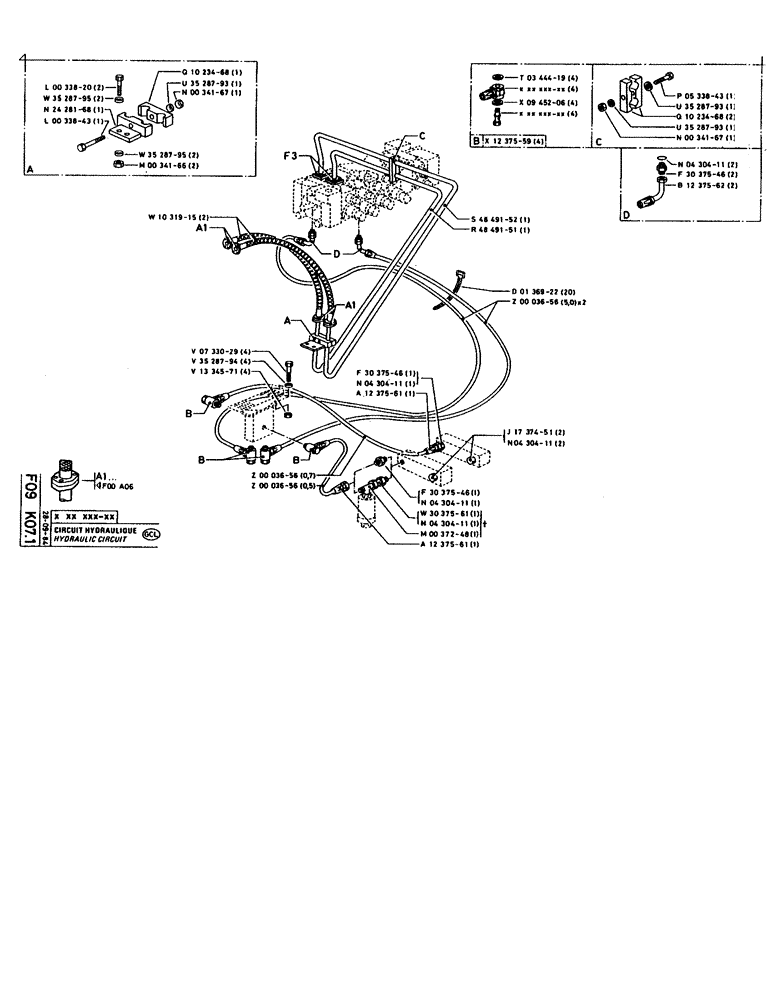

Запчасти Case 160CK (131) - HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

P33820

SCREW

/BOLT, M10 x 45

2шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

P2428168

SUPPORT

1шт.

P33843

SCREW

/BOLT, M12 x 70

1шт.

P1023468

SHIN

BRACKET

1шт.

P3528793

WASHER

12.5 x 8 x 30

1шт.

337475

NUT,M12, Cl 10

1шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P344419

WASHER, SEALING

SEAL WASHER, 13.2 x 17.9 x 1.5

4шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

4шт.

P1237559

END FITTING

4шт.

43148

SUPPORT

SCREW/BOLT, M12 x 80

1шт.

P3528793

WASHER

12.5 x 8 x 30

1шт.

P1023468

SHIN

BRACKET

2шт.

P3528793

WASHER

12.5 x 8 x 30

1шт.

337475

NUT,M12, Cl 10

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P3037546

UNION

2шт.

P1237562

END FITTING

2шт.

P1031915

HOSE

2шт.

P733029

SCREW

/BOLT, M8 x 30 x 30

4шт.

P3528794

WASHER

8.25 x 6 x 20

4шт.

P1334571

NUT

4шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P3037546

UNION

part number of union

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, part number of seal

1шт.

P1237561

END FITTING

1шт.

P4849152

PIPE

15 x 21

1шт.

P4849151

PIPE

15 x 21

1шт.

P136922

CLAMP

COLLAR

20шт.

P3656

PIPE

1шт.

P1737451

PLUG

part number of union

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, part number of seal

2шт.

P3037546

UNION

part number of union

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, part number of seal

1шт.

P3037561

FITTING

CONNECTION, no longer exists on new model, part number of union

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, no longer exists on new model, part number of seal

1шт.

P37248

TEE

T PIECE, DN10 x 17 x 10, no longer exists on new model

1шт.

P1237561

END FITTING

1шт.
