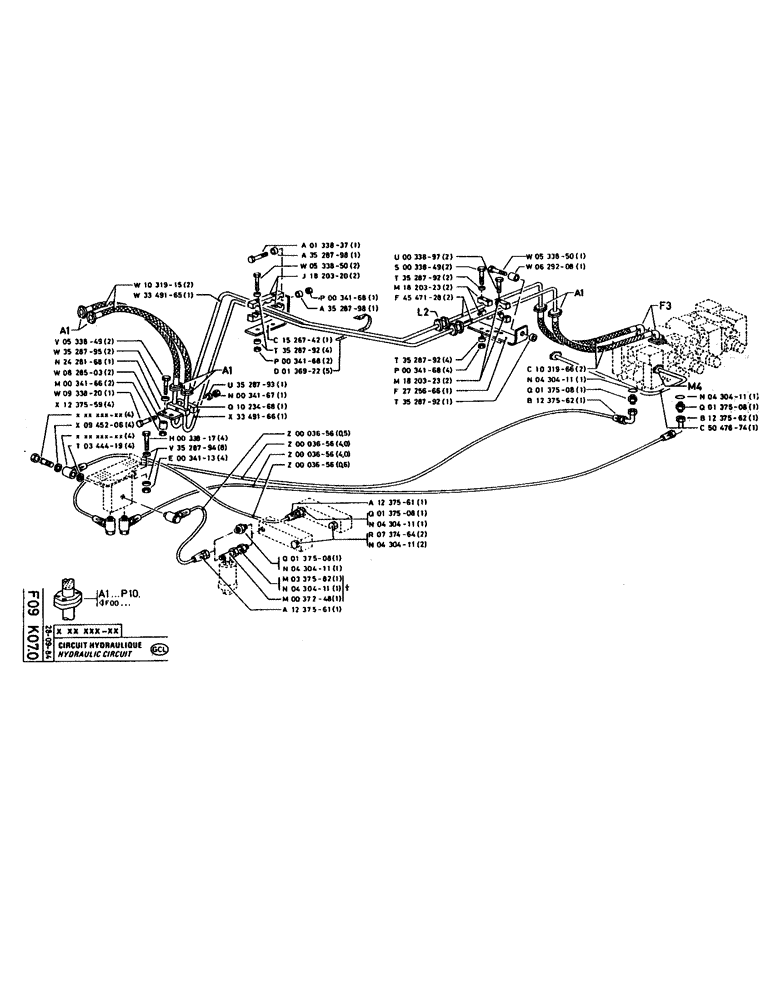

Запчасти Case 160CK (130) - HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

P533849

SCREW

/BOLT, M10 x 65

2шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

P2428168

SUPPORT

1шт.

P828503

BUSHING, LARGE

BUSHING

2шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P933820

SCREW

/BOLT, M12 x 65 x 65

1шт.

P1237559

END FITTING

4шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

4шт.

P344419

WASHER, SEALING

SEAL WASHER, 13.2 x 17.9 x 1.5

4шт.

P1031915

HOSE

2шт.

P3349165

PIPE, 15 x 21

1шт.

P33817

SCREW

/BOLT, M8 x 30

4шт.

P3528794

WASHER

8.25 x 6 x 20

8шт.

P34113

NUT

4шт.

P133837

SCREW

/BOLT, M14 x 80

1шт.

P3528798

WASHER

15.2 x 25 x 34

1шт.

P533850

SCREW

/BOLT, M14 x 90

2шт.

P1820320

BRACKET, 15 x 21

2шт.

P34168

NUT

1шт.

P3528798

WASHER

15.2 x 25 x 34

1шт.

P1526742

SUPPORT

1шт.

P3528792

WASHER

14.5 x 10 x 35

4шт.

P34168

NUT

2шт.

P136922

CLAMP

COLLAR

5шт.

P3528793

WASHER

12.5 x 8 x 30

1шт.

337475

NUT,M12, Cl 10

1шт.

P1023468

SHIN

BRACKET

1шт.

P3349166

PIPE, 15 x 21

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P1237561

END FITTING

1шт.

P137508

UNION

part number of union

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, part number of seal

1шт.

P737464

PLUG

part number of union

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, part number of seal

2шт.

P137508

UNION

part number of union

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, part number of seal

1шт.

P337582

FITTING

CONNECTION, no longer exists on new model, part number of union

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, no longer exists on new model, part number of seal

1шт.

P37248

TEE

T PIECE, DN10 x 17 x 10, no longer exists on new model

1шт.

P1237561

END FITTING

1шт.

P33897

SCREW

/BOLT, M14 x 100

2шт.

P33849

SCREW

/BOLT, M14 x 110

2шт.

P3528792

WASHER

14.5 x 10 x 35

2шт.

P1820323

BRACKET

2шт.

P4547128

PIPE, 15 x 21

2шт.

P3528792

WASHER

14.5 x 10 x 35

4шт.

P34168

NUT

4шт.

P1820323

BRACKET

2шт.

P2725666

SUPPORT

1шт.

P3528792

WASHER

14.5 x 10 x 35

1шт.

P533850

SCREW

/BOLT, M14 x 90

1шт.

P629208

BUSHING

1шт.

P1031966

HOSE

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P137508

UNION

1шт.

P1237562

END FITTING

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P137508

UNION

1шт.

P1237562

END FITTING

1шт.
