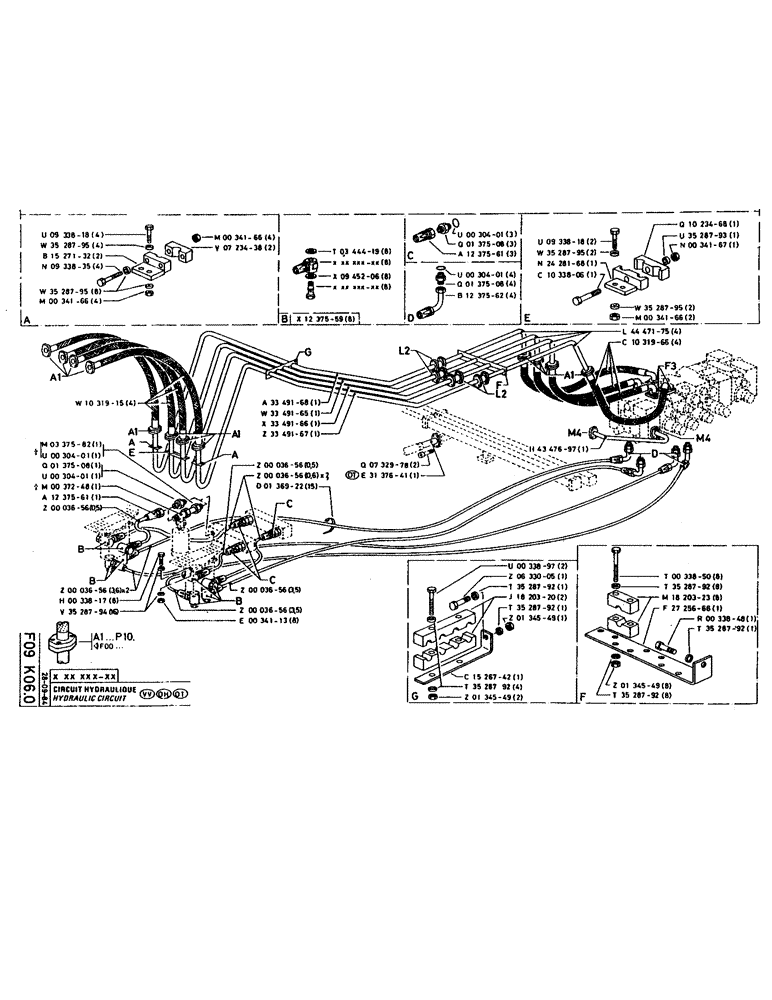

Запчасти Case 160CK (127) - HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

P933818

SCREW

/BOLT, M10 x 40 x 40

4шт.

P3528795

WASHER

10.25 x 7 x 25

4шт.

P1527132

BRACKET, 15 x 21

2шт.

P933835

SCREW

/BOLT, M10 x 70 x 70

4шт.

P3528795

WASHER

10.25 x 7 x 25

8шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P723438

SHIN

BRACKET

2шт.

P344419

WASHER, SEALING

SEAL WASHER, 13.2 x 17.9 x 1.5

8шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

8шт.

P1237559

END FITTING

8шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

3шт.

P137508

UNION

3шт.

P1237561

END FITTING

3шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

4шт.

P137508

UNION

4шт.

P1237562

END FITTING

4шт.

P933818

SCREW

/BOLT, M10 x 40 x 40

2шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

P2428168

SUPPORT

1шт.

P1033806

SCREW

/BOLT, M12 x 70 x 70

1шт.

P1023468

SHIN

BRACKET

1шт.

P3528793

WASHER

12.5 x 8 x 30

1шт.

337475

NUT,M12, Cl 10

1шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P1031915

HOSE

4шт.

P337582

FITTING

CONNECTION, no longer exists on new model, part number of union

1шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5, no longer exists on new model, part number of seal

1шт.

P137508

UNION

part number of union

1шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5, part number of seal

1шт.

P37248

TEE

T PIECE, DN10 x 17 x 10, no longer exists on new model

1шт.

P1237561

END FITTING

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P33817

SCREW

/BOLT, M8 x 30

8шт.

P3528794

WASHER

8.25 x 6 x 20

16шт.

P3349168

PIPE, 15 x 21

1шт.

P3349165

PIPE, 15 x 21

1шт.

P3349166

PIPE, 15 x 21

1шт.

P3349167

PIPE, 15 x 21

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P136922

CLAMP

COLLAR

15шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P34113

NUT

8шт.

P0732978Q

SCREW

2шт.

P3137641

PIPE, 15 x 21, auger attachment

1шт.

P4447175

PIPE, 15 x 21

4шт.

P1031966

HOSE

4шт.

P33897

SCREW

/BOLT, M14 x 100

2шт.

P633005

SCREW

/BOLT, M14 x 60 x 60

1шт.

P3528792

WASHER

14.5 x 10 x 35

1шт.

P1820320

BRACKET, 15 x 21

2шт.

P3528792

WASHER

14.5 x 10 x 35

1шт.

P134549

SAFETY NUT

1шт.

P1526742

SUPPORT

1шт.

P3528792

WASHER

14.5 x 10 x 35

4шт.

P134549

SAFETY NUT

2шт.

P33850

SCREW

/BOLT, M14 x 120

8шт.

P3528792

WASHER

14.5 x 10 x 35

8шт.

P1820323

BRACKET

8шт.

P2725666

SUPPORT

1шт.

P33848

SCREW

/BOLT, M14 x 40

1шт.

P3528792

WASHER

14.5 x 10 x 35

1шт.

P134549

SAFETY NUT

8шт.

P3528792

WASHER

14.5 x 10 x 35

8шт.
