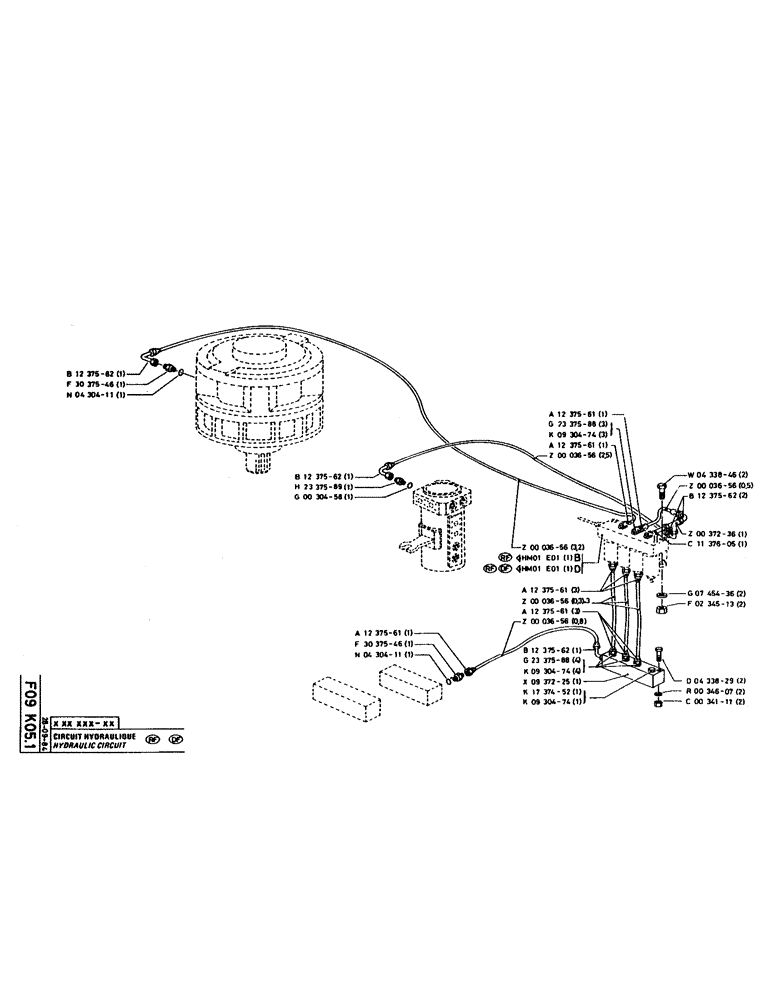

Запчасти Case 160CK (125) - HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

P1237562

END FITTING

1шт.

P3037546

UNION

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P1237562

END FITTING

1шт.

P2337589

UNION

1шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

1шт.

P1237561

END FITTING

1шт.

P3037546

UNION

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P1237561

END FITTING

1шт.

P2337588

UNION

part number of union

3шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, part number of seal

3шт.

P1237561

END FITTING

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P1237561

END FITTING

3шт.

P3656

PIPE

1шт.

P1237561

END FITTING

3шт.

P3656

PIPE

1шт.

P1237562

END FITTING

1шт.

P2337588

UNION

part number of union

4шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, part number of seal

4шт.

P937225

BLOCK ASSY.

BLOCK, 5 x 13G

1шт.

P1737452

PLUG

part number of union

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, part number of seal

1шт.

P433846

SCREW

/BOLT, M6 x 50

2шт.

P3656

PIPE

1шт.

P1237562

END FITTING

2шт.

P37236

TEE

T PIECE

1шт.

P1137605

PIPE

6 x 10

1шт.

P745436

WASHER

7 x 4 x 16

2шт.

P234513

SAFETY NUT

2шт.

P433829

SCREW

/BOLT, M6 x 60

2шт.

P34607

WASHER

2шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.
