Запчасти Case 160CK (117) - COOLER CIRCUIT (07) - HYDRAULIC SYSTEM

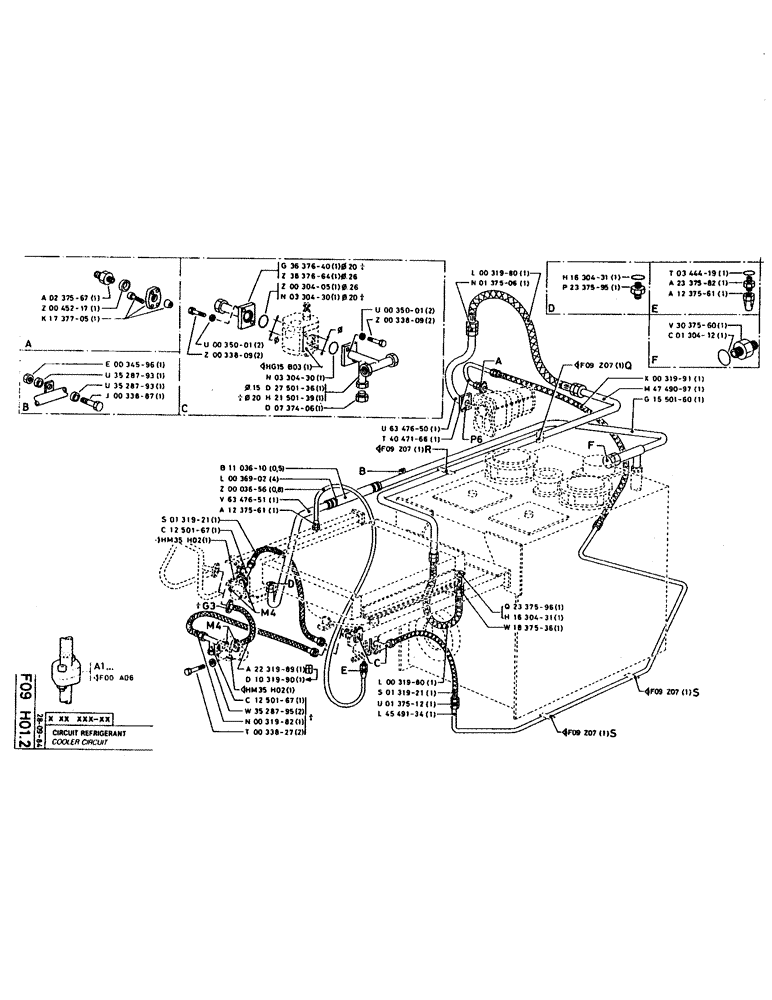

Схема запчастей Case 160CK - (117) - COOLER CIRCUIT (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P237567

UNION

1шт.

P45217

WASHER, SEALING

SEAL WASHER, 21.2 x 25.9 x 1.5

1шт.

P1737705

BRACKET

1шт.

P34596

LOCK NUT

1шт.

P3528793

WASHER

12.5 x 8 x 30

1шт.

P3528793

WASHER

12.5 x 8 x 30

1шт.

P33887

SCREW

/BOLT, M12 x 45

1шт.

P35001

WASHER

2шт.

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

P3637640

PIPE

11 x 17, no longer exists on new model

1шт.

P3837664

PIPE

11 x 17

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80, no longer exists on new model

1шт.

P35001

WASHER

2шт.

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80

1шт.

P2750136

MANIFOLD

COLLECTOR

1шт.

P2150139

MANIFOLD

COLLECTOR, no longer exists on new model

1шт.

P737406

PLUG

M16 x 1.5

1шт.

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

SEAL, 2.62 x 36.17-80

1шт.

P2337595

UNION

1шт.

P344419

WASHER, SEALING

SEAL WASHER, 13.2 x 17.9 x 1.5

1шт.

P2337582

UNION

1шт.

P1237561

END FITTING

1шт.

P3037560

UNION

1шт.

P130412

O-RING

SEAL, 2.62 x 44.12-80

1шт.

P1103610

PIPE

34 x 45

1шт.

P36902

COLLAR CLAMP

CLAMP COLLAR

4шт.

P3656

PIPE

1шт.

P6347651

PIPE

26 x 34

1шт.

P1237561

END FITTING

1шт.

P131921

HOSE

1шт.

P1250167

END FITTING

1шт.

P2231989

HOSE

no longer sold

1шт.

P1031990

HOSE

1шт.

P1250167

END FITTING, no longer exists on new model

1шт.

P3528795

WASHER

10.25 x 7 x 25, no longer exists on new model

2шт.

P31982

HOSE

no longer exists on new model

1шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, , REW/BOLTno longer exists on new model Hex, M10 x 25, 10.9, Full Thd

2шт.

P6347650

PIPE

26 x 34

1шт.

P4047166

PIPE, 15 x 21

1шт.

P31980

HOSE

1шт.

P131921

HOSE

1шт.

P137512

FITTING

CONNECTION

1шт.

P4549134

PIPE

15 x 21

1шт.

P31980

HOSE

1шт.

P137506

UNION

1шт.

P2337596

FITTING

CONNECTION, part number of union

1шт.

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

SEAL, 2.62 x 36.17-80, part number of seal

1шт.

P1837536

UNION

18 x 1.5

1шт.

P31991

HOSE

1шт.

P4749097

PIPE

26 x 34

1шт.

P1550160

PIPE

1шт.

Выбрано товаров: 53
