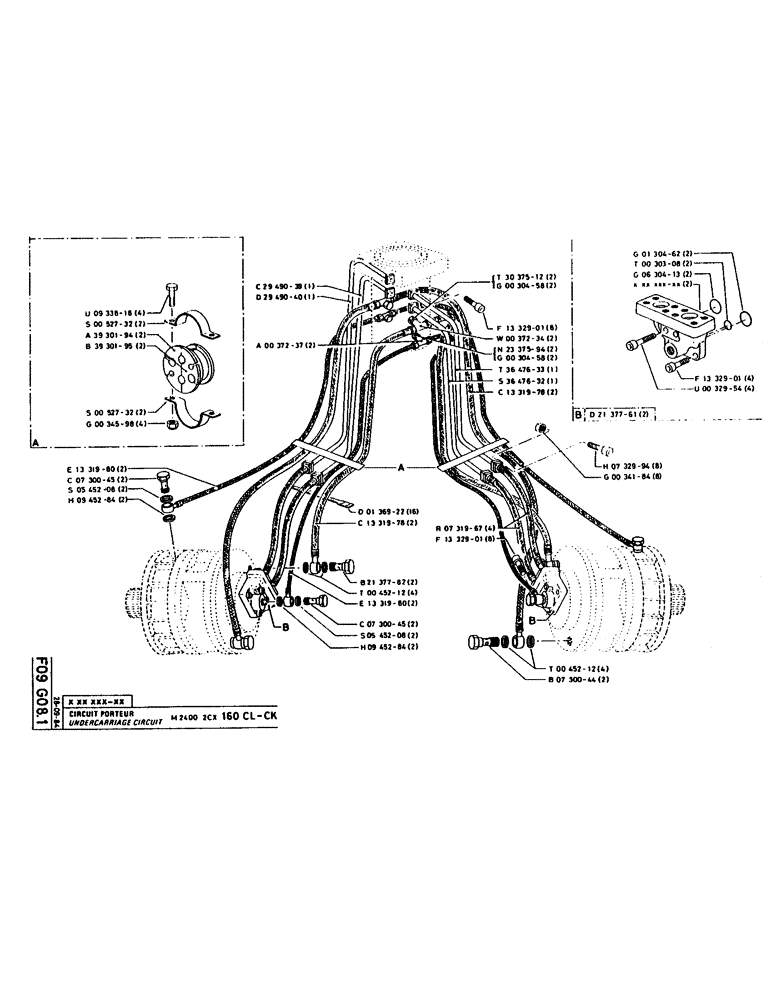

Запчасти Case 160CK (114) - UNDERCARRIAGE CIRCUIT (07) - HYDRAULIC SYSTEM

P933818

SCREW

/BOLT, M10 x 40 x 40

4шт.

P52732

HALF-COLLAR

HALF COLLAR

2шт.

P3930194

SHIN

BRACKET

2шт.

P3930195

SHIN

BRACKET

2шт.

P52732

HALF-COLLAR

HALF COLLAR

2шт.

P34598

SAFETY NUT

4шт.

P1331980

HOSE

2шт.

P730045

BANJO BOLT

FEMALE SCREW

2шт.

P545208

WASHER, SEALING

SEAL WASHER, 18 x 24 x 1.5

2шт.

P945284

WASHER, SEALING

SEAL WASHER, 17.2 x 22.9 x 1

2шт.

P2949039

PIPE, 19 x 27

1шт.

P2949040

PIPE, 19 x 27

1шт.

P37237

TEE

T PIECE, DN17 x 21 x 17

2шт.

P136922

CLAMP

COLLAR

16шт.

P1331978

HOSE

2шт.

P2137782

BANJO BOLT

FEMALE SCREW

2шт.

P45212

COPPER SEAL

32 x 27.2 x 1.5

4шт.

P1331980

HOSE

2шт.

P730045

BANJO BOLT

FEMALE SCREW

2шт.

P545208

WASHER, SEALING

SEAL WASHER, 18 x 24 x 1.5

2шт.

P945284

WASHER, SEALING

SEAL WASHER, 17.2 x 22.9 x 1

2шт.

P3037512

FITTING

CONNECTION, part number of union

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80, part number of seal

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

P37234

TEE

T PIECE, DN21 x 27 x 21

2шт.

P2337594

FITTING

CONNECTION, part number of union

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80, part number of seal

2шт.

P3647633

PIPE, 19 x 27

1шт.

P3647632

PIPE, 19 x 27

1шт.

P1331978

HOSE

2шт.

P731967

HOSE

4шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

P45212

COPPER SEAL

32 x 27.2 x 1.5

4шт.

P730044

BANJO BOLT

FEMALE SCREW

2шт.

P732994

SCREW

/BOLT, M10 x 50

8шт.

86500689

NUT,M10 x 1.5, Cl 10

8шт.

P130462

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL, 2.62 x 17.96-80

2шт.

P30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2.7 x 8.9

2шт.

P630413

O-RING

SEAL, 2.62 x 9.19-80

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P32954

SCREW

/BOLT, M10 x 65

4шт.

P2137761

SHIN

BRACKET, 20 x 27

2шт.
