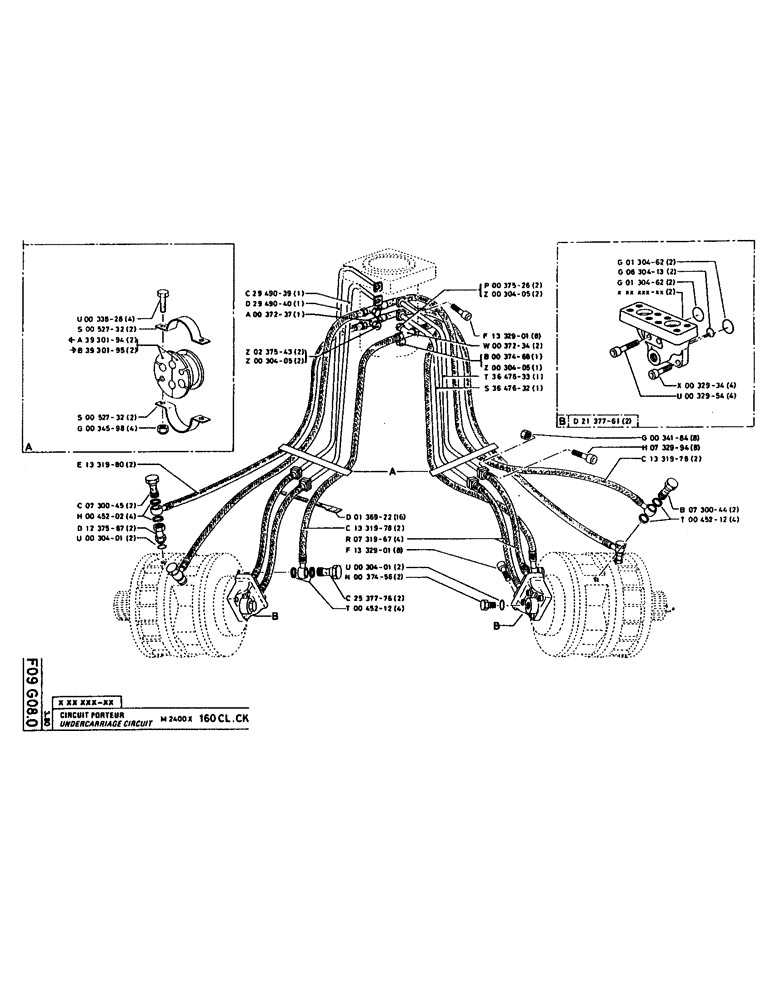

Запчасти Case 160CK (113) - UNDERCARRIAGE CIRCUIT (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
P33828
SCREW
/BOLT, M10 x 40
4шт.
P52732
HALF-COLLAR
HALF COLLAR
2шт.
P3930194
SHIN
BRACKET, left-hand part
2шт.
P3930195
SHIN
BRACKET, right-hand part
2шт.
P52732
HALF-COLLAR
HALF COLLAR
2шт.
P34598
SAFETY NUT
4шт.
P1331980
HOSE
2шт.
P730045
BANJO BOLT
FEMALE SCREW
2шт.
P45202
WASHER, SEALING
SEAL WASHER, 17.2 x 20.9 x 1.5
4шт.
P1237587
UNION
2шт.
P30401
O-RING,2.5mm Thk x 18.5mm ID
2.5 x 18.5
2шт.
P2949039
PIPE, 19 x 27
1шт.
P2949040
PIPE, 19 x 27
1шт.
P37237
TEE
T PIECE, DN17 x 21 x 17
1шт.
P237543
FITTING
CONNECTION, part number of union
2шт.
P30405
O-RING
SEAL, 2.62 x 32.99-80, part number of seal
2шт.
P136922
CLAMP
COLLAR
16шт.
P1331978
HOSE
2шт.
P731967
HOSE
4шт.
14420331
HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd
8шт.
P30401
O-RING,2.5mm Thk x 18.5mm ID
2.5 x 18.5
2шт.
P37456
PLUG
2шт.
P2537776
BANJO BOLT
FEMALE SCREW
2шт.
P45212
COPPER SEAL
32 x 27.2 x 1.5
4шт.
P37526
SUN VISOR
CONNECTION, part number of union
2шт.
P30405
O-RING
SEAL, 2.62 x 32.99-80, part number of seal
2шт.
14420331
HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd
8шт.
P37234
TEE
T PIECE, DN21 x 27 x 21
2шт.
P37468
PLUG
part number of union
1шт.
P30405
O-RING
SEAL, 2.62 x 32.99-80, part number of seal
1шт.
P3647633
PIPE, 19 x 27
1шт.
P3647632
PIPE, 19 x 27
1шт.
P732994
SCREW
/BOLT, M10 x 50
8шт.
P1331978
HOSE
2шт.
P730044
BANJO BOLT
FEMALE SCREW
2шт.
P45212
COPPER SEAL
32 x 27.2 x 1.5
4шт.
P130462
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
SEAL, 2.62 x 17.96-80
2шт.
P630413
O-RING
SEAL, 2.62 x 9.19-80
2шт.
P130462
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
SEAL, 2.62 x 17.96-80
2шт.
14420331
HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd
4шт.
P32954
SCREW
/BOLT, M10 x 65
4шт.
Выбрано товаров: 42
