Запчасти Case 160CK (111) - UNDERCARRIAGE CIRCUIT (07) - HYDRAULIC SYSTEM

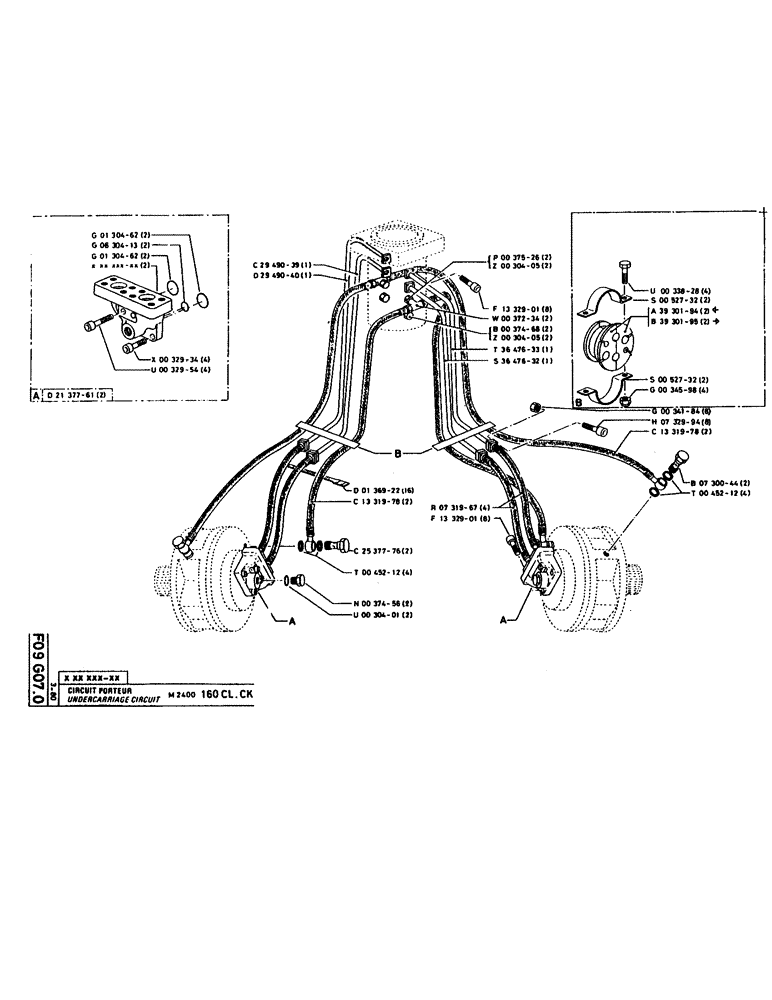

Схема запчастей Case 160CK - (111) - UNDERCARRIAGE CIRCUIT (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P130462

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL, 2.62 x 17.96-80

2шт.

P630413

O-RING

SEAL, 2.62 x 9.19-80

2шт.

P130462

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL, 2.62 x 17.96-80

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P32954

SCREW

/BOLT, M10 x 65

4шт.

P2137761

SHIN

BRACKET, 20 x 27

2шт.

P2949039

PIPE, 19 x 27

1шт.

P2949040

PIPE, 19 x 27

1шт.

P136922

CLAMP

COLLAR

16шт.

P1331978

HOSE

2шт.

P2537776

BANJO BOLT

FEMALE SCREW

2шт.

P45212

COPPER SEAL

32 x 27.2 x 1.5

4шт.

P37456

PLUG

2шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

2шт.

P731967

HOSE

4шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

P37526

SUN VISOR

CONNECTION, part number of union

2шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80, part number of seal

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

P37234

TEE

T PIECE, DN21 x 27 x 21

2шт.

P37468

PLUG

part number of union

2шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80, part number of seal

2шт.

P3647633

PIPE, 19 x 27

1шт.

P3647632

PIPE, 19 x 27

1шт.

86500689

NUT,M10 x 1.5, Cl 10

8шт.

P732994

SCREW

/BOLT, M10 x 50

8шт.

P1331978

HOSE

2шт.

P730044

BANJO BOLT

FEMALE SCREW

2шт.

P45212

COPPER SEAL

32 x 27.2 x 1.5

4шт.

P33828

SCREW

/BOLT, M10 x 40

4шт.

P52732

HALF-COLLAR

HALF COLLAR

2шт.

P3930194

SHIN

BRACKET, left-hand part

2шт.

P3930195

SHIN

BRACKET, right-hand part

2шт.

Выбрано товаров: 33
