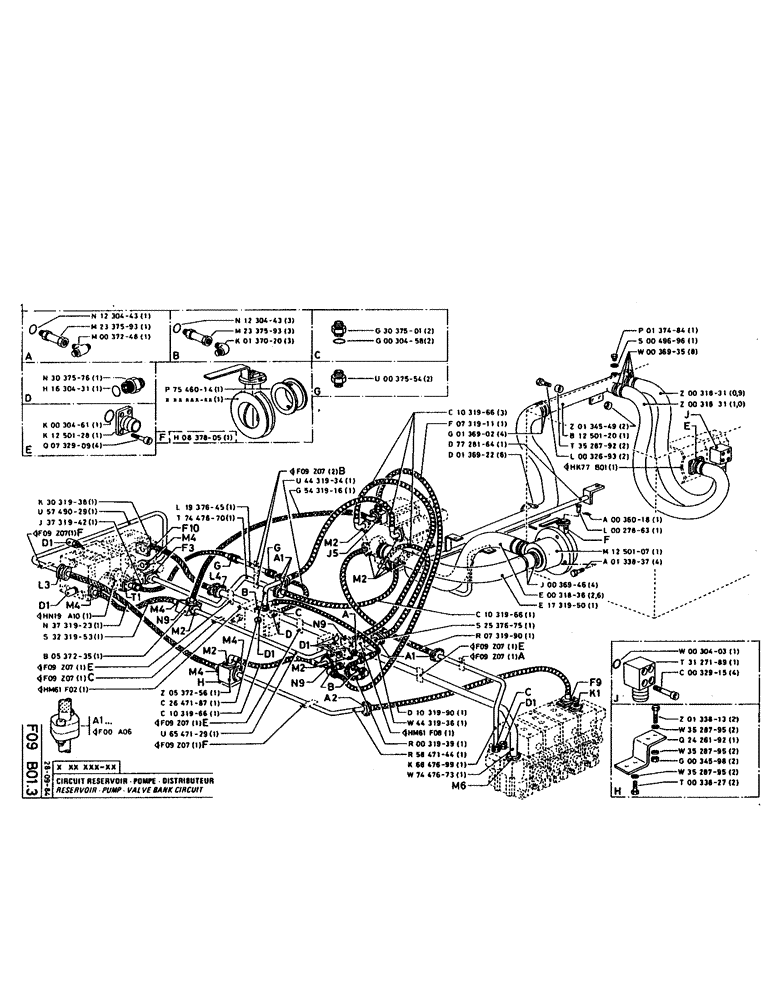

Запчасти Case 160CK (101) - RESERVOIR - PUMP - VALVE BANK CIRCUIT (07) - HYDRAULIC SYSTEM

P1230443

O-RING

SEAL, 2.62 x 23.47-80

1шт.

P2337593

FITTING

CONNECTION

1шт.

P37248

TEE

T PIECE, DN10 x 17 x 10

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

3шт.

P2337593

FITTING

CONNECTION

3шт.

P137020

ELBOW-CONNECTION

DN10 x DN17

3шт.

P3037501

UNION

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P3037576

UNION

1шт.

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

SEAL, 2.62 x 36.17-80

1шт.

P30461

O-RING

2.5 x 40

1шт.

P1250128

PIPE

1шт.

P732909

SCREW

/BOLT, M8 x 25/25

4шт.

P7546014

BUSHING, LARGE

BUSHING

1шт.

P837805

VANEUM GAUGE

VANE

1шт.

P37554

UNION

2шт.

P3031938

HOSE

1шт.

P5749029

PIPE, 19 x 27

1шт.

P3731942

HOSE

1шт.

P3731923

HOSE

1шт.

P3231953

HOSE

1шт.

P537235

TEE

T PIECE, DN27 x 21 x 21

1шт.

P1937645

PIPE

15 x 21

1шт.

P7447670

PIPE

15 x 21

1шт.

P537256

TEE

T PIECE, DN27 x 21 x 27

1шт.

P2647187

PIPE

15 x 21

1шт.

P1031966

HOSE

1шт.

P6547129

PIPE, 15 x 21

1шт.

P4431934

HOSE

1шт.

P5431916

HOSE

1шт.

P1031966

HOSE

3шт.

P731911

HOSE

1шт.

P136902

COLLAR CLAMP

CLAMP COLLAR

4шт.

P7728164

SUPPORT

1шт.

P136922

CLAMP

COLLAR

6шт.

P1031966

HOSE

1шт.

P2537675

PIPE

15 x 21

1шт.

P731990

HOSE

1шт.

P1031990

HOSE

1шт.

P4431936

HOSE

1шт.

P31939

HOSE

1шт.

P5847144

PIPE

19 x 27

1шт.

P6647699

PIPE

15 x 21

1шт.

P7447673

PIPE

24 x 34

1шт.

P137484

PLUG

M14 x 1.5

1шт.

P49696

BUSHING

1шт.

P36935

COLLAR CLAMP

CLAMP COLLAR

8шт.

P31831

LARGE HOSE

HOSE

1шт.

P31831

LARGE HOSE

HOSE

1шт.

P134549

SAFETY NUT

2шт.

P1250120

COLLECTOR

1шт.

P3528792

WASHER

14.5 x 10 x 35

2шт.

P32693

SCREW

/BOLT, M14 X 65

2шт.

P36018

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

1шт.

P27863

CLEVIS PIN

PIN, CLEVIS

1шт.

P1250107

MANIFOLD

COLLECTOR

1шт.

P133837

SCREW

/BOLT, M14 x 80

4шт.

P36946

COLLAR CLAMP

CLAMP COLLAR

4шт.

P31836

LARGE HOSE

HOSE

1шт.

P1731950

LARGE HOSE

HOSE

1шт.

P30403

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

SEAL, 2.62 x 26.64-80

1шт.

P3127189

SHIN

BRACKET

1шт.

P32915

SCREW

/BOLT, M6 x 50

4шт.

P133813

SCREW

/BOLT, M10 x 50

2шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

P2426192

HOOD

PLATE

1шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

P34598

SAFETY NUT

2шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

2шт.
