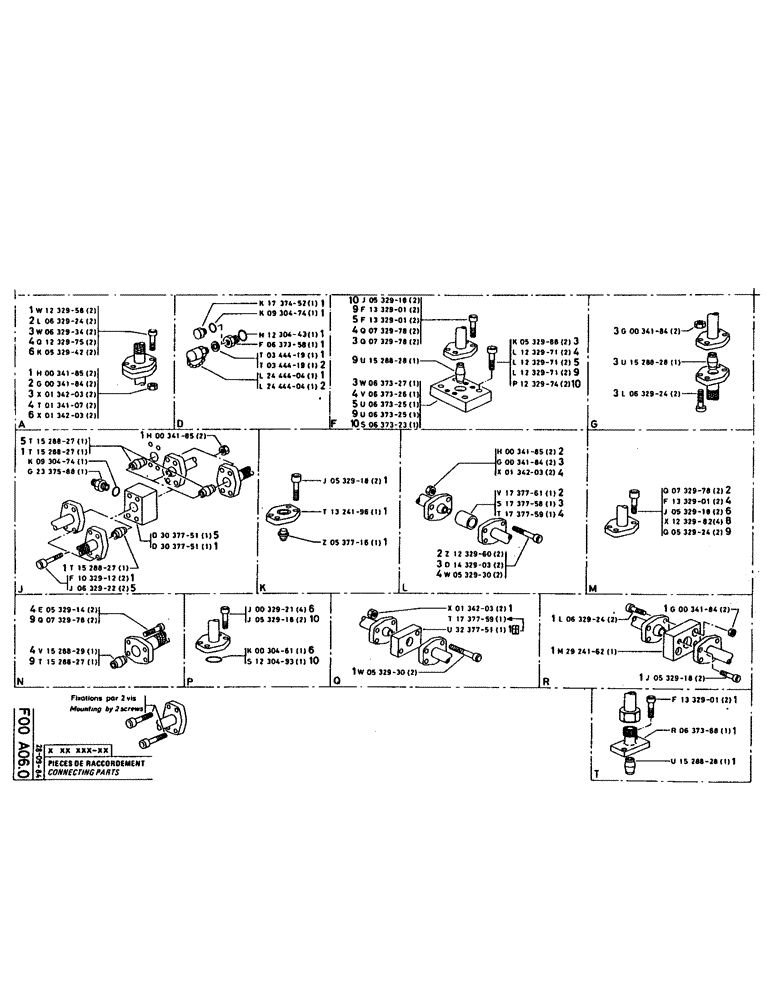

Запчасти Case 160CK (097) - CONNECTING PARTS (05) - UPPERSTRUCTURE CHASSIS

P1232958

SCREW

/BOLT, M8 x 45

2шт.

L632924

SCREW

/BOLT, M10 x 55

2шт.

P632934

SCREW

/BOLT, M12 x 65

2шт.

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

/BOLT, M14 x 70

2шт.

P532942

SCREW

/BOLT, M12 x 60

2шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

86500689

NUT,M10 x 1.5, Cl 10

2шт.

337475

NUT,M12, Cl 10

2шт.

P134107

NUT

2шт.

337475

NUT,M12, Cl 10

2шт.

P1737452

PLUG

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

1шт.

P637358

RESTRICTOR

21G x 13G

1шт.

P344419

WASHER, SEALING

SEAL WASHER, 13.2 x 17.9 x 1.5

1шт.

P344419

WASHER, SEALING

SEAL WASHER, 13.2 x 17.9 x 1.5

1шт.

P2444404

MAKING-UP

1шт.

P2444404

MAKING-UP

1шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

P0732978Q

SCREW

2шт.

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

2шт.

P1528828

JUNCTION

1шт.

P637327

RESTRICTOR

DN27 x 21

1шт.

P637326

RESTRICTOR

DN34 x 21

1шт.

P637325

RESTRICTOR

DN34 x 27

1шт.

P637325

RESTRICTOR

DN34 x 27

1шт.

P637323

RESTRICTOR

DN42 x 34

1шт.

P532988

SCREW

/BOLT, M10 x 25

3шт.

P1232971

SCREW

/BOLT, M12 x 30

2шт.

P1232971

SCREW

/BOLT, M12 x 30

2шт.

P1232971

SCREW

/BOLT, M12 x 30

2шт.

P1232974

SCREW

/BOLT, M14 x 30

2шт.

86500689

NUT,M10 x 1.5, Cl 10

2шт.

P1528828

JUNCTION

1шт.

L632924

SCREW

/BOLT, M10 x 55

2шт.

P1528827

JUNCTION

1шт.

P1528827

JUNCTION

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

1шт.

P2337588

UNION

1шт.

P1528827

JUNCTION

1шт.

P1032912

SCREW

/BOLT, M8 x 85

2шт.

P632922

SCREW

/BOLT, M8 x 70

2шт.

P3037751

JUNCTION

1шт.

P3037751

JUNCTION

1шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

P1324196

SHIN

BRACKET

1шт.

P537716

BLANK-OFF PLUG

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

86500689

NUT,M10 x 1.5, Cl 10

2шт.

337475

NUT,M12, Cl 10

2шт.

P1737761

JUNCTION

1шт.

P1737758

JUNCTION

1шт.

P1737759

JUNCTION

1шт.

P1232960

SCREW

/BOLT, M8 x 75

2шт.

P1432903

SCREW

/BOLT, M10 x 85

2шт.

P532930

SCREW

/BOLT, M12 x 100

2шт.

P0732978Q

SCREW

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

P1232982

SCREW

/BOLT, M14 x 40

4шт.

P532924

SCREW

/BOLT, M14 x 45

2шт.

P532914

SCREW

/BOLT, M12 x 45

2шт.

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

2шт.

P1528829

JUNCTION

1шт.

P1528827

JUNCTION

1шт.

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

4шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

P30461

O-RING

2.5 x 40

1шт.

P1230493

O-RING

SEAL, 3.53 x 37.69-80

1шт.

337475

NUT,M12, Cl 10

2шт.

P1737759

JUNCTION

1шт.

P3237751

JUNCTION

no longer sold

1шт.

P532930

SCREW

/BOLT, M12 x 100

2шт.

L632924

SCREW

/BOLT, M10 x 55

2шт.

P2924162

RESTRICTOR

34 x 27

1шт.

86500689

NUT,M10 x 1.5, Cl 10

2шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

P637368

RESTRICTOR

1шт.

P1528828

JUNCTION

1шт.
