Запчасти Case 115CL (049) - NO DESCRIPTION PROVIDED

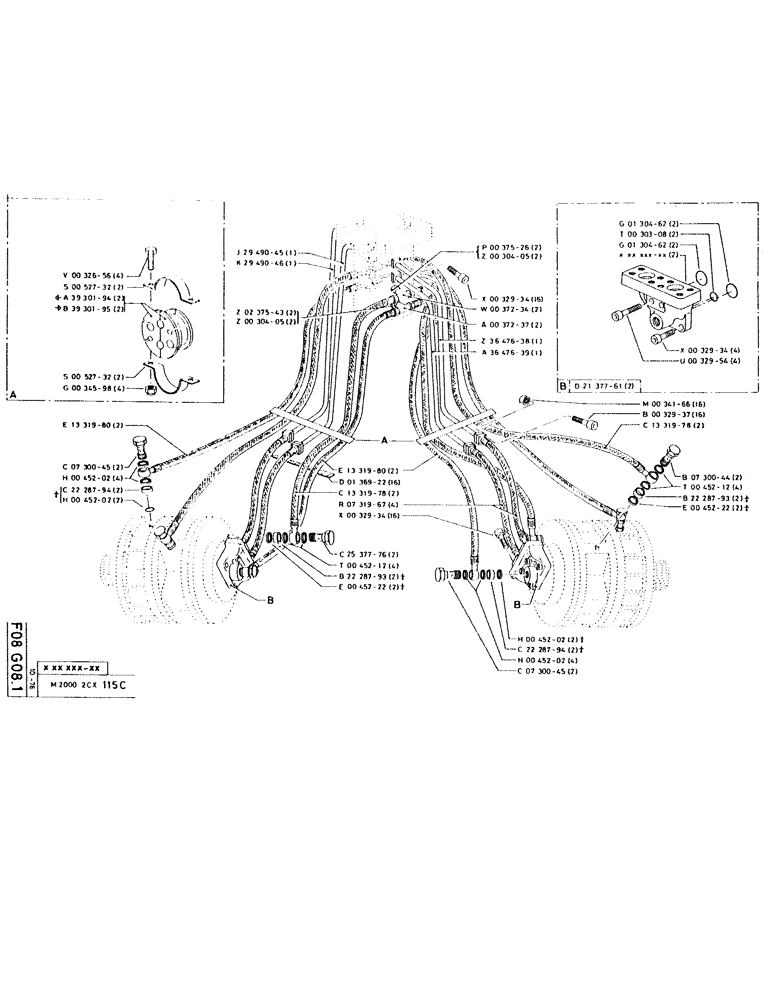

Схема запчастей Case 115CL - (049) - NO DESCRIPTION PROVIDED

Артикул

Название

Примечание

Количество

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

P52732

HALF-COLLAR

HALF COLLAR

2шт.

P3930194

SHIN

BRACKET

2шт.

P3930195

SHIN

BRACKET

2шт.

P52732

HALF-COLLAR

HALF COLLAR

2шт.

P34598

SAFETY NUT

4шт.

P1331980

HOSE

2шт.

P730045

BANJO BOLT

FEMALE SCREW

2шт.

P45202

WASHER, SEALING

SEAL WASHER, 17.2 x 20.9 x 1.5

4шт.

P2228794

BUSHING

2шт.

P45202

WASHER, SEALING

SEAL WASHER, 17.2 x 20.9 x 1.5

2шт.

P2949045

1шт.

P2949046

1шт.

P237543

FITTING

CONNECTION

2шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

2шт.

P1331980

HOSE

2шт.

P136922

CLAMP

COLLAR

16шт.

P1331978

HOSE

2шт.

P731967

HOSE

4шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

P2537776

BANJO BOLT

FEMALE SCREW

2шт.

P45212

COPPER SEAL

32 x 27.2 x 1.5

4шт.

P2228793

BUSHING

2шт.

P45222

COMPOSITE SEAL

METAL PLASTICS, 26.5 x 35 x 2.2

2шт.

P37526

SUN VISOR

CONNECTION

2шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

P37234

TEE

T PIECE, DN21 x 27 x 21

2шт.

P37237

TEE

T PIECE, DN17 x 21 x 17

2шт.

P3647638

1шт.

P3647639

1шт.

P45202

WASHER, SEALING

SEAL WASHER, 17.2 x 20.9 x 1.5

2шт.

P2228794

BUSHING

2шт.

P45202

WASHER, SEALING

SEAL WASHER, 17.2 x 20.9 x 1.5

4шт.

P730045

BANJO BOLT

FEMALE SCREW

2шт.

P130462

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL, 2.62 x 17.96-80

2шт.

P30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2.7 x 8.9

2шт.

P130462

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL, 2.62 x 17.96-80

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P32954

SCREW

/BOLT, M10 x 65

4шт.

P2137761

SHIN

BRACKET, 20 x 27

2шт.

100016

NUT,M10 x 1.5, Cl 8

16шт.

P32937

SCREW

/BOLT, M10 x 50

16шт.

P1331978

HOSE

2шт.

P730044

BANJO BOLT

FEMALE SCREW

2шт.

P45212

COPPER SEAL

32 x 27.2 x 1.5

4шт.

P2228793

BUSHING

2шт.

P45222

COMPOSITE SEAL

METAL PLASTICS, 26.5 x 35 x 2.2

2шт.

Выбрано товаров: 48
