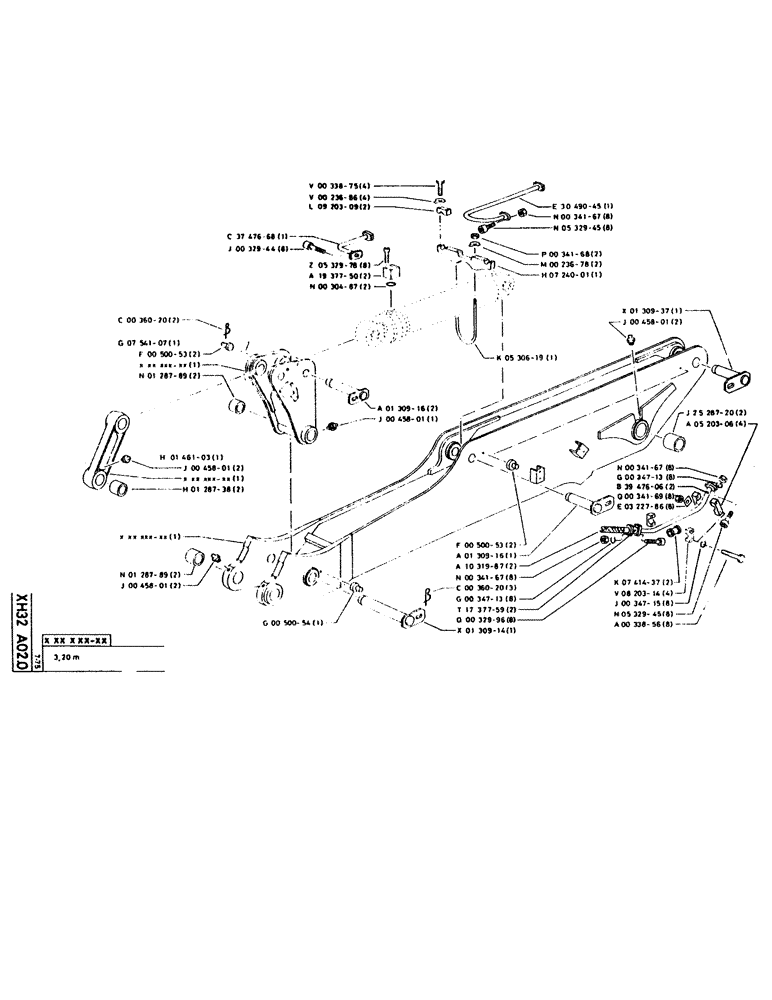

Запчасти Case 115CL (142) - No Description Provided

P36020

SPLIT PIN/SAFETY PIN

2шт.

P754107

1шт.

P50053

SHAFT LOCK

2шт.

P128789

BUSHING

60 x 75 x 65

2шт.

P146103

CONNECTING ROD

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P128738

BUSHING

60 x 75 x 90

2шт.

P128789

BUSHING

60 x 75 x 65

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P50054

SHAFT LOCK

1шт.

P33875

SCREW

/BOLT, M16 x 70

4шт.

P23686

BRAKE

4шт.

P920309

SHIN

BRACKET

2шт.

P3747668

PIPE

1шт.

P32944

SCREW

/BOLT, M12 x 40

8шт.

P532978

SCREW

/BOLT, M14 x 85

8шт.

P1937750

SHIN

2шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80

2шт.

P130916

LARGE PIN

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

1шт.

P50053

SHAFT LOCK

2шт.

P130916

LARGE PIN

1шт.

P1031987

HOSE

2шт.

337475

NUT,M12, Cl 10

8шт.

P36020

SPLIT PIN/SAFETY PIN

3шт.

P34713

WASHER

8шт.

P1737759

JUNCTION

2шт.

P32996

SCREW

/BOLT, M12 x 100

8шт.

P130914

HEADED PIN

PIN, HEADED

1шт.

P3049045

PIPE

1шт.

337475

NUT,M12, Cl 10

8шт.

P532945

SCREW

/BOLT, M12 x 65

8шт.

P34168

NUT

2шт.

P23678

BRAKE

2шт.

P724001

SUPPORT

1шт.

P530619

STIRRUP

BRACKET, 174 x 149

1шт.

P130937

HEADED PIN

PIN, HEADED

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P2528720

BUSHING

70 x 90 x 70

2шт.

P520306

SHIN

BRACKET

4шт.

337475

NUT,M12, Cl 10

8шт.

P34713

WASHER

8шт.

P3947606

2шт.

P34169

NUT

8шт.

P322786

8шт.

P741437

BUSHING

2шт.

P820314

SHIN

BRACKET

4шт.

P34715

WASHER, LOCK

WASHER

8шт.

P532945

SCREW

/BOLT, M12 x 65

8шт.

P33856

SCREW

/BOLT, M16 x 120

8шт.
