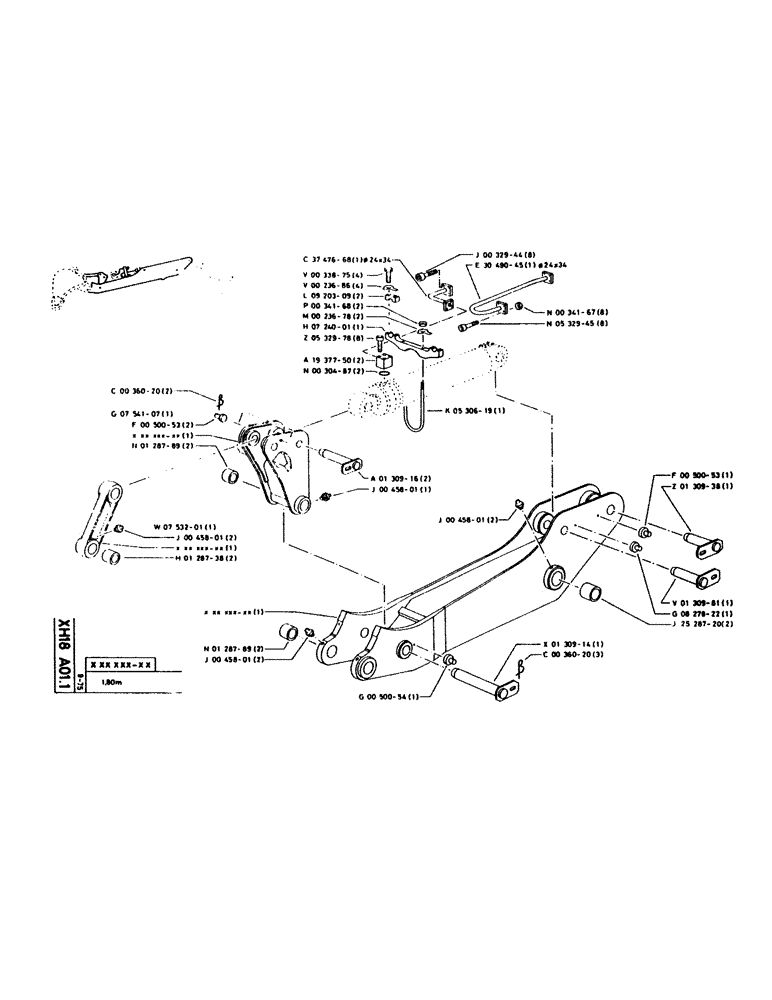

Запчасти Case 115CL (140) - No Description Provided

P36020

SPLIT PIN/SAFETY PIN

2шт.

P754107

1шт.

P50053

SHAFT LOCK

2шт.

P128789

BUSHING

60 x 75 x 65

2шт.

P753201

ROD, CONNECTING

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P128738

BUSHING

60 x 75 x 90

2шт.

P128789

BUSHING

60 x 75 x 65

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P3747668

PIPE

1шт.

P33875

SCREW

/BOLT, M16 x 70

4шт.

P23686

BRAKE

4шт.

P920309

SHIN

BRACKET

2шт.

P34168

NUT

2шт.

P23678

BRAKE

2шт.

P724001

SUPPORT

1шт.

P532978

SCREW

/BOLT, M14 x 85

8шт.

P1937750

SHIN

2шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80

2шт.

P530619

STIRRUP

BRACKET, 174 x 149

1шт.

P130916

LARGE PIN

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P50054

SHAFT LOCK

1шт.

P130914

HEADED PIN

PIN, HEADED

1шт.

P36020

SPLIT PIN/SAFETY PIN

3шт.

P32944

SCREW

/BOLT, M12 x 40

8шт.

P3049045

PIPE

1шт.

337475

NUT,M12, Cl 10

8шт.

P532945

SCREW

/BOLT, M12 x 65

8шт.

P50053

SHAFT LOCK

1шт.

P130938

LARGE PIN

1шт.

P130981

LARGE PIN

PIN

1шт.

P827822

1шт.

P2528720

BUSHING

70 x 90 x 70

2шт.
