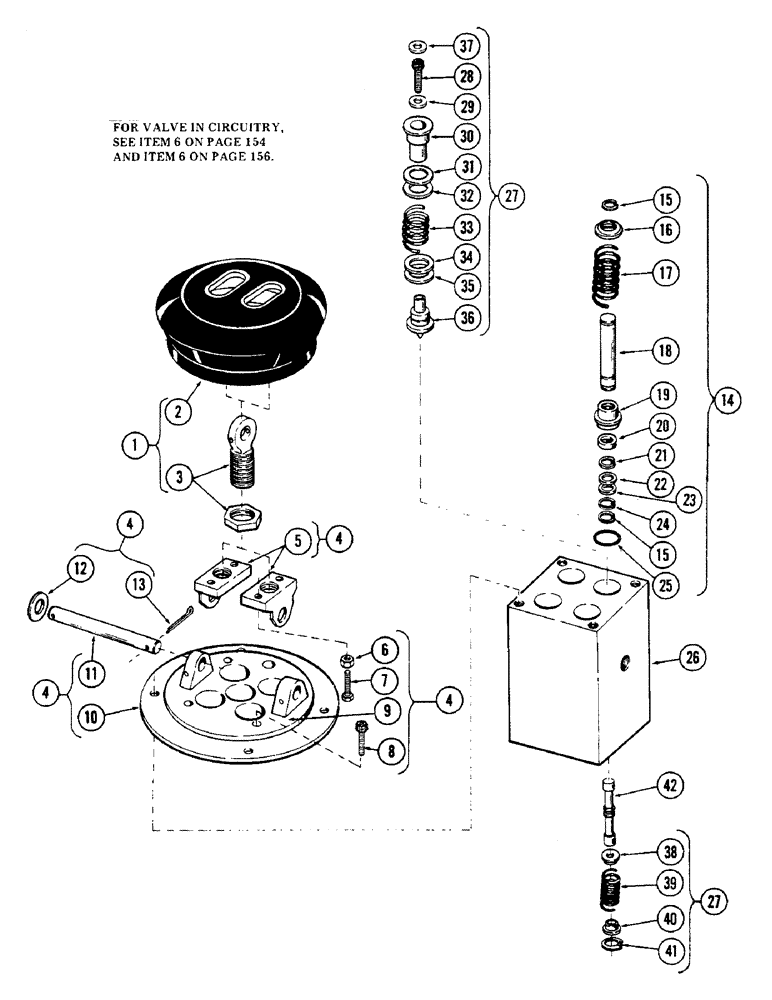

Запчасти Case 50 (256) - HAND AND FOOT CONTROL VALVE, (USED ON UNITS W/ SN. 6280345 AND AFTER)(SN.6279926 & AFTER) (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
S513193
VALVE
- hand and foot control, Includes: Ref. 1 - 42
4шт.
1
S116388
LEVER
ASSY, Includes: Ref. 2 and 3
1шт.
2
S116389
BOOT
1шт.
3
S114439
LEVER
2шт.
4
S116376
PLATE
MOUNTING PLATE ASSY, Includes: Ref. 5 - 13
1шт.
5
S116377
BRACKET, PIVOT
DISC - pressure
2шт.
6
15896221
NUT,Hex, M6, 5.20mm High, Cl 10
4шт.
7
S116379
BOLT
4шт.
8
S109848
SCREW
4шт.
9
S116382
PLATE
- bracket
1шт.
10
S116381
SHEET
PLATE - mounting
1шт.
11
S116384
PIN
1шт.
12
S116383
WASHER
1шт.
13
132-28
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), 3/32" x 1"
2шт.
14
S116385
SHOCK ABSORBER
BUSHING AND SPRING ASSY, Includes: Ref. 15 - 23
1шт.
15
S110961
RING, SNAP
RING - snap
2шт.
16
S109867
WASHER
1шт.
17
S232866
SPRING
1шт.
18
S110962
STUD - guide
1шт.
19
S109851
BUSHING - guide
1шт.
20
S109853
SEAL
1шт.
Part of seal kit, P/N S116391
1шт.
21
S109854
RING, SNAP
RING - snap
1шт.
22
S109856
SHIM,0.2mm Thk
Spacer 0.2mm Thk
1шт.
23
S109857
SHIM,0.5mm Thk
Spacer 0.5mm Thk
1шт.
24
S109855
RING, SNAP
RING - snap, Includes: Ref. 25
1шт.
25
S109852
O-RING,15.3mm ID x 2.4mm Width
1шт.
Part of seal kit, P/N S116391
1шт.
26
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
27
N60045
SHOCK ABSORBER
INTERNAL SPRING ASSY (Replaces S116386), Includes: Ref. 28 - 41
1шт.
28
S109858
SCREW
1шт.
29
S109859
WASHER
1шт.
30
S116387
BUSHING - guide
1шт.
31
S109862
SPACER
- 0.2 MM
1шт.
32
S109861
SPACER
- 0.5 MM
1шт.
33
S232998
SPRING
1шт.
34
S109868
SPACER
- .05 MM
1шт.
35
S109869
SPACER
- .02 MM
1шт.
36
S109863
GUIDE
- spring
1шт.
37
S109856
SHIM,0.2mm Thk
Spacer 0.2mm Thk
1шт.
S109857
SHIM,0.5mm Thk
Spacer 0.5mm Thk
1шт.
38
S109864
WASHER
1шт.
Part of spring repair kit, P/N S116392
1шт.
39
S232997
SPRING
1шт.
Part of spring repair kit, P/N S116392
1шт.
40
S109865
GUIDE
1шт.
Part of spring repair kit, P/N S116392
1шт.
41
S109866
RING, SNAP
RING - snap
1шт.
Part of spring repair kit, P/N S116392
1шт.
42
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
43
S116391
KIT
- seal, Includes: Ref. 20 and 25
1шт.
44
S116392
KIT
- spring repair, Includes: Ref. 38 thru 41
1шт.
Выбрано товаров: 52
