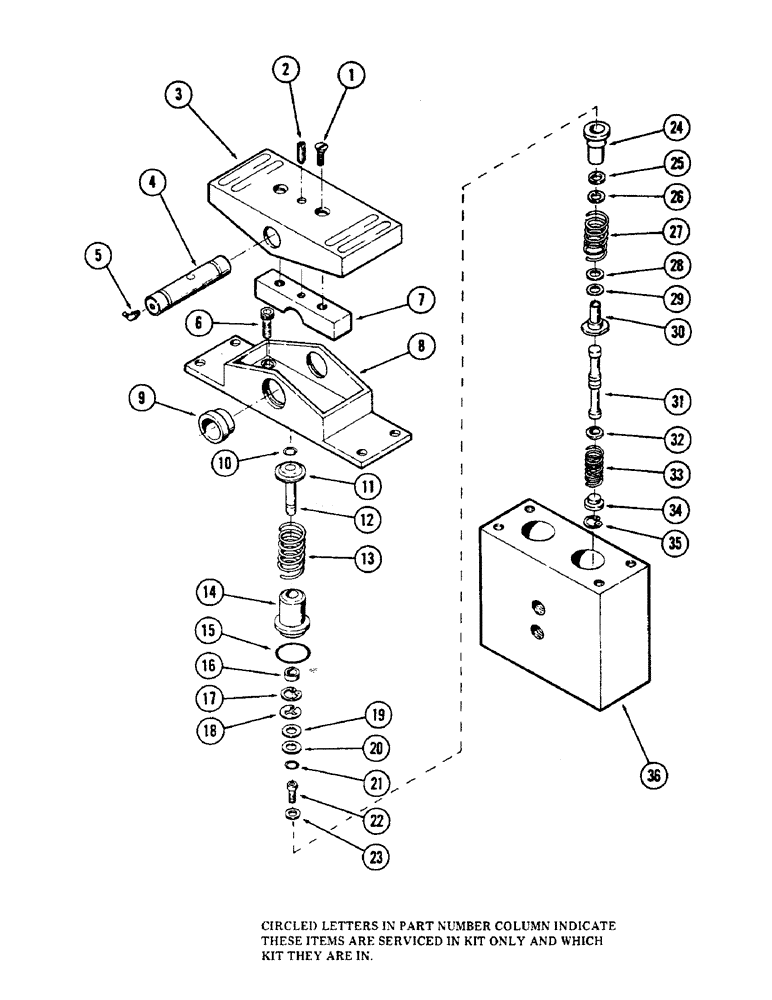

Запчасти Case 50 (254) - MODULATOR FOOT CONTROL VALVE, (USED ON UNITS W/ SN. 6279926-6280344)(SN.6279926 AND AFTER), (35) - HYDRAULIC SYSTEMS

S511382

VALVE

- modulator foot control, Includes: Ref. 1 - 36

4шт.

1

NSS

NOT SOLD SEPARAT

SCREW

2шт.

Part of actuator assembly kit, P/N S233957

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW

1шт.

Part of actuator assembly kit, P/N S233957

1шт.

3

NSS

NOT SOLD SEPARAT

ACTUATOR

1шт.

Part of actuator assembly kit, P/N S233957

1шт.

4

NSS

NOT SOLD SEPARAT

PIN

1шт.

Part of actuator assembly kit, P/N S233957

1шт.

5

NSS

NOT SOLD SEPARAT

FITTING - grease

1шт.

Part of actuator assembly kit, P/N S233957

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW

4шт.

Part of actuator assembly kit, P/N S233957

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

Part of actuator assembly kit, P/N S233957

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - mounting

1шт.

Part of actuator assembly kit, P/N S233957

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

Part of actuator assembly kit, P/N S233957

1шт.

10

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

Part of pin assembly kit, P/N S233953

1шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

11

NSS

NOT SOLD SEPARAT

GUIDE - spring

2шт.

Part of pin assembly kit, P/N S233953

1шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

12

NSS

NOT SOLD SEPARAT

PIN

2шт.

Part of pin assembly kit, P/N S233953

1шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING

2шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

15

NSS

NOT SOLD SEPARAT

"O" RING

2шт.

Part of seal kit, P/N S234035

1шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

2шт.

Part of seal kit, P/N S234035

1шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

17

NSS

NOT SOLD SEPARAT

RING - snap

2шт.

Part of seal kit, P/N S234035

1шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

18

NSS

NOT SOLD SEPARAT

RING - snap

2шт.

Part of seal kit, P/N S234035

1шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

19

S109856

SHIM,0.2mm Thk

1шт.

20

S109857

SHIM,0.5mm Thk

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap

2шт.

Part of seal kit, P/N S234035

1шт.

Part of pin and spring assembly kit, P/N S238633

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW

2шт.

Part of spring assembly kit, P/N S233891

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER

2шт.

Part of spring assembly kit, P/N S233891

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

Part of spring assembly kit, P/N S233891

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM

1шт.

Part of spring assembly kit, P/N S233891

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM

1шт.

Part of spring assembly kit, P/N S233891

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING

2шт.

Part of spring assembly kit, P/N S233891

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM

1шт.

Part of spring assembly kit, P/N S233891

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM

1шт.

Part of spring assembly kit, P/N S233891

1шт.

30

NSS

NOT SOLD SEPARAT

GUIDE

2шт.

Part of spring assembly kit, P/N S233891

1шт.

31

NSS

NOT SOLD SEPARAT

SPOOL

2шт.

32

NSS

NOT SOLD SEPARAT

GUIDE

2шт.

Part of spring kit, P/N S233955

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING

2шт.

Part of spring kit, P/N S233955

1шт.

34

NSS

NOT SOLD SEPARAT

GUIDE

2шт.

Part of spring kit, P/N S233955

1шт.

35

NSS

NOT SOLD SEPARAT

RING - snap

2шт.

Part of spring kit, P/N S233955

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

S233957

KIT - actuator assembly, Includes: Ref. 1 thru 9, REPLACEMENT ONLY

1шт.

S233953

KIT - pin assembly, Includes: Ref. 10 thru 12, REPLACEMENT ONLY

1шт.

S238633

KIT - pin and spring assembly, Includes: Ref. 10 thru 18 and 21, REPLACEMENT ONLY

1шт.

S234035

SEAL

KIT - seal, Includes: Ref. 15 thru 18 and 21, REPLACEMENT ONLY

1шт.

S233891

SHOCK ABSORBER

KIT - spring assembly, Includes: Ref. 22 thru 30, REPLACEMENT ONLY

1шт.

S233955

SPRING KIT

KIT - spring, Includes: Ref. 32 thru 35, REPLACEMENT ONLY

1шт.
