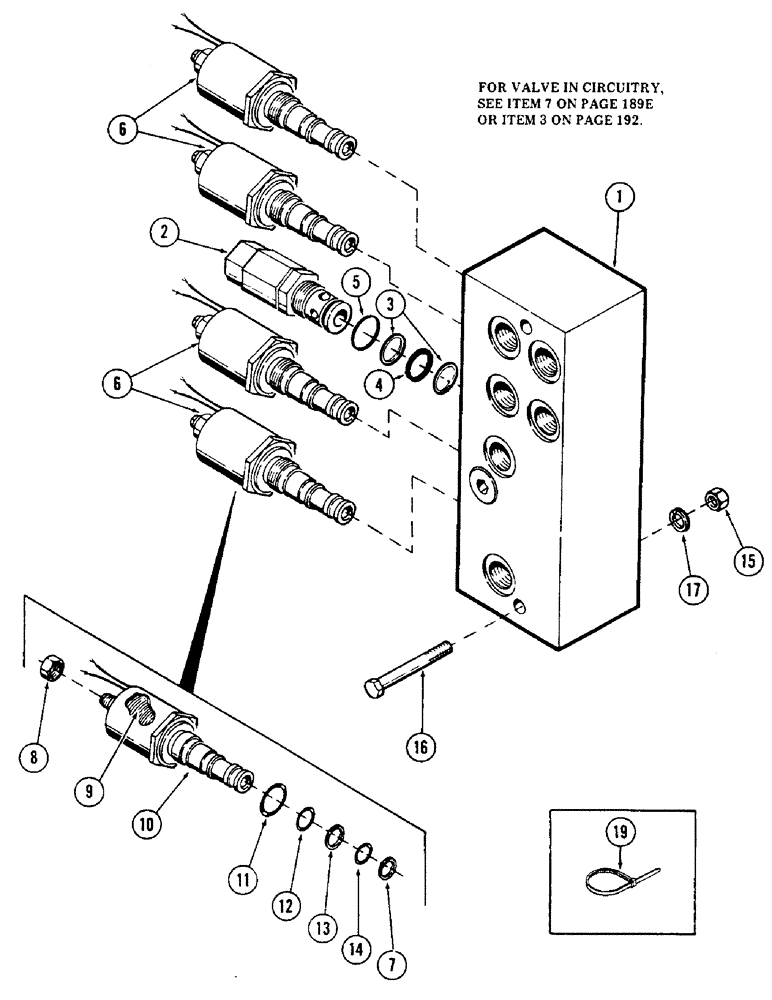

Запчасти Case 50 (246) - SOLENOID RELIEF VALVE, (USED ON UNITS W/ SN. 6280345 & AFTER) (SN. 6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

S237984

VALVE - solenoid relief, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

S215248

CARTRIDGE

- relief, Includes: Ref. 3 - 5

1шт.

3

S116423

RING, SNAP

RING - back up

2шт.

4

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

"O" RING

1шт.

5

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING

1шт.

6

S237942

VALVE

CARTRIDGE - solenoid, Includes: Ref. 7 - 13

4шт.

7

S109475

BACK-UP RING

- back-up

1шт.

8

S109473

NUT

1шт.

9

S116422

COIL

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - cartridge

1шт.

11

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

12

S5605

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

"O" RING - .364" ID x .500" OD

1шт.

13

S116420

BACK-UP RING

RING - back-up

1шт.

14

S5604

O-RING

"O" RING - .301" ID x .437" OD

1шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - self locking 5/16" NC (Replaces 131-69)

2шт.

16

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

17

195-102

WASHER,1/4"

- lock 5/16"

2шт.

18

223-61

TERMINAL CONNECTOR,14 - 16

NUT - self locking 5/16" NC

2шт.

19

S73387

CLIP

TIE - nylon (Use with wires from mono block)

1шт.
