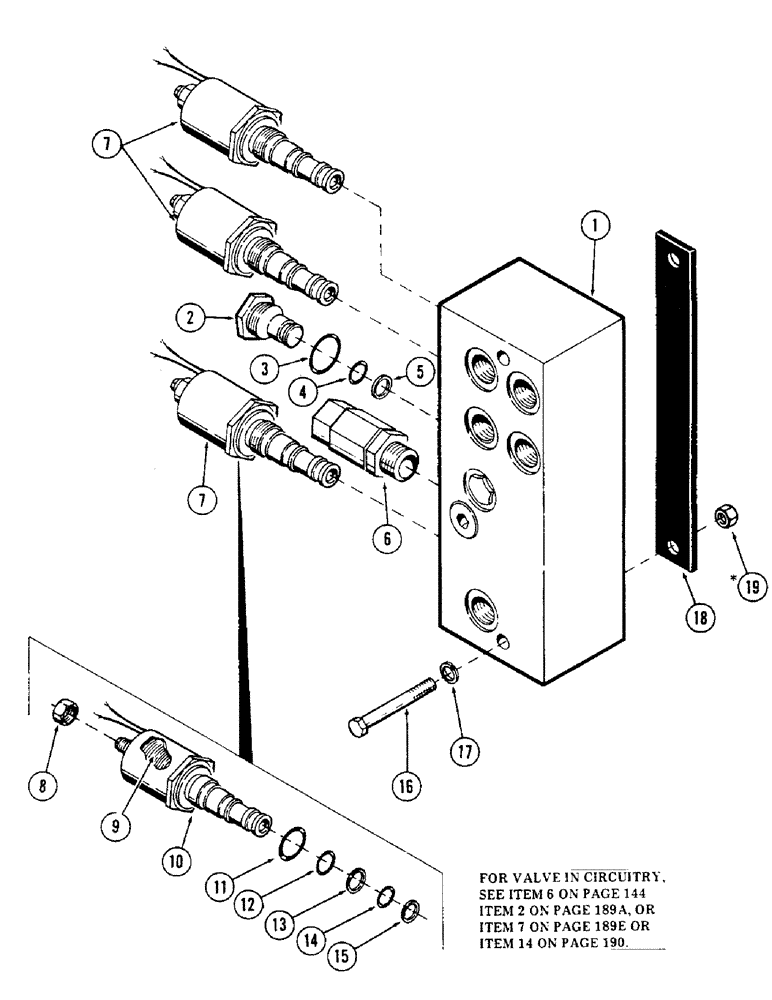

Запчасти Case 50 (244) - SOLENOID RELIEF VALVE, (USED ON UNITS W/ SN. 6279926-6280344) (SN. 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

S231604

VALVE - solenoid relief, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG

1шт.

3

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

4

S5605

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

"O" RING - .364" ID x .500" OD

1шт.

5

C11865

RING

WASHER - back-up (Replaces S109476)

1шт.

6

S215248

CARTRIDGE

- relief, Includes: Ref. 8 - 15

1шт.

7

S231452

VALVE

CARTRIDGE - solenoid, Includes: Ref. 8 - 15

3шт.

8

S109473

NUT

1шт.

9

S109474

COIL

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - cartridge

1шт.

11

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

12

S5605

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

"O" RING - .364" ID x .500" OD

1шт.

13

C11865

RING

- back-up (Replaces S109476)

1шт.

14

S5604

O-RING

"O" RING - .301" ID x .437" OD

1шт.

15

S109475

BACK-UP RING

- back-up

1шт.

16

113-159

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

2шт.

17

195-102

WASHER,1/4"

- lock 5/16"

2шт.

18

S232149

PAD - rubber mounting

1шт.

19

131-462

NUT,5/16"-18

NUT - self locking 5/16" NC

2шт.

20

223-61

TERMINAL CONNECTOR,14 - 16

EYELET - (For ground wire) (Not illustrated)

1шт.

21

S73387

CLIP

TIE - nylon (Use with wires from mono block)

1шт.
