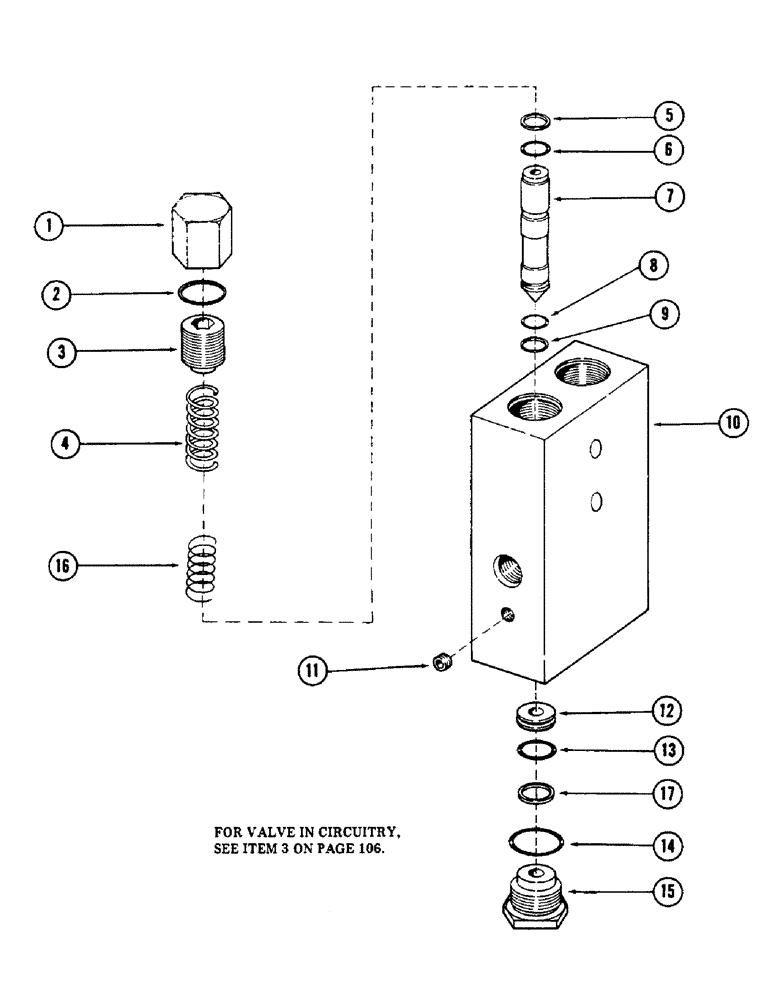

Запчасти Case 50 (242) - POWER SENSING RELIEF VALVE, (S/N 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

S509073

VALVE

- power sensing relief, Includes: Ref. 1 - 18

1шт.

1

S99874

CAP

2шт.

2

S99870

WASHER

- seal

2шт.

Part of seal and "O" ring kit, P/N S107816

1шт.

3

S99875

SCREW

- adjuster

2шт.

4

S99872

SPRING

2шт.

5

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- back-up

2шт.

ANOTHER RING USED (NOT A SUB) L30012

1шт.

Part of seal and "O" ring kit, P/N S107816

1шт.

6

S6144

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

"O" RING - .364" ID x .500" OD

2шт.

Part of seal and "O" ring kit, P/N S107816

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON

2шт.

8

W13170

O-RING,0.395" ID x 0.04" Width

"O" RING

2шт.

Part of seal and "O" ring kit, P/N S107816

1шт.

9

S99879

RING

- back-up

2шт.

Part of seal and "O" ring kit, P/N S107816

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

11

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

(Replaces S14045) Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

12

S99946

SEAT

2шт.

13

S5608

O-RING

"O" RING - .551" ID x .687" OD

2шт.

Part of seal and "O" ring kit, P/N S107816

1шт.

14

S6063

RING

"O" RING - .755" ID x .949" OD

2шт.

Part of seal and "O" ring kit, P/N S107816

1шт.

15

S99876

CONNECTOR, ELEC

CONNECTOR - reducing

2шт.

16

S107871

SPRING

- compression

2шт.

17

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

- back-up (Replaces L30012)

2шт.

Part of seal and "O" ring kit, P/N S107816

1шт.

18

S107816

SEAL ASSY.

KIT - seal and "O" ring, Includes: Ref. 2, 5, 6, 8, 9, 13, 14 and 17)

1шт.
