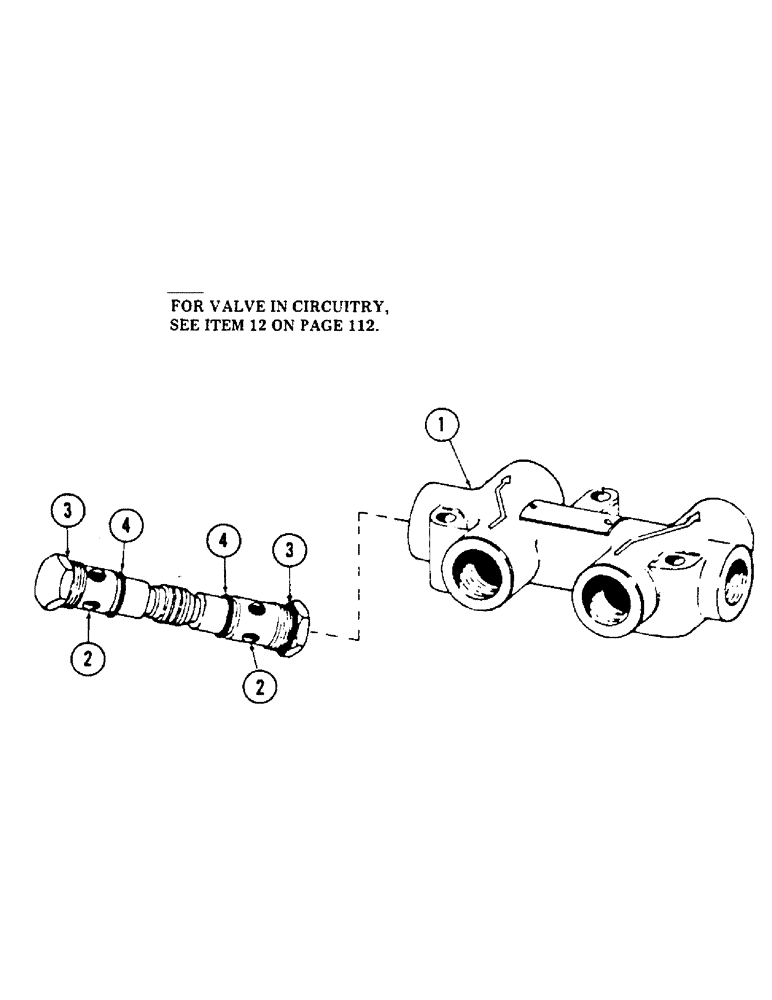

Запчасти Case 50 (238) - OPTIONAL LEVELER CHECK VALVE, (S/N 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

S33333

CHECK VALVE

VALVE - leveler check, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

S61961

CHECK VALVE

CARTRIDGE - double acting, Includes: Ref. 3 and 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug (Replaces S12184)

2шт.

4

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - sleeve and poppet (Replaces S12584)

2шт.

5

S96675

SPRING

- (Not illustrated)

1шт.
