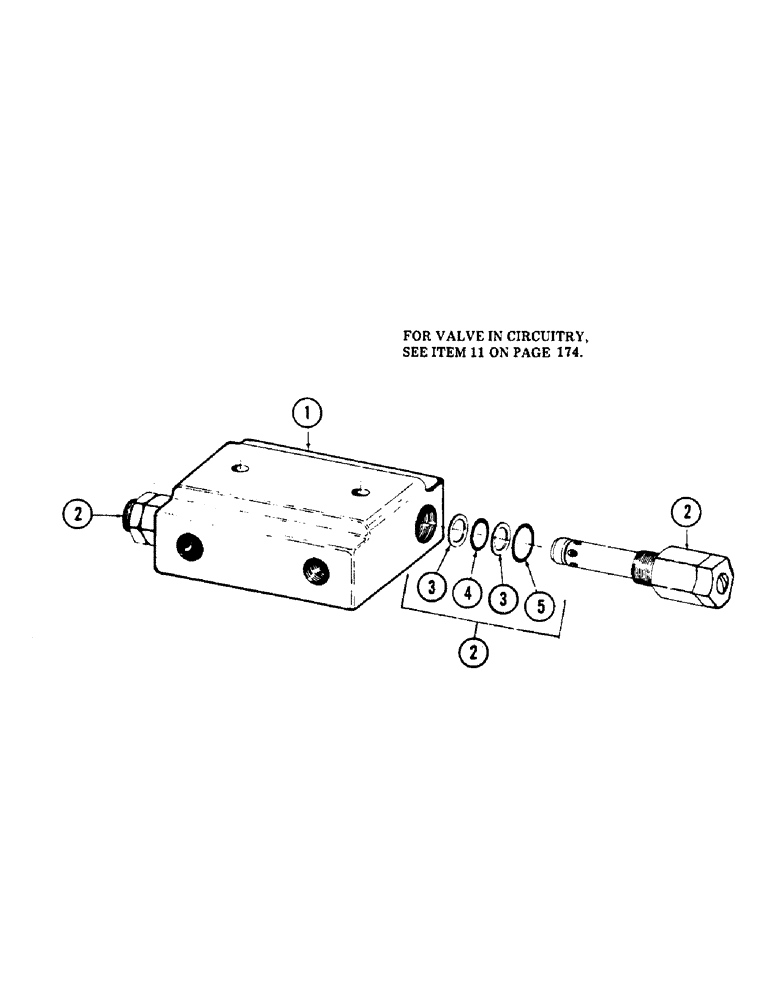

Запчасти Case 50 (236) - SWING INLINE RELIEF VALVE, (S/N 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

S236820

VALVE

- swing inline relief (Supersedes S37296M2), Includes: Ref. 1 - 5

1шт.

1

S114840

HOUSING

- valve

1шт.

2

S73968

CARTRIDGE

- relief, Includes: Ref. 3 - 5

2шт.

3

S79384

RING

- back up

2шт.

4

S6483

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" RING - .924" ID x 1.125" OD

1шт.

5

S6579

O-RING

"O" RING - 1.046" ID x 1.312" OD

1шт.
