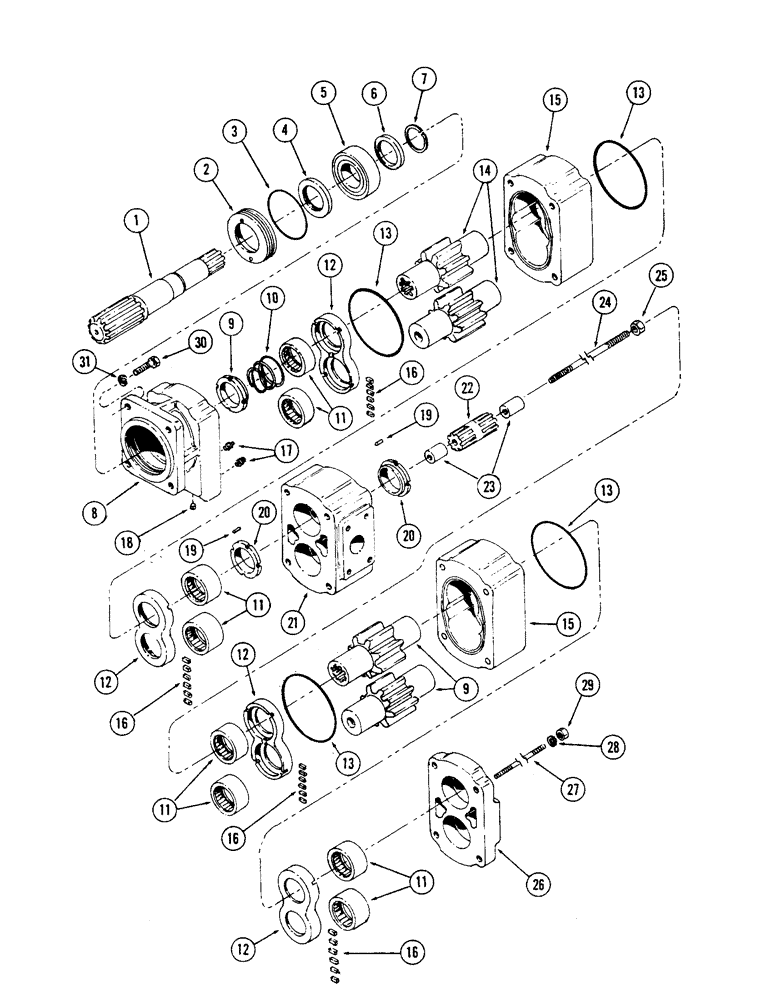

Запчасти Case 50 (232) - SWING MOTOR, (USED ON UNITS WITH SERIAL NUMBER 6279926 THRU 6280217)(SN.6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

NSS

NOT SOLD SEPARAT

MOTOR - swing, Includes: Ref. 1 - 29

1шт.

When complete swing motor replacement is required order S513584 on figure 234.

1шт.

1

D31958

SHAFT

1шт.

2

S70415

RETAINER

RING - retaining

1шт.

3

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

4

S70416

OIL SEAL

1шт.

5

S63513

TAPERED BEARING

BEARING - roller

1шт.

6

S63524

SPACER

1шт.

7

B18208

SNAP RING,#100, Ext

(Replaces D31951) #100, Ext

1шт.

8

S109207

COVER - shaft end

1шт.

9

D31952

BUSHING

SEAL - ring

1шт.

10

D31953

VALVE SPRING

SPRING

1шт.

11

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

8шт.

12

D31955

PLATE

- thrust

4шт.

13

D41391

O-RING

"O" RING - (Gasket) 4.109" ID x 4.375" OD

4шт.

14

A24838

GEAR SET

(Matched set)

2шт.

15

S74508

HOUSING - gear

2шт.

16

D35673

SEAL

- pocket

24шт.

17

S61749

VALVE

CHECK ASSEMBLY

2шт.

18

S95139

PLUG

1шт.

19

138-53

LOCK PIN,1/8" x 1/2", Slotted

PIN, 1/8" x 1/2", Slotted

2шт.

20

S63528

BUSHING

2шт.

21

S109022

CARRIER

- bearing

1шт.

22

S63530

SHAFT

1шт.

23

S70136

SPACER

2шт.

24

S109026

STUD

1шт.

25

S63533

LOCK NUT

NUT - lock

1шт.

26

A24842

COVER - port end

1шт.

27

S109025

STUD

4шт.

28

D31957

WASHER

4шт.

29

131-1236

LOCK NUT,5/8"-18, GC

NUT - 5/8" NC (Replaces 129-561)

4шт.

30

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
