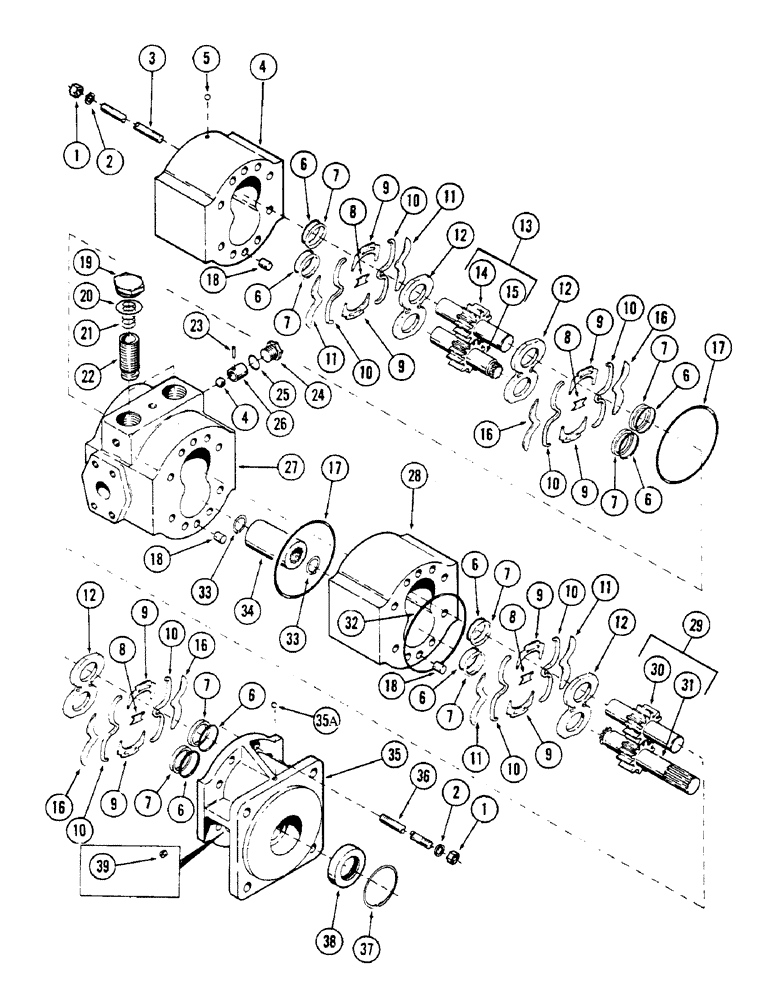

Запчасти Case 50 (230) - TRACK DRIVE MOTOR, (DUAL SPEED), (S/N 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

S511216

MOTOR

- track drive, Includes: Ref. 1 - 39

2шт.

1

L32829

NUT

16шт.

2

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

16шт.

3

S109072

STUD - rear section

8шт.

4

S109070

BODY

- rear section, Includes: Ref. 5

1шт.

Part of rear section kit, P/N S109078

1шт.

5

211-101

BALL,1/4" Dia, Stainless

2шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

L32840

BUSHING

- (Not illustrated)

2шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

6

S113612

O-RING

"O" RING - (Supersedes S98648)

8шт.

Part of pressure balance kit, P/N S109079

1шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

7

S113607

OIL SEAL

RING - back-up (Supersedes S98642)

8шт.

Part of pressure balance kit, P/N S109079

1шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

8

S113609

SEPARATOR

- center (Supersedes S98644)

4шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

9

S113608

SEPARATOR

- end (Supersedes S98643)

8шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

10

S108887

STRAP

STRIP - sealing

8шт.

Part of pressure balance kit, P/N S109079

1шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

11

S108884

LARGE PLATE

PLATE - isolation (Bottom)

4шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

12

S98638

PLATE

- pressure

4шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

13

S109081

KIT

- rear gear, Includes: Ref. 14 and 15

1шт.

Part of rear section kit, P/N S109078

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

16

S108885

LARGE PLATE

PLATE - isolation (Top)

4шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

17

S113611

O-RING

"O" RING - (Supersedes S108467)

2шт.

Part of pressure balance kit, P/N S109079

1шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

18

D41414

PIN

DOWEL

6шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

19

S98723

PLUG

2шт.

Part of rear section kit, P/N S109078

1шт.

20

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING (Replaces S98719)

2шт.

Part of rear section kit, P/N S109078

1шт.

21

S98718

SPRING

2шт.

Part of rear section kit, P/N S109078

1шт.

22

S109075

PISTON

2шт.

Part of rear section kit, P/N S109078

1шт.

23

138-19

Pin, 5/64" x 7/16", Slotted 5/64" x 7/16", Slotted

2шт.

Part of rear section kit, P/N S109078

1шт.

24

S98649

PLUG

2шт.

Part of rear section kit, P/N S109078

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

Part of rear section kit, P/N S109078

1шт.

26

S98720

SEAT

2шт.

Part of rear section kit, P/N S109078

1шт.

27

S109074

PLATE - bearing

1шт.

Part of rear section kit, P/N S109078

1шт.

L32840

BUSHING

- (Not illustrated)

2шт.

28

S109069

BODY

- front section

1шт.

Part of front section kit, P/N S109077

1шт.

L32840

BUSHING

- (Not illustrated)

2шт.

29

S109080

GEAR

KIT - front gear, Includes: Ref. 30 and 31

1шт.

Part of front section kit, P/N S109077

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

31

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

32

S113610

O-RING

"O" RING - (Supersedes S97041)

1шт.

Part of pressure balance kit, P/N S109079

1шт.

Part of front section kit, P/N S109077

1шт.

Part of seal kit, P/N S98651

1шт.

33

A36277

SNAP RING,1.125", Int, #112

2шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

34

S109076

COUPLING

- spline

1шт.

Part of front section kit, P/N S109077

1шт.

Part of rear section kit, P/N S109078

1шт.

35

S109073

FLANGE

- mounting, Includes: Ref. 35A

1шт.

Part of front section kit, P/N S109077

1шт.

35a

211-101

BALL,1/4" Dia, Stainless

2шт.

L32840

BUSHING

- (Not illustrated)

2шт.

36

S109071

STUD

- front section

8шт.

37

D41419

RING

- snap

1шт.

Part of front section kit, P/N S109077

1шт.

38

S98646

SEAL

1шт.

Part of front section kit, P/N S109077

1шт.

Part of seal kit, P/N S98651

1шт.

39

L35776

PLUG

- seal drain

2шт.

Part of front section kit, P/N S109077

1шт.

40

S98651

SEAL

KIT - seal, Includes: Ref. 32 and 38

1шт.

41

S109077

VALVE BLOCK

KIT - front section, Includes: Ref. 5 thru 12, 16 thru 18, 28, 29, 32 thru 35 and 37 thru 39

1шт.

42

S109078

VALVE BLOCK

KIT - rear section, Includes: Ref. 4 thru 13, 16 thru 27, 33 and 34

1шт.

43

S109079

KIT

- pressure balance, Includes: Ref. 6, 7, 10, 17 and 32

1шт.
