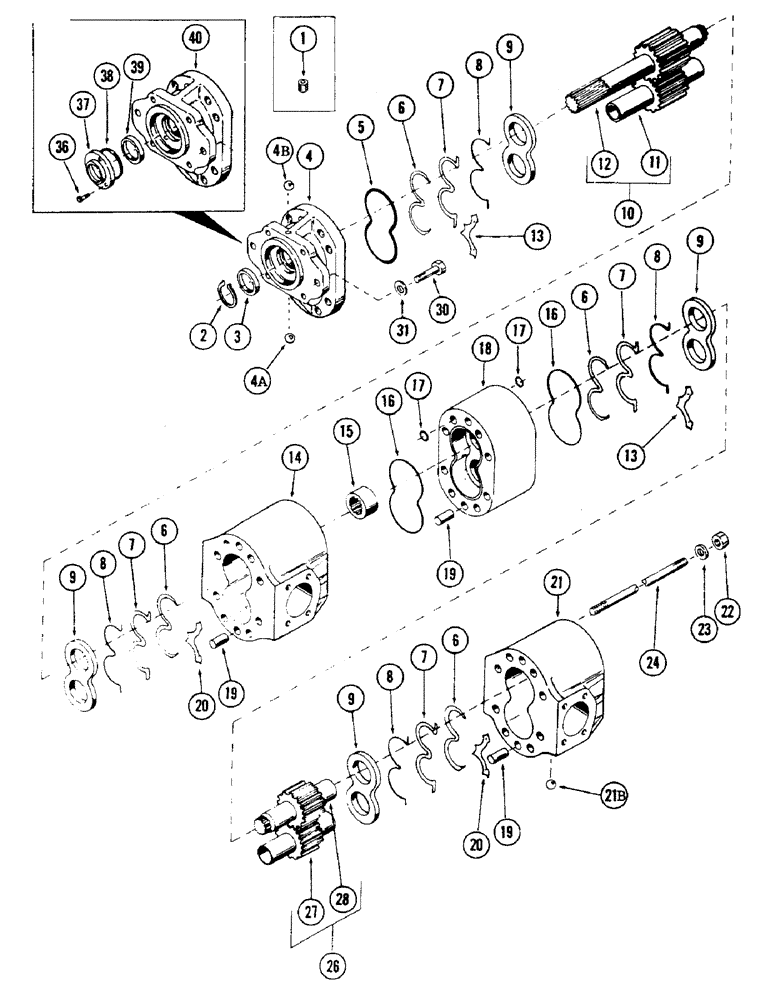

Запчасти Case 50 (226) - MAIN HYDRAULIC PUMP, (USED WITH CASE 504BDT DIESEL ENGINE),(SN.6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

S513590

HYDRAULIC PUMP

PUMP - main hydraulic (Supersedes S510289 and S513111), Includes: Ref. 1 - 16

1шт.

1

L35776

PLUG

- (Into discharge port)

1шт.

2

D41419

RING

- snap

1шт.

Part of front section kit, P/N S236844

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL (Replaces D41418)

1шт.

Part of seal kit, P/N S113934

1шт.

Part of front section kit, P/N S236844

1шт.

4

S112363

FLANGE

Includes: Ref. 4A and 4B

1шт.

Part of front section kit, P/N S236844

1шт.

4a

211-101

BALL,1/4" Dia, Stainless

1шт.

Part of front section kit, P/N S236844

1шт.

Part of rear section kit, P/N S236845

1шт.

4b

S113599

BALL

1шт.

Part of front section kit, P/N S236844

1шт.

S109040

BUSHING

- (Not illustrated)

1шт.

Part of front section kit, P/N S236844

1шт.

5

S98712

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

1шт.

Part of seal kit, P/N S113934

1шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236844

1шт.

6

S108490

OIL SEAL

RING - retainer

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236844

1шт.

Part of rear section kit, P/N S236845

1шт.

7

S114828

OIL SEAL

RING - back up

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236844

1шт.

Part of rear section kit, P/N S236845

1шт.

8

S108891

SEAL

O-RING

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236844

1шт.

Part of rear section kit, P/N S236845

1шт.

9

S114855

PLATE

- pressure

4шт.

Part of front section kit, P/N S236844

1шт.

Part of rear section kit, P/N S236845

1шт.

10

S113931

KIT

- front drive gear, Includes: Ref. 11 and 12

1шт.

Part of front section kit, P/N S236844

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - idler (Front)

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - drive (Front)

1шт.

13

S108894

PLATE

- isolation (Top)

2шт.

Part of front section kit, P/N S236844

1шт.

Part of rear section kit, P/N S236845

1шт.

14

S109058

HYDRAULIC PUMP

BODY - front section

1шт.

Part of front section kit, P/N S236844

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

Part of front section kit, P/N S236844

1шт.

15

S108895

COUPLING

- splined

1шт.

Part of rear section kit, P/N S236845

1шт.

16

S98713

O-RING

2шт.

17

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- stud stabilizer

24шт.

18

S108488

PLATE - bearing, Includes: Ref. 19 - 34

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

19

D41414

PIN

DOWEL

6шт.

20

S108893

PLATE

- isolation (Bottom)

2шт.

21

S109059

BODY

- rear section, Includes: Ref. 21A

1шт.

21a

211-101

BALL,1/4" Dia, Stainless

1шт.

S109040

BUSHING

- (Not illustrated)

1шт.

22

129-167

JAM NUT,Jam, 5/8"-18, G5

- 5/8" NF (Replaces 25-1510

8шт.

23

S98714

WASHER

- flat 5/8"

8шт.

24

S108898

STUD

8шт.

26

S112365

KIT

- rear drive gear, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

GEAR - idler (Rear)

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - drive (Rear)

1шт.

30

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Mounts pump to engine) (Replaces 13-1024) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

31

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat 5/8"

2шт.

32

S113934

KIT

- seal, Includes: Ref. 3 and 5

1шт.

33

S109083

KIT

- pressure balance, Includes: Ref. 5 thru 8, 16 and 17

1шт.

34

S236844

HOUSING

KIT - front section, Includes: Ref. 2 thru 10, 13 thru 16, 19 and 20

1шт.

35

S236845

BODY

KIT - rear section, Includes: Ref. 4A, 6 thru 9, 13, 15 thru 21 and 26

1шт.

36

26-410

BOLT - 1/4" - 20 NC x 5/8", refs listed below were used on some earlier units Hex, 1/4"-20 x 5/8", G8, Full Thd

3шт.

37

S108897

PLATE - seal, refs listed below were used on some earlier units

1шт.

38

S5633

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- 2.864" ID x 3.000" OD, refs listed below were used on some earlier units

1шт.

39

S108896

SEAL, refs listed below were used on some earlier units

1шт.

40

S104895

FLANGE

refs listed below were used on some earlier units

1шт.
