(224) - HYDRAULIC OIL FILTER, (USED ON UNITS WITH SERIAL NUMBER 6280345 & AFTER)(SN.6279926 & AFTER)

Запчасти Case 50 (224) - HYDRAULIC OIL FILTER, (USED ON UNITS WITH SERIAL NUMBER 6280345 & AFTER)(SN.6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

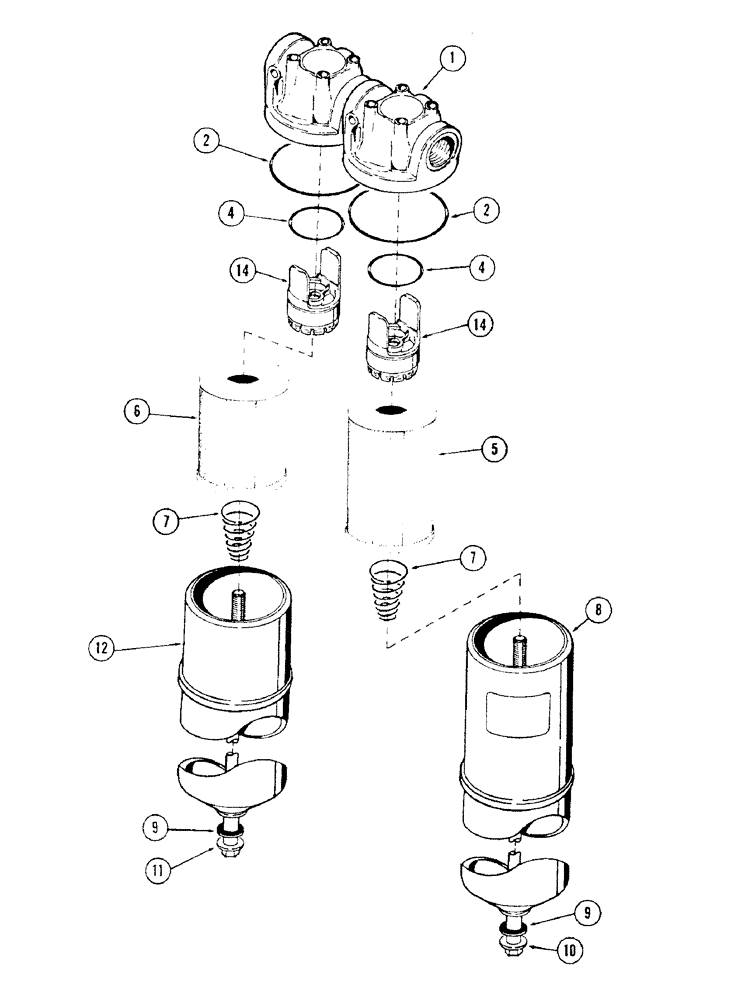

Схема запчастей Case 50 - (224) - HYDRAULIC OIL FILTER, (USED ON UNITS WITH SERIAL NUMBER 6280345 & AFTER)(SN.6279926 & AFTER) (35) - HYDRAULIC SYSTEMS
11
2
2
1
12
6
10
14
7
14
5
7
4
8
9
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S513707

FILTER, ENGINE OIL

FILTER - hydraulic oil, Includes: Ref. 1 - 12

2шт.

1

S116426

HEAD

- filter, Includes: Ref. 2

1шт.

2

S107789

O-RING

2шт.

3

S107803

VALVE

- by-pass (Replaces S108483), Includes: Ref. 4

1шт.

4

S107967

O-RING,2.109" ID x 0.139" Width

2шт.

5

S116428

FILTER, ENGINE OIL

ELEMENT (10 micron filter)

1шт.

6

S116427

ELEMENT

STRAINER - (100 mesh screen)

1шт.

7

S104930

SPRING

- coil

2шт.

8

S113854

BOX

HOUSING - filter

1шт.

9

S107793

SEALING WASHER

WASHER - gasket

2шт.

10

S115824

BOLT

- hex. hd.

1шт.

11

S107794

BOLT

- hex hd

1шт.

12

S116429

HOUSING

- filter

1шт.

13

S105892

ELEMENT

- filter (Used as element to flush hydraulic systems) (Not illustrated)

1шт.

14

S116766

VALVE

2шт.
