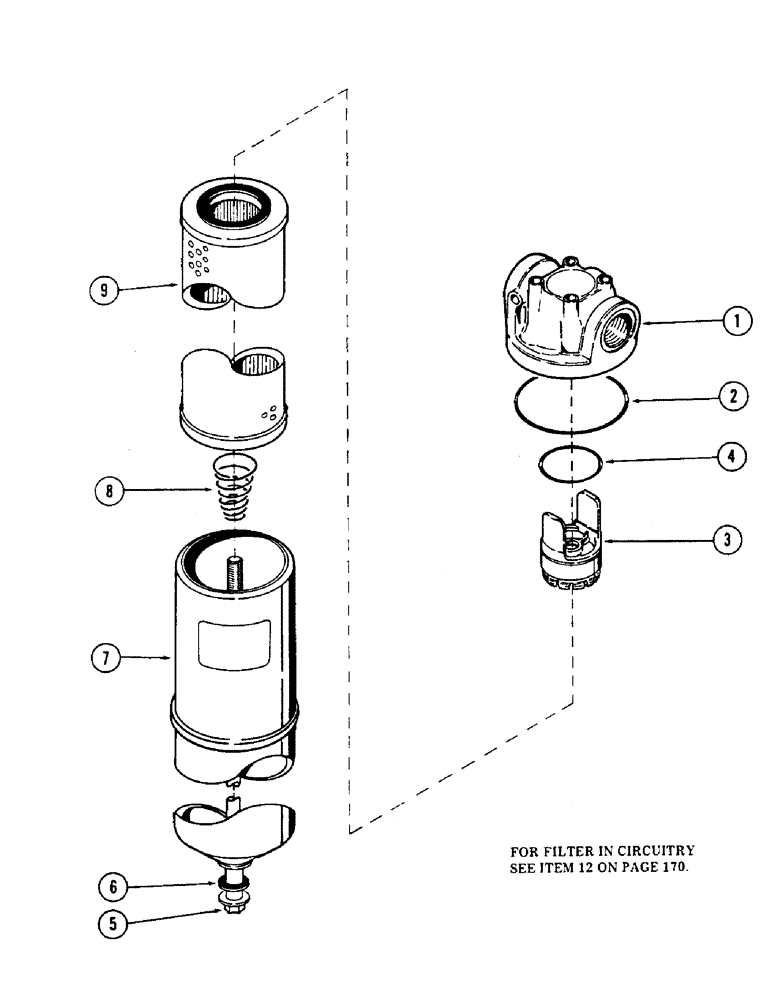

Запчасти Case 50 (222) - HYDRAULIC OIL FILTER, (USED ON UNITS WITH SERIAL NUMBER 6279926 - 6280344)(SN.6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

S513098

FILTER - hydraulic oil (Supersedes S511222), Includes: Ref. 1 - 9

2шт.

1

S108482

HEAD

1шт.

2

S107789

O-RING

"O" RING

1шт.

3

S108483

FILTER

INDICATOR, Includes: Ref. 4

1шт.

4

S107967

O-RING,2.109" ID x 0.139" Width

"O" RING

1шт.

5

S115824

BOLT

CPSW - (Supersedes S108485)

1шт.

6

S107793

SEALING WASHER

GASKET

1шт.

7

S113854

BOX

HOUSING (Supersedes S108484)

1шт.

8

S104930

SPRING

1шт.

9

S104929

FILTER, ELEMENT

ELEMENT - filter

1шт.

10

S105892

ELEMENT

- filter (Use as element to flush hydraulic system) (Not illustrated)

1шт.
