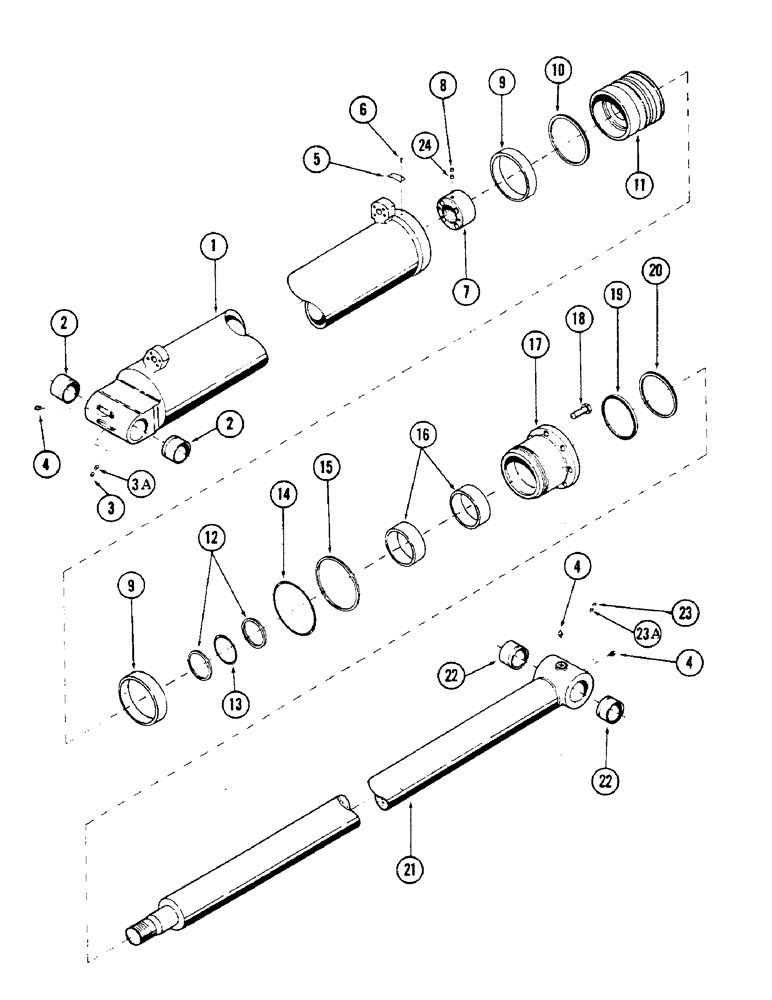

Запчасти Case 50 (206) - TOOL CYLINDER, (6.50" ID X 36.30" STROKE), (S/N 6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

S955021

CYLINDER - tool, Includes: Ref. 1 - 24

1шт.

1

S608962

TUBE - cylinder, Includes: Ref. 2 - 3A 53" L

1шт.

2

S229548

BUSHING

2шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8"

2шт.

3a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8"

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube 1/8" NPT (Straight)

4шт.

5

S107989

TAG - identification

1шт.

6

S23395

SCREW

- drive no. 7 NC x 5/16"

2шт.

7

S510006

NUT

- locking

1шт.

8

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set 1/4" NC x 3/8"

1шт.

9

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR (Supersedes S228610)

2шт.

Part of seal kit, P/N S613321

1шт.

10

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL

1шт.

Part of seal kit, P/N S613321

1шт.

11

S511135

PISTON

1шт.

12

S114154

BACK-UP RING

RING - back-up (Supersedes D36092)

2шт.

Part of seal kit, P/N S613321

1шт.

13

S6594

O-RING,2.484" ID x 2.762" OD x 0.139"

"O" RING - 2.484" ID x 2.762" OD (Supersedes S6320)

1шт.

Part of seal kit, P/N S613321

1шт.

14

S6801

O-RING,5.975" ID x 6.525" OD x 0.275"

"O" RING - 5.975" ID x 6.525" OD (Supersedes S6030)

1шт.

Part of seal kit, P/N S613321

1шт.

15

S114994

WASHER

- back-up (Supersedes S114408 and S105308)

1шт.

Part of seal kit, P/N S613321

1шт.

16

S236422

OIL SEAL

RING - wear (Supersedes S227929)

2шт.

Part of seal kit, P/N S613321

1шт.

17

S511134

HEAD ASSY.

HEAD

1шт.

WITH THE CHANGE OVER TO NEW HEAD PART NUMBER S515437 ANOTHER SEAL IS USED IN FRONT OF REF 16, NEW PART IS S240333.

1шт.

18

28-1236

CAPSCREW,Hex, 3/4" - 16 x 2 1/4", Gr 8

CPSW - 3/4" NC x 2-1/4" gr 8

6шт.

19

S116473

SEAL

- rod (Supersedes S103790)

1шт.

Part of seal kit, P/N S613321

1шт.

20

S104444

WIPER

1шт.

Part of seal kit, P/N S613321

1шт.

21

S511136

ROD ASSY.

ROD, Includes: Ref. 22 - 23A

1шт.

22

S229548

BUSHING

2шт.

23

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8"

2шт.

23a

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set 3/8" NC x 3/8"

2шт.

24

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set 1/4" NC x 3/8"

1шт.

25

S613321

KIT

- seal, Includes: Ref. 9, 10, 12 thru 16, 19 and 20)

1шт.
