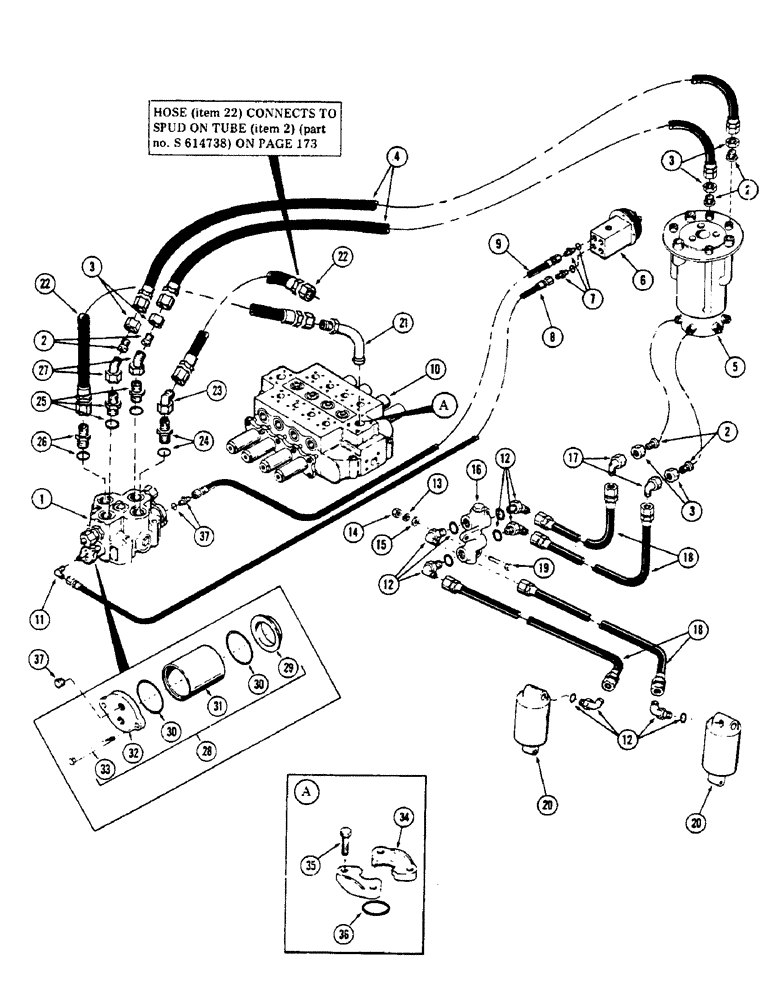

Запчасти Case 50 (200) - OPTIONAL LEVELER TUBING, (USED ON UNITS W/ OPTIONAL AUXILIARY)(USED ON UNITS W/ SN. 6280345 & AFTER) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - spool control (For breakdown, see figure 269A)

1шт.

2

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducing (3/4" x 1/2" tube reduction) 3/4" - 16 male 37 degrees flared

6шт.

3

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - sleeve (3/4" tube) 1-1/16" - 12 female 37 degrees flared

6шт.

4

S11231

HOSE ASSY.

HOSE - high pressure 3/8" ID x 68" long (With 3/4" - 16 female pressed on couplings)

2шт.

5

REF

INSTRUCTION

SWIVEL - 7-port hydraulic (For breakdown, see figure 260)

1шт.

6

REF

INSTRUCTION

VALVE - control (For breakdown, see figure 256)

1шт.

7

S7961

CONNECTOR, ELEC

CONNECTOR - (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

2шт.

8

S232016

HOSE - high pressure 3/8" ID x 100" long (With 9/16" - 18 female pressed on couplings)

1шт.

9

S232015

HOSE - high pressure 3/8" ID x 80" long (With 9/16" - 18 female pressed on couplings)

1шт.

10

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 260)

1шт.

11

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees (3/8" tube) 9/16" - 18 male x 1/8" NPT male 37 degrees flared

1шт.

12

S7939

ELBOW

- 90 degrees adjustable (1/2" tube) 3/4" - 16 male x 3/4" - 16 male 37 degrees flared

6шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING

6шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

15

195-102

WASHER,1/4"

- flat 1/4"

2шт.

16

REF

INSTRUCTION

VALVE - leveler check (For breakdown, see figure 238)

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degrees swivel (1/2" tube) 3/4" - 16 male x 3/4" - 16 female 37 degrees flared

2шт.

18

S11226

HOSE

- high pressure 3/8" ID x 20" long (With 3/4" - 16 female pressed on couplings)

4шт.

19

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

20

REF

INSTRUCTION

CYLINDER - leveler (For breakdown, see figure 210)

2шт.

21

S231594

TUBE ASSY.,1.25" OD x 6.2, 4.04" L

TUBE - hydraulic

1шт.

22

S401530

HOSE ASSY.

HOSE - high pressure 1" ID x 20" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

23

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degrees swivel (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

24

S66480

CONNECTOR, ELEC

CONNECTOR - long (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 male 37 degree flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

1шт.

25

S111648

CONNECTOR, ELEC

CONNECTOR

2шт.

26

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 male 37 degrees flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

1шт.

27

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degrees swivel (1/2" tube) 3/4" - 16 male x 3/4" - 16 female 37 degrees flared

1шт.

28

S232345

KIT

- spool end cap, Includes: Ref. 29 - 33

2шт.

29

S111267

WASHER

1шт.

30

S6394

O-RING

"O" RING

2шт.

31

S111268

SLEEVE

TUBE - cylinder

1шт.

32

S111269

HEAD

1шт.

33

61-652

CAPSCREW,3/8" - 16 x 3 1/4"

CPSW - 3/8" NC x 3-1/4" gr 8 (Replaces S95658)

2шт.

34

A12301

CLAMP,Half

CLAMP - tube

2шт.

35

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

36

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING

1шт.

37

221-661

PLUG,Hex Hd, 1/8"-27

- pipe 1/8" NPT male

2шт.
