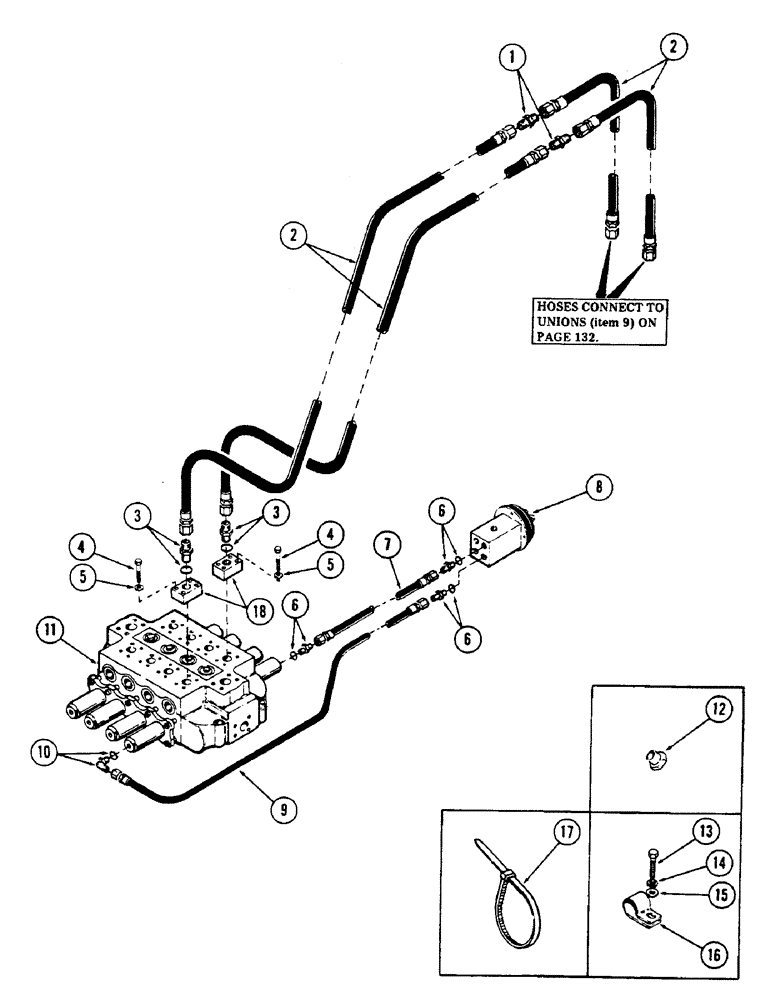

Запчасти Case 50 (194) - AUXILIARY TUBING, (USED ON UNITS W/ SN. 6280345 & AFTER)(SN. 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

1

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- (1/2" tube) 3/4" - 16 male x 3/4" - 16 male 37 degrees flared

2шт.

2

S75758

HOSE

- high pressure 3/8" ID x 246" long (With 3/4" - 16 female pressed on couplings)

4шт.

3

S7982

COUPLING, BREAK AWAY

CONNECTOR - (5/8" tube) 3/4" - 16 male x 7/8" - 14 male 37 degrees flared

2шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING

2шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

6

S7961

CONNECTOR, ELEC

CONNECTOR - (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

3шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

3шт.

7

S227395

HOSE

- high pressure 3/8" ID x 21" long (With 9/16" - 18 female pressed on couplings)

1шт.

8

REF

INSTRUCTION

VALVE - control (For breakdown, see figure 256)

1шт.

9

S232015

HOSE - high pressure 3/8" ID x 80" long (With 9/16" - 18 female pressed on couplings)

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

(3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

1шт.

11

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 260)

1шт.

12

218-775

PLUG,3/4"-16, 37 Degree

- (1/2" tube) 3/4"-16 male - 37 degrees flared

2шт.

13

26-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

CPSW - 5/16" NC x 3-1/4" gr 5 (Replaces CPSW in boom clamp)

10шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

15

195-102

WASHER,1/4"

- flat 5/16"

6шт.

16

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

16шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

14шт.

18

S237982

COVER

BLOCK - adapter

2шт.

19

S235910

BLOCK

- tapped (Welds to dipper) (Not illustrated)

3шт.
