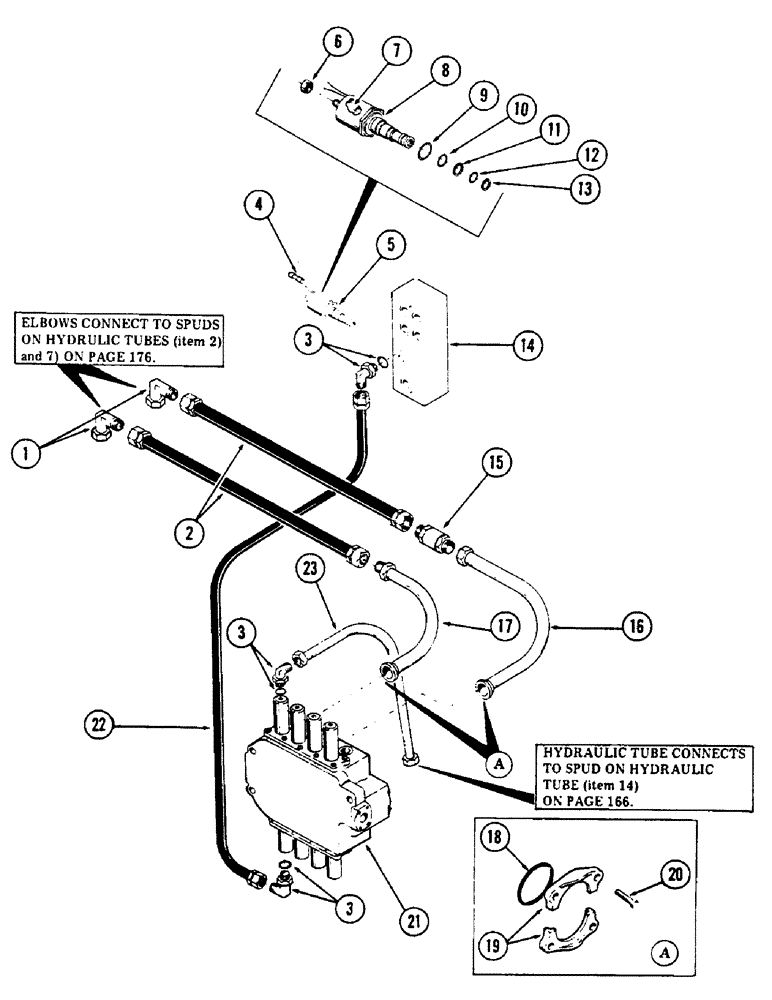

Запчасти Case 50 (190) - OPTIONAL FAST HOIST HYDRAULICS, (USED ON UNITS WITH SN. 6279926 - 6280344)(SN. 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

1

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degrees swivel (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 female 37 degrees flared

2шт.

2

S401530

HOSE ASSY.

HOSE - high pressure 1" ID x 20" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

3шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

3шт.

4

223-250

ROD, CONNECTING

CONNECTOR - wire

2шт.

5

S231452

VALVE

- solenoid cartridge (Replaces refs 2 thru 5 on figure 244 when optional fast hoist is used), Includes: Ref. 6 - 13

1шт.

6

S109473

NUT

1шт.

7

S109474

COIL

ASSEMBLY

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - cartridge

1шт.

9

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

10

S5605

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

"O" RING - .364" ID x .500" OD

1шт.

11

S109476

RING

- back-up

1шт.

12

S5604

O-RING

"O" RING - .301" ID x .437" OD

1шт.

13

S109475

BACK-UP RING

- back-up

1шт.

14

REF

INSTRUCTION

VALVE - solenoid relief (For breakdown, see figure 244)

1шт.

15

S93154

VALVE

- check

1шт.

16

S232099

TUBE ASSY.,1.25" OD x 8, 5.16" L

TUBE - hydraulic

1шт.

17

S232098

TUBE - hydraulic 1.25" OD x 4.01, 4.06" L

1шт.

18

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O" RING - 1.296" ID x 1.562" OD

2шт.

19

A12306

FLANGE

CLAMP - half flange

4шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

21

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 262)

1шт.

22

S227396

HOSE ASSY.

HOSE - high pressure 3/8" ID x 50" long (With 9/16" - 18 female pressed on couplings)

1шт.

23

S232147

TUBE - hydraulic 0.38" OD x 10.76, 5.46" L

1шт.
