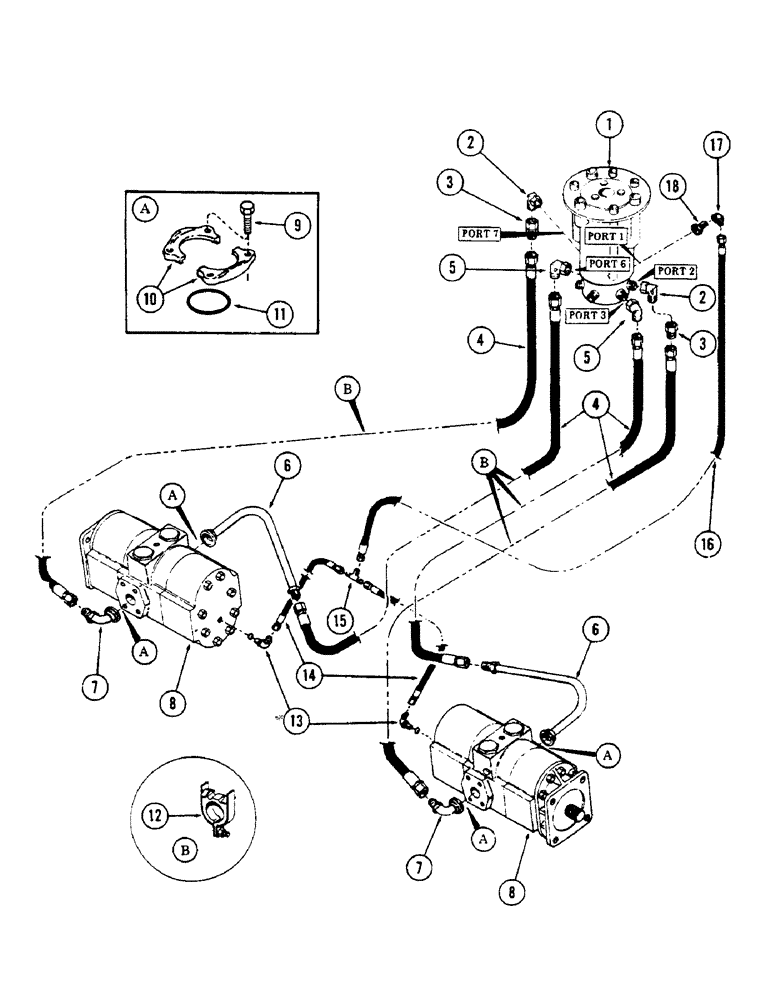

Запчасти Case 50 (188) - LOWER TRACK DRIVE MOTOR TUBING AND DRAIN, (USED ON UNITS W/ SN. 6280259 & AFTER)(SN. 6279926 & AFTER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

SWIVEL - 7 port hydraulic (For breakdown, see figure 218)

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degrees swivel (3/4" tube) 1-1/16" - 12 female 37 degrees flared

2шт.

3

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

ADAPTER - (3/4" tube) 1-1/16" - 12 female x 2-5/16" - 16 male 37 degrees flared

2шт.

4

S401534

HOSE ASSY.

HOSE - high pressure 1" ID x 66" long (With 1-5/16" - 12 female pressed on couplings)

4шт.

5

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degrees swivel (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 female 37 degrees flared

2шт.

6

S237163

TUBE,1.25" OD x 7.81, 10.28" L

- hydraulic (Motor rear port)

2шт.

7

S234440

ELBOW

TUBE - hydraulic (Motor front port)

2шт.

8

REF

INSTRUCTION

MOTOR - track drive (For breakdown, see figure 230)

2шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(2 per flange half) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

10

A14157

FLANGE

CLAMP - flange half

8шт.

11

S6589

O-RING

"O" RING - 1.859" ID x 2.137" OD

4шт.

12

S98324

CLAMP

4шт.

13

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

14

S227395

HOSE

- high pressure 3/8" ID x 21" long (With 9/16" - 18 female pressed on couplings)

2шт.

15

218-593

TEE,9/16"-18, 37 Degree

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

1шт.

16

S227396

HOSE ASSY.

HOSE - high pressure 3/8" ID x 50" long (With 9/16" - 18 female pressed on couplings)

1шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degrees swivel (3/8" tube) 9/16" - 18 male x 9/16" - 18 female 37 degrees flared

1шт.

18

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ADAPTER - (3/8" tube) 9/16" - 18 male x 1-5/16" - 12 female 37 degrees flared

1шт.
