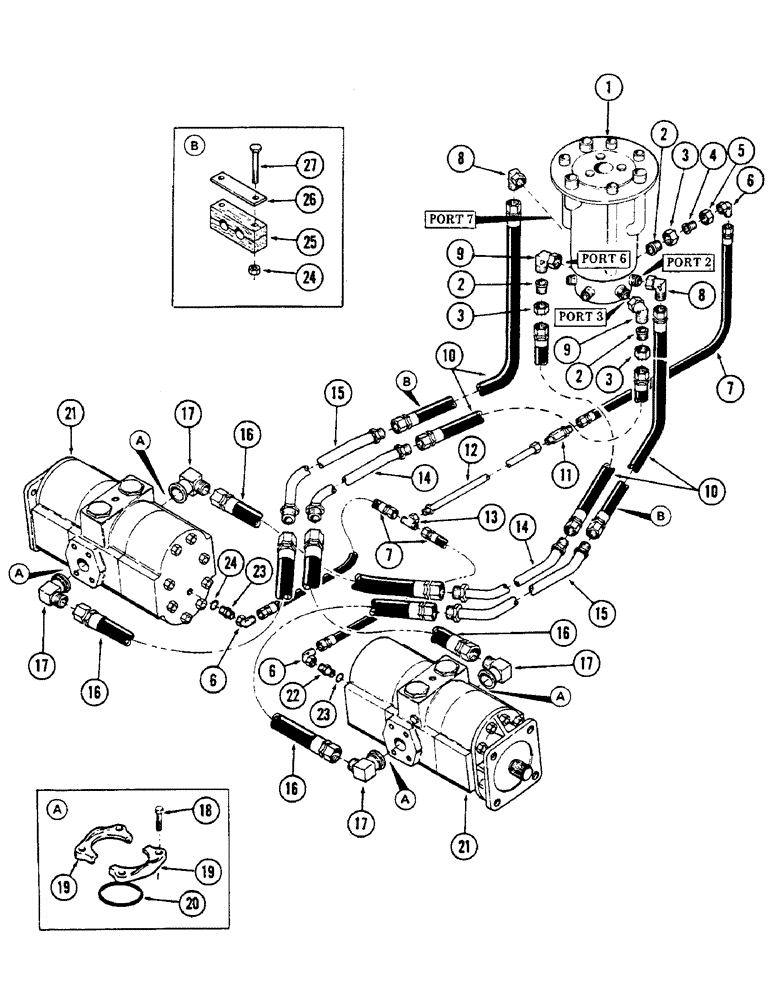

Запчасти Case 50 (186) - LOWER TRACK DRIVE MOTOR TUBING & DRAIN, (USED ON UNITS W/ SN. 6279926 - 6280258)(SN. 6279926 & AFTER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

SWIVEL - 7-port hydraulic (For breakdown, see figure 218)

1шт.

2

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducing (1" x 3/4" tube) 1-1/16" - 12 male 37 degrees flared)

3шт.

3

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve (1" tube) 1-5/16" - 12 female 37 degrees flared

3шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducing (3/4" x 1/2" tube) 3/4" - 16 male 37 degrees flared)

1шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - sleeve (3/4" tube) 1-1/16" - 12 female 37 degrees flared

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degrees swivel (1/2" tube) 3/4" - 16 male x 3/4" - 16 female 37 degrees flared

3шт.

7

S11230

HOSE

- high pressure 3/8" ID x 28" long (With 3/4" - 16 female pressed on couplings)

3шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degrees swivel (3/4" tube) 1-1/16" - 12 male x 1-1/16" - 12 female 37 degrees flared

2шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degrees swivel (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 female 37 degrees flared

2шт.

10

S15468

HOSE

- high pressure 3/4" ID x 28" long (With 1-1/16" - 12 female pressed on couplings)

4шт.

ANOTHER HOSE USED (NOT A SUB) PART IS D44752

1шт.

11

REF

INSTRUCTION

VALVE - check (For breakdown, see figure 240)

1шт.

12

S229167

TUBE - hydraulic

1шт.

13

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- (1/2" tube) 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 female 37 degrees flared

1шт.

14

S229165

TUBE - hydraulic

2шт.

15

S231141

TUBE - hydraulic 1" OD x 24.69, 2.8" L

2шт.

16

S8628

HOSE

- high pressure 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings)

4шт.

17

S225570

TUBE - hydraulic 1.25" OD

4шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

19

A14157

FLANGE

CLAMP - split flange

8шт.

20

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD

4шт.

21

REF

INSTRUCTION

MOTOR - track drive (For breakdown, see figure 230)

2шт.

22

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - (1/2" tube) 9/16" - 18 male x 3/4" - 16 male 37 degrees flared, Includes: Ref. 23

2шт.

23

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

2шт.

24

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC

8шт.

25

S229162

CLAMP - wood block

4шт.

26

S105361

BAR

4шт.

27

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.
