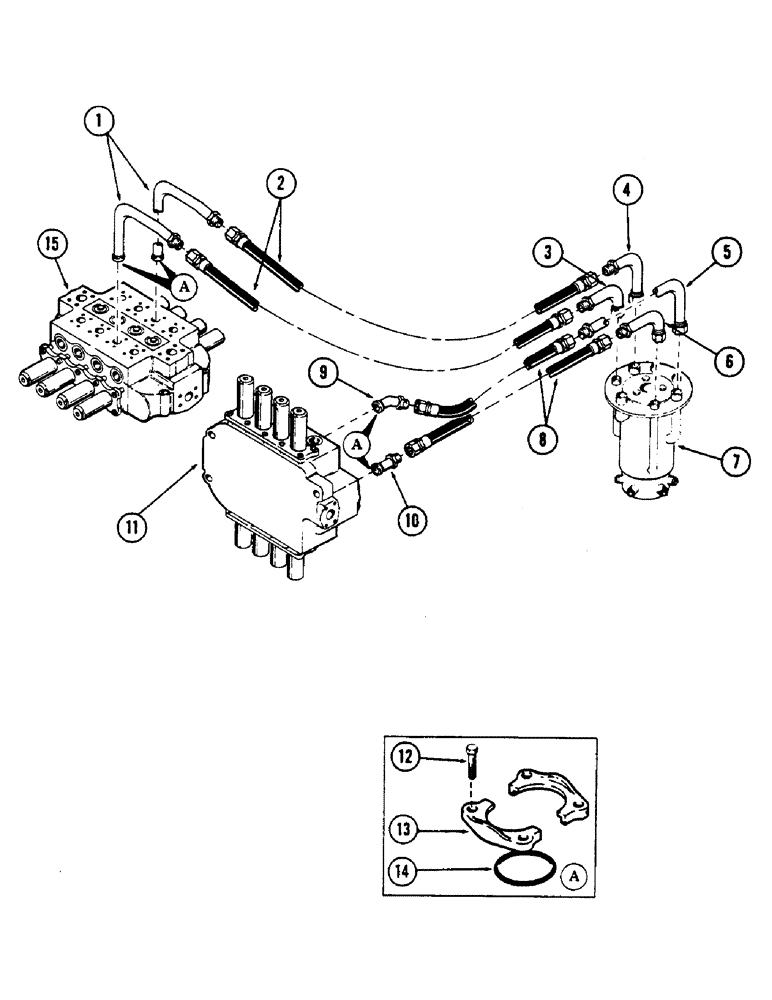

Запчасти Case 50 (184) - TRACK DRIVE MOTOR TUBING FROM VALVES TO SWIVEL, (S/N 6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

1

S231597

TUBE ASSY.,1.25" OD x 8.4, 6.86" L

TUBE - hydraulic

2шт.

2

S8628

HOSE

- high pressure 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

3

S232107

TUBE ASSY.,1" OD x 7.65, 4.10" L

TUBE - hydraulic

1шт.

4

S232827

TUBE ASSY.,1" OD x 6.67, 4.55" L

TUBE - hydraulic

1шт.

5

S232828

TUBE ASSY.,1" OD x 10.21, 6.68" L

TUBE - hydraulic

1шт.

6

S232107

TUBE ASSY.,1" OD x 7.65, 4.10" L

TUBE - hydraulic

1шт.

7

REF

INSTRUCTION

SWIVEL - 7-port hydraulic (For breakdown, see figure 218)

1шт.

8

S401530

HOSE ASSY.

HOSE - high pressure 1" ID x 20" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

9

S232093

FITTING

TUBE - hydraulic

1шт.

10

S232092

TUBE

- hydraulic

1шт.

11

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 262 or 263A)

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

13

A12306

FLANGE

- half

8шт.

14

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O" RING - 1.296" ID x 1.562" OD

4шт.

15

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 260)

1шт.
