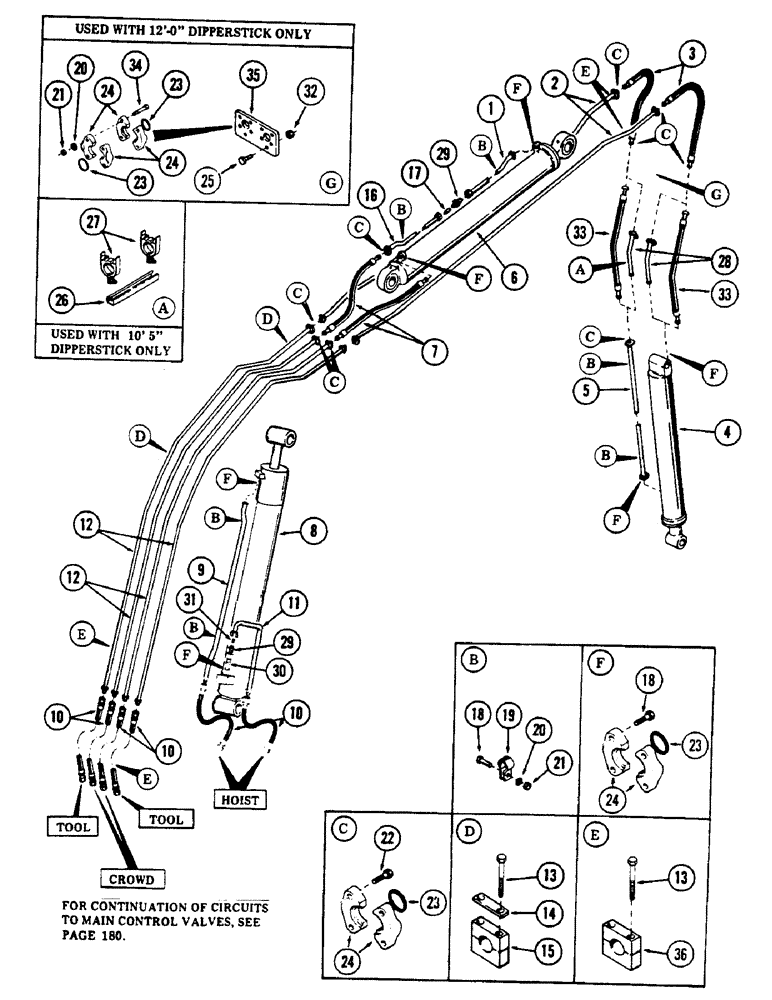

Запчасти Case 50 (182) - BOOM AND DIPPERSTICK TUBING, (USED ON UNITS W/ SN. 6280345 & AFTER)(SN. 6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

1

S237787

TUBE,1.25" OD x 25.72, 0.5" L

- hydraulic

1шт.

2

S511790

TUBE,1.25" OD x 121.67, 4.25" L

- hydraulic

2шт.

3

S229987

HOSE ASSY.

HOSE - high pressure

2шт.

4

REF

INSTRUCTION

CYLINDER - tool (For breakdown, see figure 206)

1шт.

5

S229983

TUBE,1.25" OD x 41.61, 0.75" L

- hydraulic

1шт.

6

REF

INSTRUCTION

CYLINDER - crowd (For breakdown, see figure 202)

1шт.

7

S229986

HOSE ASSY.

HOSE - high pressure

2шт.

8

REF

INSTRUCTION

CYLINDER - hoist (For breakdown, see figure 204)

1шт.

9

S513613

TUBE,1.25" OD

- hydraulic

1шт.

10

S233927

HOSE

- high pressure 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings)

6шт.

11

S513215

TUBE,1.25" OD

- hydraulic

1шт.

12

S610599

TUBE,1.25" OD x 99.13, 58.38" L

- hydraulic

4шт.

13

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

14

S112618

PLATE

1шт.

15

S112617

CLAMP

1шт.

16

S233817

TUBE,1.25" OD x 26.06, 0.56" L

- hydraulic

1шт.

17

S56252

REGULATOR

- flow

1шт.

18

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

19

S106606

CLAMP

1шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

129-104

NUT,7/16"-14, G5

1шт.

22

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

23

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1.484" ID x 1.750" OD

1шт.

24

A12301

CLAMP,Half

CLAMP - half flange

1шт.

25

113-358

BOLT,Hex, 7/16" - 14 x 1-5/8", Gr 5

CPSW - 7/16" NC x 1-5/16" gr 5

2шт.

26

S105626

CHANNEL

1шт.

27

S93266

CLAMP

2шт.

28

S235041

TUBE ASSY.,1.25" OD x 15.44, 0.58" L

TUBE - hydraulic (Used with 10' 5" dipperstick only)

2шт.

29

S7984

FITTING

CONNECTOR - (1-1/4" tube) 1-5/16" - 12 male x 1-5/8" - 12 male 37 degrees flared

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

30

S233818

TUBE ASSY.,1.25" OD x 4.69" L

TUBE - hydraulic

1шт.

31

S109311

RESTRICTOR

REGULATOR - flow

1шт.

32

131-491

NUT - self locking 7/16" NC

2шт.

33

S229986

HOSE ASSY.

HOSE - high pressure (Used with 12' 0" dipperstick only)

2шт.

34

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

8шт.

35

S231343

ADAPTER

PLATE - adapter

1шт.

36

S238598

CLAMP

- tube

1шт.
