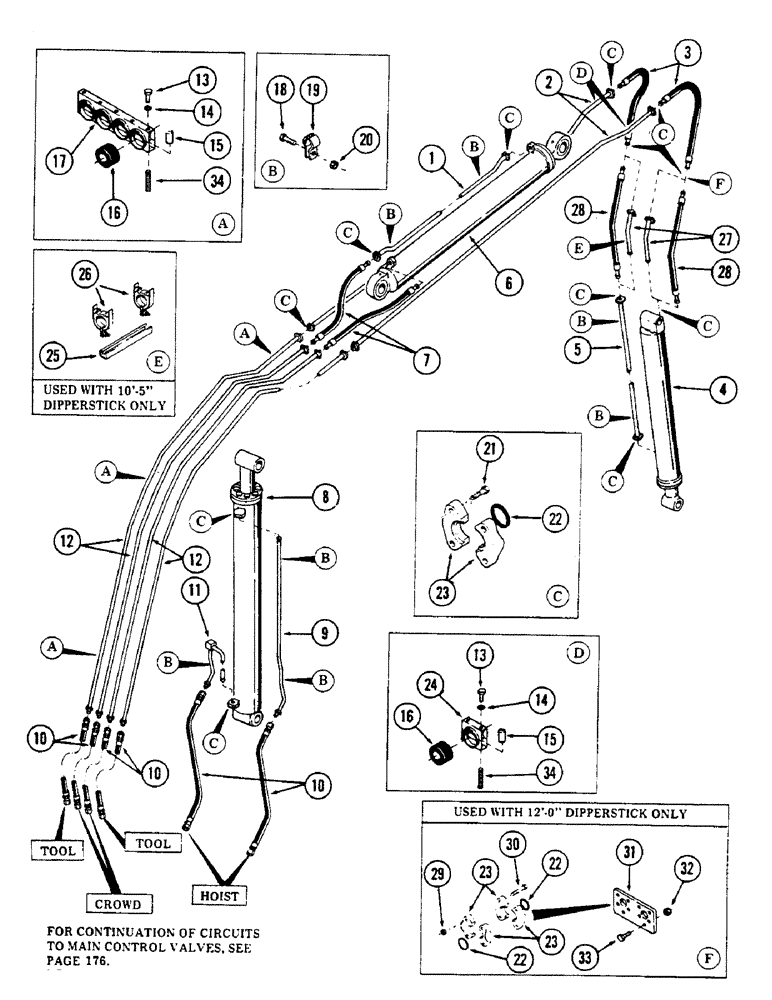

Запчасти Case 50 (178) - BOOM AND DIPPERSTICK TUBING, (USED ON UNITS W/ SN. 6279926-6280344)(SN. 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

1

S229982

TUBE ASSY.,1.25" OD x 52.83, 0.75" L

TUBE - hydraulic

1шт.

2

511790

BALL

TUBE - hydraulic (Supersedes S511054)

2шт.

3

S229987

HOSE ASSY.

HOSE - high pressure

2шт.

4

REF

INSTRUCTION

CYLINDER - tool (For breakdown, see figure 206)

1шт.

5

S229983

TUBE,1.25" OD x 41.61, 0.75" L

- hydraulic

1шт.

6

REF

INSTRUCTION

CYLINDER - crowd (For breakdown, see figure 202)

1шт.

7

S229986

HOSE ASSY.

HOSE - high pressure

2шт.

8

REF

INSTRUCTION

CYLINDER - hoist (For breakdown, see figure 204)

1шт.

9

S511049

TUBE - hydraulic 1.25" OD

1шт.

10

S233927

HOSE

- high pressure 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings) (Supersedes S8628)

6шт.

11

S513076

TUBE,1.25" OD x 14.81, 5.06" L

- hydraulic (Supersedes S231308)

1шт.

12

S610599

TUBE,1.25" OD x 99.13, 58.38" L

- hydraulic

4шт.

S111303

COLLAR

- (On tube)

8шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

S106647

TUBE NUT

NUT - 3/8" NC

1шт.

16

S106646

BUSHING

- split

1шт.

17

S106645

CLAMP

1шт.

18

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

19

S106606

CLAMP

1шт.

20

129-104

NUT,7/16"-14, G5

1шт.

21

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

22

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.750" OD

1шт.

23

A12301

CLAMP,Half

- half

1шт.

24

S106643

CLAMP

1шт.

25

S105626

CHANNEL

1шт.

26

S93266

CLAMP

2шт.

27

S235041

TUBE ASSY.,1.25" OD x 15.44, 0.58" L

TUBE - hydraulic (Used with 10' 5" dipperstick only)

2шт.

28

S229986

HOSE ASSY.

HOSE - high pressure (Used with 12' 0" dipperstick only)

2шт.

29

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 7/16" NC

1шт.

30

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

31

S231343

ADAPTER

PLATE - adapter

1шт.

32

131-491

NUT - self locking 7/16" NC

2шт.

33

113-358

BOLT,Hex, 7/16" - 14 x 1-5/8", Gr 5

CPSW - 7/16" NC x 1-5/8" gr 5

1шт.

34

S109217

STUD

1шт.
