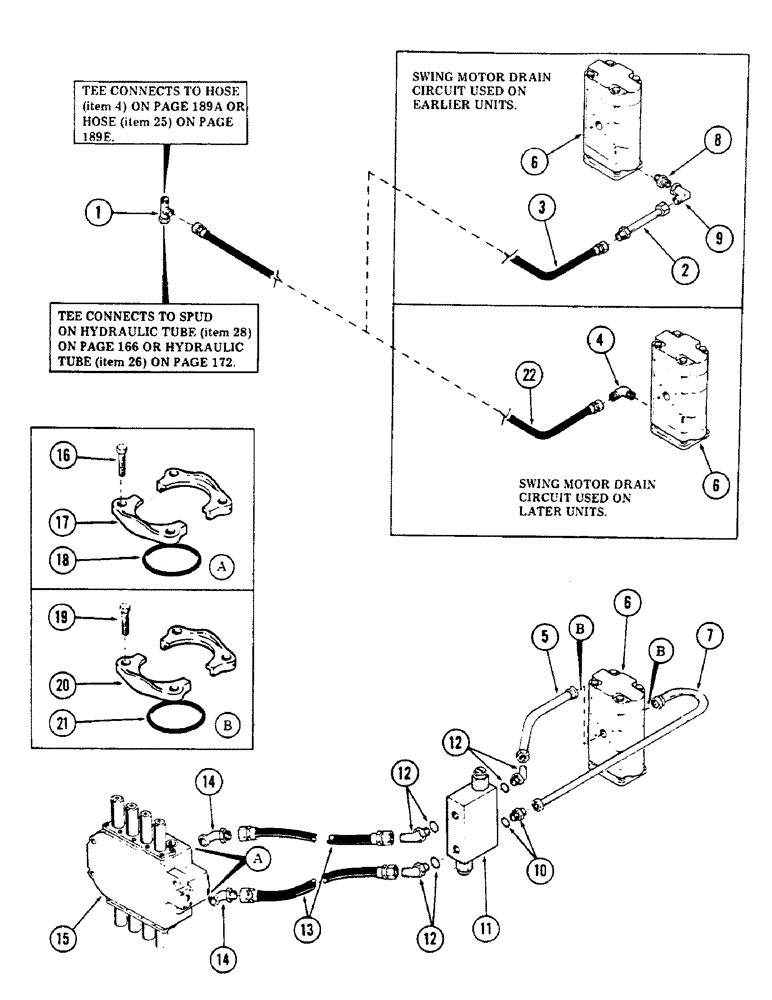

Запчасти Case 50 (174) - SWING MOTOR TUBING, (S/N 6279926 AND AFTER) (35) - HYDRAULIC SYSTEMS

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male 37 degrees flared

1шт.

2

S233313

TUBE ASSY.,0.375" OD x 3.3" L

TUBE - hydraulic (Supersedes S231177)

1шт.

3

S77121

HOSE

- high pressure 1/4" ID x 20" long (With 9/16" - 18 female pressed on couplings)

1шт.

4

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees (3/8" tube) 9/16" - 18 male x 1/4" NPT male 37 degrees flared

1шт.

5

S237290

TUBE,1.25" OD

- hydraulic (Supersedes S232077)

1шт.

ANOTHER TUBE USED ON UNITS WITH SERIAL NUMBER 6280345 AND AFTER IS S237290

1шт.

ANOTHER TUBE USED BETWEEN SERIAL NUMBER 6279926 THRU 6280344 IS S232077

1шт.

6

REF

INSTRUCTION

MOTOR - swing (For breakdown, see figures 232 or 234)

1шт.

7

S237289

TUBE,1.25" OD x 19.25" L

- hydraulic (Supersedes S231598)

1шт.

ANOTHER TUBE USED ON UNITS WITH SERIAL NUMBER 6280345 AND AFTER IS S237289

1шт.

ANOTHER TUBE USED BETWEEN SERIAL NUMBER 6279926 THRU 6280344 IS S231598

1шт.

8

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) 9/16" - 18 male x 1/4" NPT male 37 degrees flared

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degrees swivel (3/8" tube) 9/16" - 18 male x 9/16" - 18 female 37 degrees flared

1шт.

10

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 male 37 degrees flared

1шт.

11

REF

INSTRUCTION

VALVE - swing inline relief (For breakdown, see figure 236)

1шт.

12

S11257

FITTING

ELBOW - 45 degrees adjustable (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 male 37 degrees flared

3шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

3шт.

13

S401530

HOSE ASSY.

HOSE - high pressure 1" ID x 20" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

14

S232093

FITTING

TUBE - hydraulic

2шт.

15

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 262 or 263A)

2шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

17

A12306

FLANGE

CLAMP - half flange

4шт.

18

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O" RING - 1.296" ID x 1.562" OD

2шт.

19

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

20

A12301

CLAMP,Half

CLAMP - half flange

4шт.

21

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.750" OD

2шт.

22

S227395

HOSE

- high pressure 3/8" ID x 21" long (With 9/16" - 18 female pressed on couplings)

1шт.
