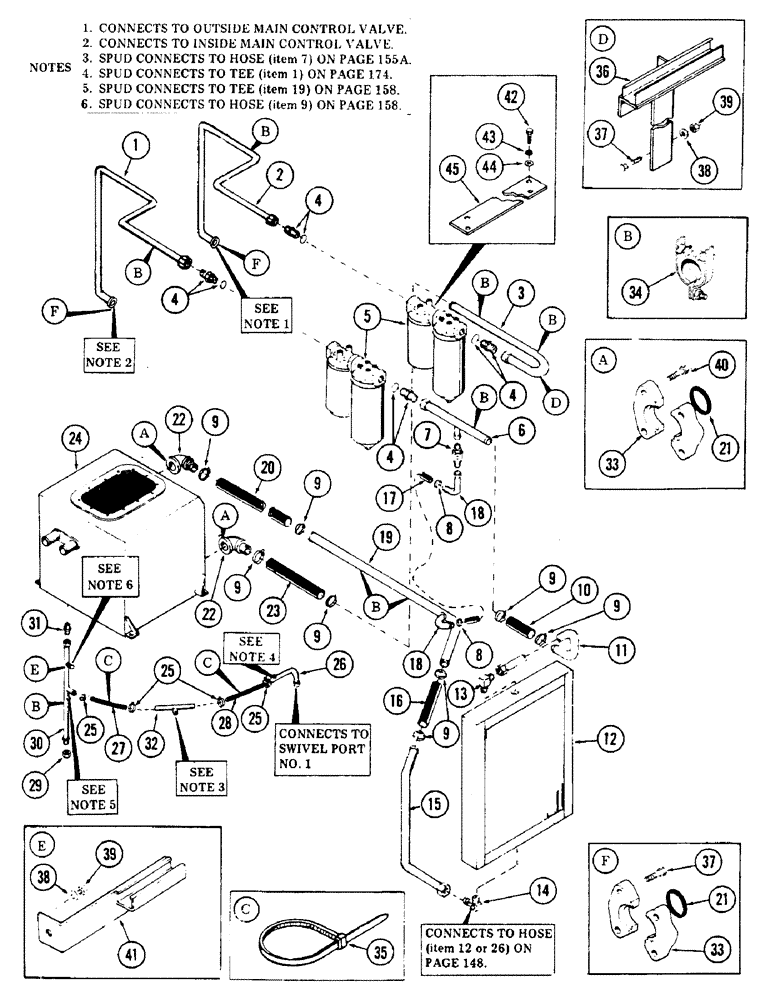

Запчасти Case 50 (172) - MAIN VALVES TO FILTERS TO TANK & COOLER HYDRAULICS(USED ON UNITS W/SN.6280345&AFTER)(SN.6279926&AFTE (35) - HYDRAULIC SYSTEMS

1

S514180

TUBE ASSY.,1.5" OD

TUBE - hydraulic

1шт.

2

S514181

TUBE ASSY.,1.5" OD

TUBE - hydraulic

1шт.

S614738

TUBE - hydraulic (Used with optional one spool leveler valve)

1шт.

3

S236426

TUBE - hydraulic 1.5" OD x 33.56, 14.06" L

1шт.

4

S7978

ROD, CONNECTING

CONNECTOR - (1-1/2" tube) 1-7/8" - 12 male x 1-7/8" - 12 male 37 degrees flared)

4шт.

S6077

RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O" RING

4шт.

5

REF

INSTRUCTION

FILTER - hydraulic oil (For breakdown, see figure 224)

2шт.

6

S234838

TUBE - hydraulic

1шт.

7

S105386

VALVE

- check

1шт.

8

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

9

S85429

CLAMP

- hose

1шт.

10

S114935

HOSE

- low pressure (Bulk) 1 piece 1-1/2" ID x 10" long (10")

1шт.

11

S237733

TUBE - hydraulic 1.5" OD

1шт.

12

REF

INSTRUCTION

COOLER - oil (See page 52 or 54 for cooler and related parts)

1шт.

13

218-489

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

- 90 degrees (1-1/4" tube) 1-5/8" - 12 male x 1-1/4" NPT male 37 degrees flared

1шт.

14

S216028

ELBOW - 90 degrees (1-1/4" tube) 1-5/8" - 12 male x 1-1/4" NPT male 37 degrees flared 1.25" OD x 58.95" L

1шт.

15

S234836

TUBE - hydraulic 1.5" OD

1шт.

16

S114935

HOSE

- low pressure (Bulk) 1 piece 1-1/2" ID x 19" long (19")

1шт.

17

S202585

HOSE - low pressure (Bulk) 1 piece 1-1/4" ID x 9" long (9")

1шт.

18

S215412

TUBE,1.25" OD x 3" L

- hydraulic

2шт.

19

S512420

LINE

TUBE - hydraulic

1шт.

20

S114935

HOSE

- low pressure (Bulk) 1 piece 1-1/2" ID x 15" long (15"), Includes: Ref. 21

1шт.

21

S6589

O-RING

"O" RING - 1.859" ID x 2.137" OD

4шт.

22

NLS

NO LONGER SERVICED

- 90 degrees

2шт.

23

S114935

HOSE

- low pressure (Bulk) 1 piece 1-1/2" ID x 8" long

8шт.

24

REF

INSTRUCTION

TANK - hydraulic (For breakdown, see figure 216)

1шт.

25

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

4шт.

26

S229693

TUBE,1" OD x 3, 3.75" L

- hydraulic

1шт.

27

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 25" long 1.00" ID Bulk, SAE 100R3

1шт.

28

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 47" long 1.00" ID Bulk, SAE 100R3

1шт.

29

218-760

CAP,37 Degree, 1 7/8"-12

- (1-1/2" tube) 1-7/8" - 12 female 37 degrees flared

1шт.

30

S238575

LINE

TUBE - hydraulic

1шт.

31

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

CONNECTOR - (1-1/2" tube) 1-7/8" - 12 male x 1-1/2" - 11-1/2 NPT male 37 degrees flared

1шт.

32

S238083

TUBE - hydraulic

1шт.

33

A14157

FLANGE

CLAMP - tube

1шт.

34

S98324

CLAMP

- tube

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

36

S234786

BRACKET

- filter mounting

2шт.

37

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

38

195-530

WASHER,7/16"

- flat 1/2"

9шт.

39

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC

5шт.

40

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

CPSW - 1/2" NC x 1-1/4" gr 5

8шт.

41

S235039

BRACKET

- clamp mounting

1шт.

42

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

44

195-104

WASHER,3/8"

- flat 3/8"

8шт.

45

S238226

PLATE

- filter mounting

2шт.
