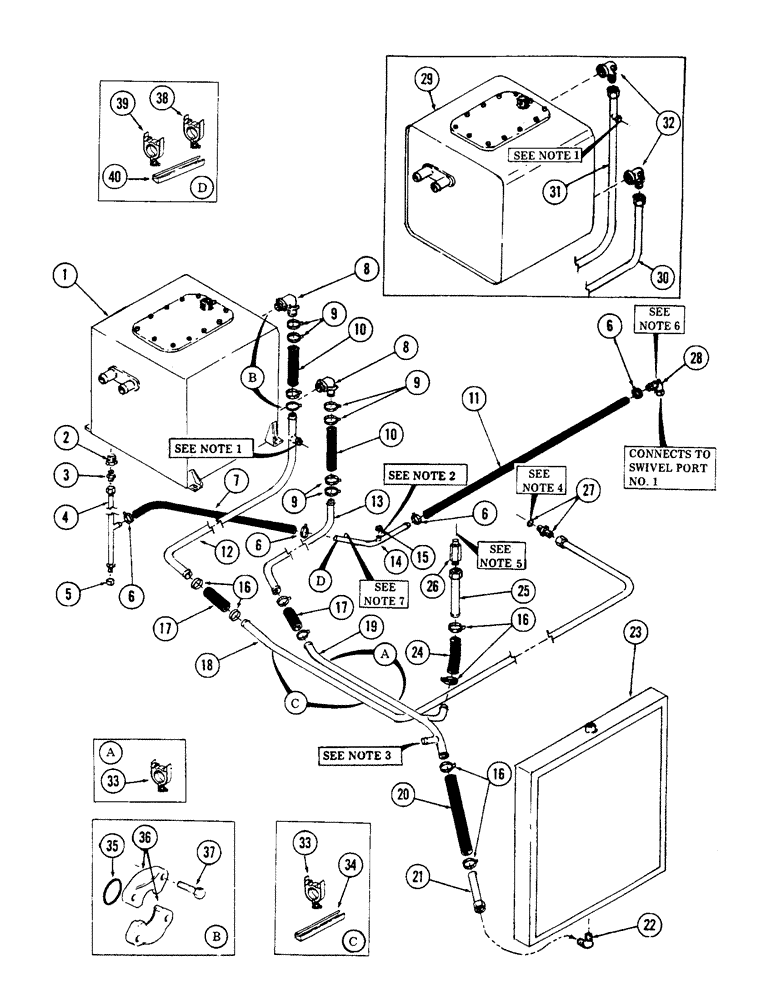

Запчасти Case 50 (166) - MAIN VALVES TO FILTERS TO RESERVOIR&COOLER TUBING (USED ON UNITS W/SN.6279926-6280344) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

TANK - hydraulic oil (For breakdown, see figure 216)

1шт.

2

221-613

REDUCER,Hex, 1 1/2" x 3/4" NPT

BUSHING - reducer 1-1/2" NPT male x 3/4" NPT female

1шт.

3

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - (1" tube) 1-5/16" - 12 male x 3/4" NPT male 37 degrees flared

1шт.

4

S229759

TUBE ASSY.

TUBE - hydraulic

1шт.

5

218-758

CAP,37 Degree, 1 5/16"-12

- (1" tube) 1-5/16" - 12 female 37 degrees flared

1шт.

6

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

4шт.

7

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 30" long 1.00" ID Bulk, SAE 100R3

1шт.

8

S236134

- 90 degrees

2шт.

9

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose (2 per hose end)

8шт.

10

S114935

HOSE

- low pressure (Bulk) 2 pieces 1-1/2" ID x 11" and 12" long (23")

1шт.

11

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 24" long 1.00" ID Bulk, SAE 100R3

1шт.

12

S236327

TUBE - hydraulic (Used with ref 10 only) 1.5" OD

1шт.

13

S236326

TUBE - hydraulic (Used with ref 10 only)

1шт.

14

S232106

TUBE - hydraulic 1" OD x 16.30, 5.55" L

1шт.

15

218-754

CAP,37 Degree, 9/16"-18

- (3/8" tube) 9/16" - 16 female (Used on units without optional fast hoist)

1шт.

16

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose (Used with refs 17, 20 and 24)

1шт.

17

S114935

HOSE

- low pressure (Bulk) 2 pieces 1-1/2" ID x 11" long (22")

1шт.

18

S232096

TUBE - hydraulic 1.5" OD x 34.56, 25.96" L

1шт.

19

S511378

TUBE - hydraulic (Used on units with Case engines)

1шт.

S511637

TUBE - hydraulic (Used on units with Detroit diesel engines)

1шт.

20

S114935

HOSE

- low pressure (Bulk) 1 pieces 1-1/2" ID x 18" long (18")

1шт.

21

S231138

TUBE - hydraulic 1.5" OD x 7.42, 0.99" L

1шт.

22

218-489

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

- 90 degrees (1-1/4" tube) 1-5/8" - 12 male x 1-1/4" NPT male

1шт.

23

REF

INSTRUCTION

COOLER - oil (See figure 52 or 54 for cooler and related parts)

1шт.

24

S202582

LINE

HOSE - low pressure (Bulk) 1 pieces 1-1/4" ID x 7" long (7")

1шт.

25

S232100

TUBE - hydraulic 1.25" OD x 10.06" L

1шт.

26

S105386

VALVE

- check

1шт.

27

S7978

ROD, CONNECTING

CONNECTOR - (1-1/2" tube) 1-7/8" - 12 male x 1-7/8" - 12 male 37 degrees flared

1шт.

S6077

RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O" RING - 1.720" ID x 1.956" OD

1шт.

28

S229693

TUBE,1" OD x 3, 3.75" L

- hydraulic

1шт.

29

REF

INSTRUCTION

TANK - hydraulic oil (For breakdown, see figure 214)

1шт.

30

S232079

TUBE - hydraulic (Used with ref 32 on old style oil tanks) 0.75 - 1.5" OD

1шт.

31

S232097

TUBE - hydraulic (Used with ref 32 on old style oil tanks) 1.5" OD

1шт.

32

218-520

ELBOW - 90 degrees (1-1/2" tube) 1-7/8" - 12 male x 1-1/2" NPT female 37 degrees flared (Used with refs 30 and 31 on old style oil tanks) 90º, 1 7/8"-12, 37º x 1 1/2"-11 1/2, Fem NPTF

2шт.

33

S98324

CLAMP

- tube

4шт.

34

S96249

CHANNEL

2шт.

35

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD

2шт.

36

A14157

FLANGE

CLAMP - flange half

4шт.

37

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

38

S91602

CLAMP

- tube

1шт.

39

S93266

CLAMP

- tube

1шт.

40

S105626

CHANNEL

1шт.
