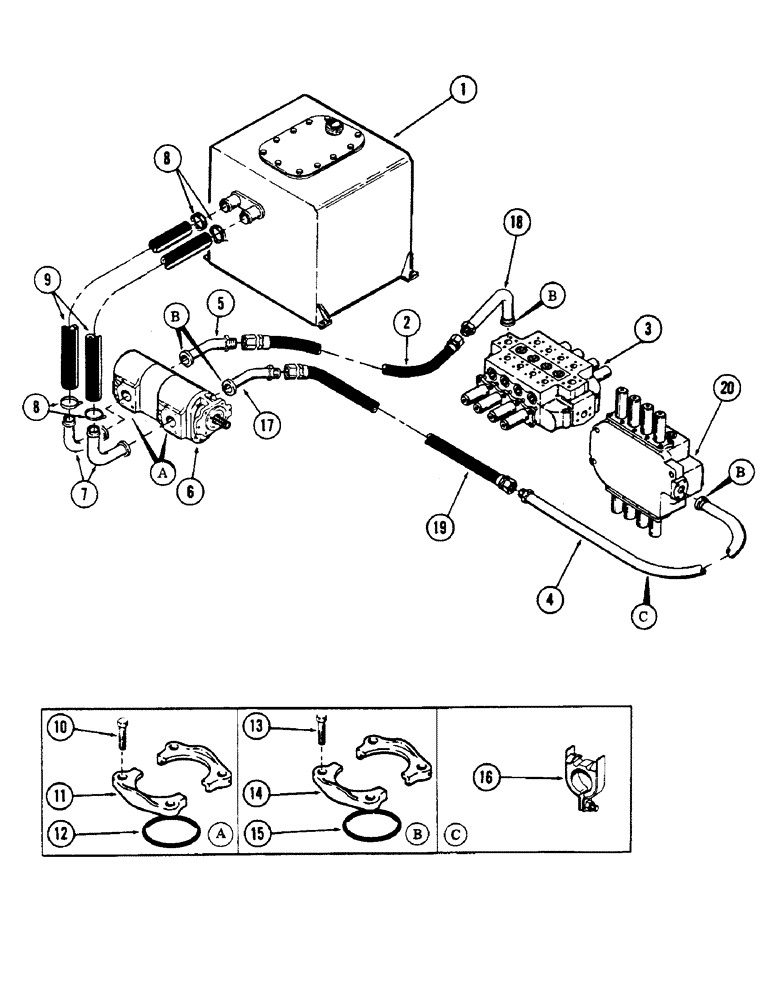

Запчасти Case 50 (164) - RESERVOIR TO PUMP TO VALVES TUBING (USED ON UNITS W/SN. 6280345 & AFTER) (SN.6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil (For breakdown, see figures 214 and 216)

1шт.

2

S8628

HOSE

- high pressure 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings)

1шт.

3

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 260)

1шт.

4

S236934

TUBE,1.25" OD x 5.06, 19.56" L

- hydraulic (Used with Case engines)

1шт.

S236428

TUBE,1.25" OD

- hydraulic (Used with Detroit diesel engines)

1шт.

5

S235919

ADAPTER

TUBE - hydraulic (Used with Case engines)

1шт.

S26936

TUBE

- hydraulic (Used with Detroit diesel engines)

1шт.

6

REF

INSTRUCTION

PUMP - main hydraulic (Used with Case engines) (For breakdown, see figure 226)

1шт.

REF

INSTRUCTION

PUMP - main hydraulic (Used with Detroit diesel engines) (For breakdown, see figure 228)

1шт.

7

S238509

TUBE,2" OD x 4.81, 8" L

- hydraulic

2шт.

8

S85340

CLAMP

- hose

4шт.

9

S202867

HOSE - low pressure (Bulk) 2 pieces 2" ID x 40" long (40")

1шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

11

L14386

CLAMP

- half flange

4шт.

12

S6322

RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

"O" RING - 2.734" ID x 3.000" OD

2шт.

13

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

14

A12301

CLAMP,Half

CLAMP - half flange

4шт.

15

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.762" OD

4шт.

16

S93266

CLAMP

- tube

2шт.

17

S26936

TUBE

- hydraulic

1шт.

18

S236427

TUBE,1.25" OD x 8.06, 5.56" L

- hydraulic

1шт.

19

S235936

HOSE

- high pressure 1" ID x 49" long (With 1-5/16" - 12 female pressed on couplings) (Used with Case engines)

1шт.

S8628

HOSE

- high pressure 1" ID x 36" long (With 1-5/16" female pressed on couplings) (Used with Detroit diesel engines)

1шт.

20

REF

INSTRUCTION

VALVE - 4-spool main control (For breakdown, see figure 263A)

1шт.
