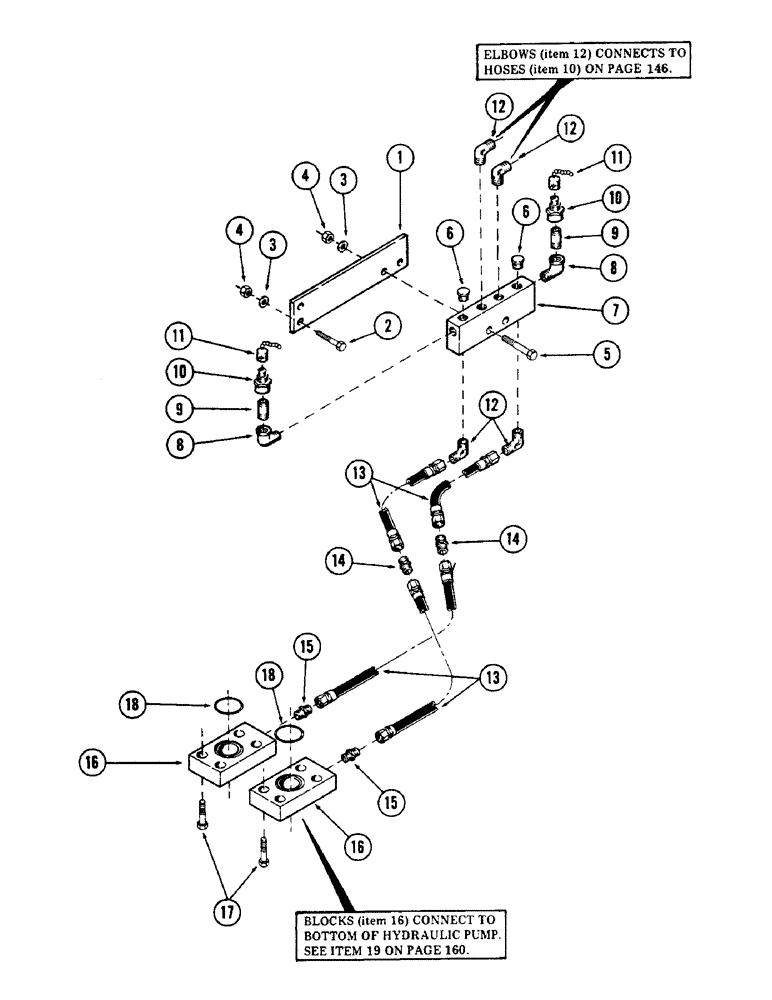

Запчасти Case 50 (162) - RESERVOIR TO PUMP TO VALVES TUBING (USED ON UNITS W/ SN. 6279926-6280344) (SN.6279926&AFTER) (35) - HYDRAULIC SYSTEMS

1

S111201

BRACKET

1шт.

2

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

2шт.

3

195-104

WASHER,3/8"

- flat 3/8"

4шт.

4

131-70

NUT,1/2"-13, GB

NUT - self locking 3/8" NC

4шт.

5

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

6

221-662

PLUG,Hex Hd, 1/4"-18

- pipe 1/4" NPT male

2шт.

7

S234190

BLOCK - pressure tap

1шт.

8

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

2шт.

9

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT male

2шт.

10

S206607

DISC

ONNECT - quick

2шт.

11

S206608

CAP

- dust

2шт.

12

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees (3/8" tube) 9/16" - 18 male x 1/4" NPT male 37 degrees flared

4шт.

13

S99421

HOSE ASSY.

HOSE - high pressure 3/8" ID x 23" long (With 9/16" - 18 female pressed on couplings)

4шт.

14

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (3/8" tube) 9/16" - 18 male x 9/16" - 18 male 37 degrees flared

2шт.

15

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) 9/16" - 18 male x 1/4" NPT male 37 degrees flared

2шт.

16

S234191

BLOCK - pump adapter (See ref 19 on figure 160)

2шт.

17

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

CPSW - 1/4" NC x 2" gr 5

8шт.

18

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.762" OD

2шт.
